VISHAY . DG303BDJ-E3

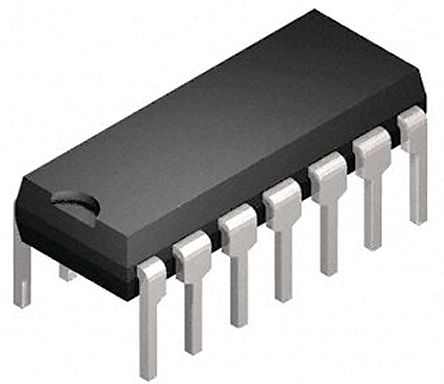

VISHAY SILICONIX DG303BDJ-E3 IC, ANALOG SWITCH, QUAD, DPST, DIP-14

ANALOG SWITCH, QUAD, DPST, DIP-14; No. of Channels:4Channels; Analog Switch Type:DPST; On State Resistance Max:50ohm; Supply Voltage Range:± 15V; Analog Switch Case:DIP; No. of Pins:14Pins; Operating Temperature Min:-40°C; MSL:- RoHS Compliant: Yes

DG303B Series SPST 15 V 30 Ohm Through Hole CMOS Analog Switch - PDIP-14 ***** For more information refer to the specification sheet located in the 'Downloads' section below the image *****

EU RoHS: Compliant ECCN (US): EAR99 Part Status: LTB HTS: 8542.39.00.01 Automotive: No PPAP: No Type: Analog Switch Configuration: Dual SPDT Switch Architecture: SPDT Number of Channels per Chip: 2 Number of Inputs per Chip: 4 Number of Outputs per Chip: 4 Chip Enable Signals: Yes Polarity: Non-Inverting Maximum Turn-On Time (ns): 150(Typ)@±15V Maximum Turn-Off Time (ns): 130(Typ)@±15V Input Signal Type: Single Output Signal Type: Single Minimum Single Supply Voltage (V): 13 Typical Single Supply Voltage (V): 28|24|18|15 Maximum Single Supply Voltage (V): 36 Minimum Dual Supply Voltage (V): ±7 Typical Dual Supply Voltage (V): ±9|±18|±15|±12 Maximum Dual Supply Voltage (V): ±22 Typical Supply Current (mA): 0.23@15V/-0.000001@-15V Maximum Supply Current (mA): 1@15V/-0.1@-15V Maximum High Level Output Current (mA): 100 Maximum On Resistance (Ohm): 50@±15V Maximum On Resistance Range (Ohm): 45 to 60 Power Supply Type: Single|Dual Maximum Power Dissipation (mW): 470 Minimum Operating Temperature (°C): -40 Maximum Operating Temperature (°C): 85 Supplier Package: PDIP Pin Count: 14 Standard Package Name: DIP Mounting: Through Hole PCB changed: 14 Lead Shape: Through Hole
