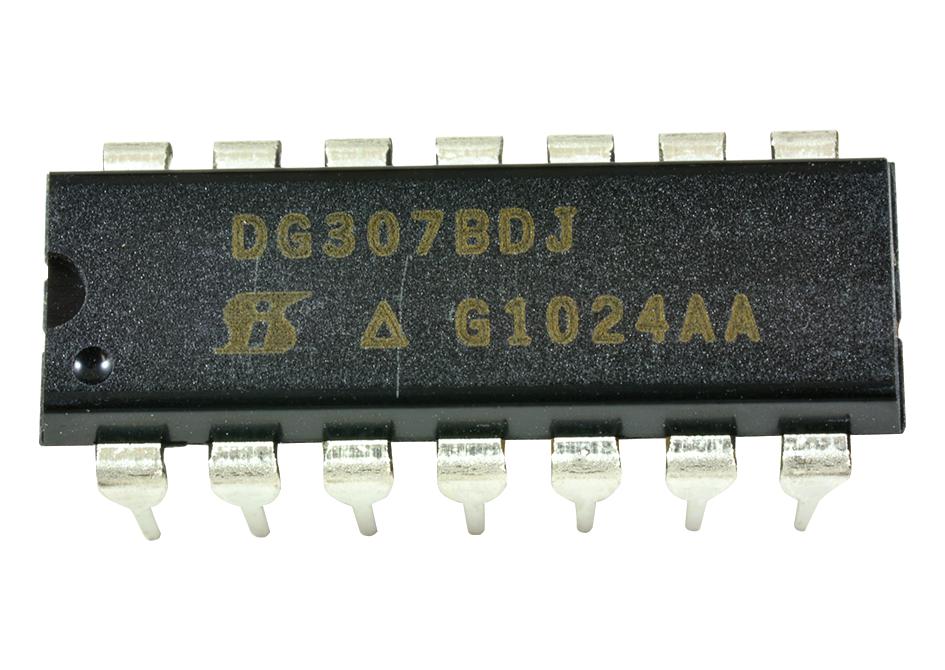

Vishay Analog Switch, Quad, Spdt, Dip-14 - DG307BDJ-E3

EU RoHS: Compliant ECCN (US): EAR99 Part Status: LTB HTS: 8542.39.00.01 Automotive: No PPAP: No Type: Analog Switch Configuration: Dual SPDT Switch Architecture: SPDT Number of Channels per Chip: 2 Number of Inputs per Chip: 4 Number of Outputs per Chip: 4 Chip Enable Signals: Yes Polarity: Non-Inverting Maximum Turn-On Time (ns): 110(Typ)@±15V Maximum Turn-Off Time (ns): 70(Typ)@±15V Input Signal Type: Single Output Signal Type: Single Minimum Single Supply Voltage (V): 13 Typical Single Supply Voltage (V): 15|18|24|28 Maximum Single Supply Voltage (V): 36 Minimum Dual Supply Voltage (V): ±7 Typical Dual Supply Voltage (V): ±9|±12|±15|±18 Maximum Dual Supply Voltage (V): ±22 Typical Supply Current (mA): ±0.000001@±15V Maximum Supply Current (mA): ±0.1@±15V Maximum High Level Output Current (mA): 100 Maximum On Resistance (Ohm): 50@±15V Maximum On Resistance Range (Ohm): 45 to 60 Power Supply Type: Single|Dual Maximum Power Dissipation (mW): 470 Minimum Operating Temperature (°C): -40 Maximum Operating Temperature (°C): 85 Supplier Package: PDIP Pin Count: 14 Standard Package Name: DIP Mounting: Through Hole Package Height: 3.81(Max) Package Length: 19.3(Max) Package Width: 7.11(Max) PCB changed: 14 Lead Shape: Through Hole
