Seco-Larm Product Range:sm Series - SM-226L-3Q

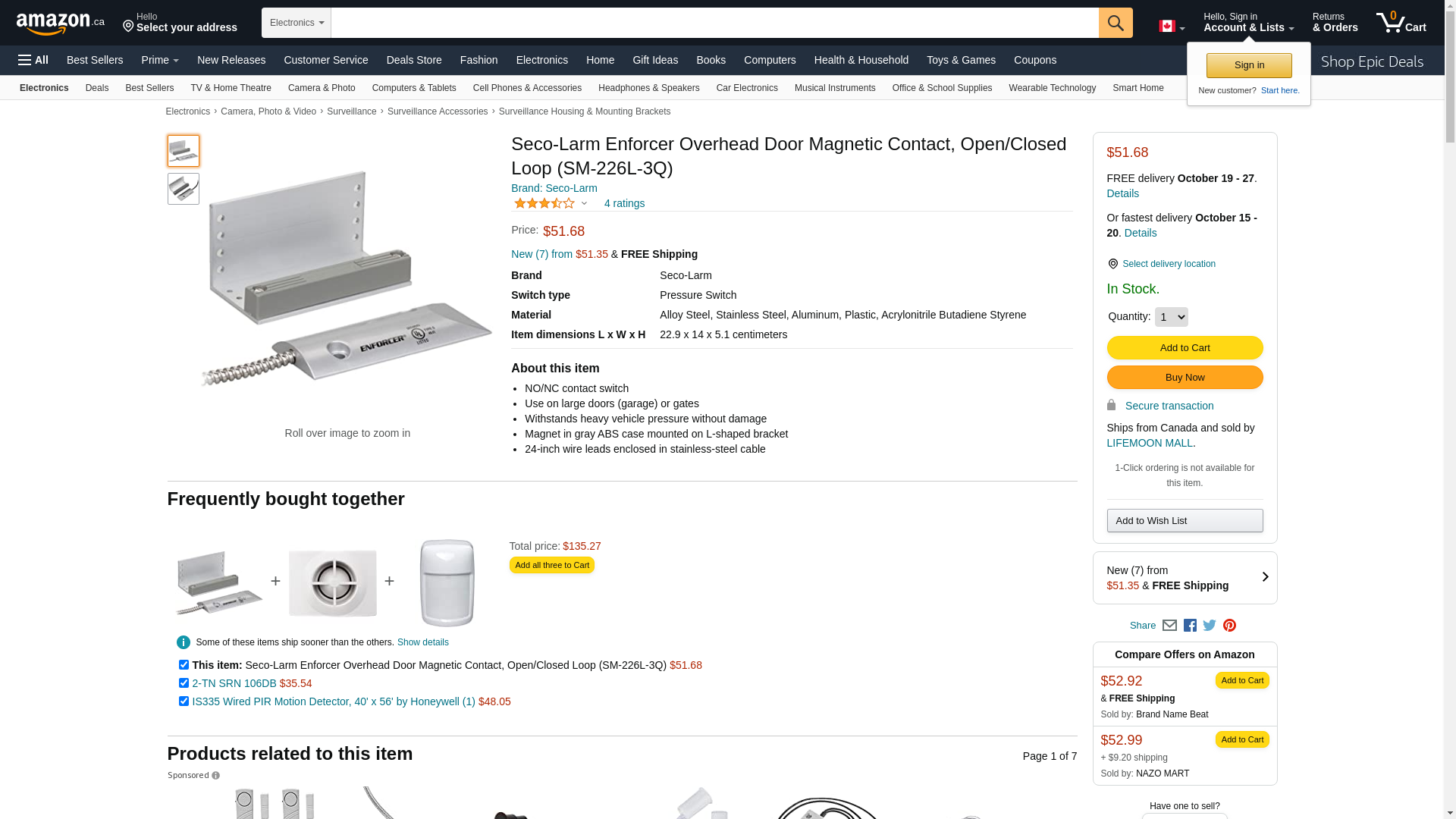

Seco-Larm SM-226L-3Q Overhead Door-Mount Magnetic Contact with three wires for N.O. or N.C. applications. Magnet mounted on "L" bracket, contact in die-cast aluminum housing with pre-wired 24" leads, flexible stainless-steel cable. 23/4" Gap.

Switch contained in low-profile cast aluminum housing anchored directly to the floor and curved, so heavy vehicles can cross over without damaging it. Magnet in gray ABS case mounted on L-shaped bracket. 24" (61cm) wire leads enclosed in stainless-steel cable. SM-226LQ -- For closed loop circuits. SM-226L-3Q -- NO/NC contact. GAP: 2-3/4" (70mm). Dimensions: Switch — 4-3/8"x1-3/4"x7/16" (111x44x11 mm)

Seco-Larm SM-226L-3Q Overhead Door Magnetic Contact (Pack of 2), 2-3/4" (70mm) Gap, Open/Closed Loop (3 Wires), 24" (61cm) Armored Wire Leads, Adjustable to Fit Most Door-channel Widths, Weatherproof<br><br> Key Features<br> - 2-3/4" (70mm) Gap for overhead doors<br> - Adjustable to fit most door-channel widths<br> - 24" (61cm) Armored wire leads<br> - Reed switch has deactivated rhodium on gold underplating<br> - For open or closed-loop circuits<br> - Weatherproof IP66 – Epoxy sealed for weatherproof installation<br> - Mounting bracket included<br><br> Specifications<br> - IP Rating: Weatherproof IP66 – Epoxy sealed<br> - Operating Voltage: 12~24 VDC<br> - Loop Type: Open/Closed loop<br> - Electrical Configuration: SPDT<br> - Operation Gap: 2-3/4" (70mm)<br> - Material – Magnet: ABS plastic on L-bracket<br> - Material – Switch: Heavy-duty cast-aluminum case<br> - Material – Terminals: 24" (61cm) armored leads<br> - Contacts: Deactivated rhodium on gold under-plating<br> - Contact Rating: 0.2A@10VDC (max), 3W (max)<br> - Operating Temperature: -15º~+160ºF (-25º~70ºC)<br> - Switch Cycles: 50 Million (0.1mA@5VDC)<br> - Switch Dimensions: 4-5/16" x 1-3/4" x 7/16" (110 x 44 x 11mm)<br> - Magnet Dimensions: 3-15/16" x 2" x 2" (100 x 51 x 51mm)<br> - Magnet Type: Alnico 5<br><br>

Seco-Larm SM-226L-3Q Overhead Door Magnetic Contact (Pack of 3), 2-3/4" (70mm) Gap, Open/Closed Loop (3 Wires), 24" (61cm) Armored Wire Leads, Adjustable to Fit Most Door-channel Widths, Weatherproof<br><br> Key Features<br> - 2-3/4" (70mm) Gap for overhead doors<br> - Adjustable to fit most door-channel widths<br> - 24" (61cm) Armored wire leads<br> - Reed switch has deactivated rhodium on gold underplating<br> - For open or closed-loop circuits<br> - Weatherproof IP66 – Epoxy sealed for weatherproof installation<br> - Mounting bracket included<br><br> Specifications<br> - IP Rating: Weatherproof IP66 – Epoxy sealed<br> - Operating Voltage: 12~24 VDC<br> - Loop Type: Open/Closed loop<br> - Electrical Configuration: SPDT<br> - Operation Gap: 2-3/4" (70mm)<br> - Material – Magnet: ABS plastic on L-bracket<br> - Material – Switch: Heavy-duty cast-aluminum case<br> - Material – Terminals: 24" (61cm) armored leads<br> - Contacts: Deactivated rhodium on gold under-plating<br> - Contact Rating: 0.2A@10VDC (max), 3W (max)<br> - Operating Temperature: -15º~+160ºF (-25º~70ºC)<br> - Switch Cycles: 50 Million (0.1mA@5VDC)<br> - Switch Dimensions: 4-5/16" x 1-3/4" x 7/16" (110 x 44 x 11mm)<br> - Magnet Dimensions: 3-15/16" x 2" x 2" (100 x 51 x 51mm)<br> - Magnet Type: Alnico 5<br><br>

Seco-Larm SM-226L-3Q Overhead Door Magnetic Contact (Pack of 4), 2-3/4" (70mm) Gap, Open/Closed Loop (3 Wires), 24" (61cm) Armored Wire Leads, Adjustable to Fit Most Door-channel Widths, Weatherproof<br><br> Key Features<br> - 2-3/4" (70mm) Gap for overhead doors<br> - Adjustable to fit most door-channel widths<br> - 24" (61cm) Armored wire leads<br> - Reed switch has deactivated rhodium on gold underplating<br> - For open or closed-loop circuits<br> - Weatherproof IP66 – Epoxy sealed for weatherproof installation<br> - Mounting bracket included<br><br> Specifications<br> - IP Rating: Weatherproof IP66 – Epoxy sealed<br> - Operating Voltage: 12~24 VDC<br> - Loop Type: Open/Closed loop<br> - Electrical Configuration: SPDT<br> - Operation Gap: 2-3/4" (70mm)<br> - Material – Magnet: ABS plastic on L-bracket<br> - Material – Switch: Heavy-duty cast-aluminum case<br> - Material – Terminals: 24" (61cm) armored leads<br> - Contacts: Deactivated rhodium on gold under-plating<br> - Contact Rating: 0.2A@10VDC (max), 3W (max)<br> - Operating Temperature: -15º~+160ºF (-25º~70ºC)<br> - Switch Cycles: 50 Million (0.1mA@5VDC)<br> - Switch Dimensions: 4-5/16" x 1-3/4" x 7/16" (110 x 44 x 11mm)<br> - Magnet Dimensions: 3-15/16" x 2" x 2" (100 x 51 x 51mm)<br> - Magnet Type: Alnico 5<br><br>

Switch contained in low-profile cast aluminum housing anchored directly to the floor and curved, so heavy vehicles can cross over without damaging it. Magnet in gray ABS case mounted on L-shaped bracket. 24" (61cm) wire leads enclosed in stainless-steel cable. SM-226LQ -- For closed loop circuits. SM-226L-3Q -- NO/NC contact. GAP: 2-3/4" (70mm). Dimensions: Switch — 4-3/8"x1-3/4"x7/16" (111x44x11 mm)
