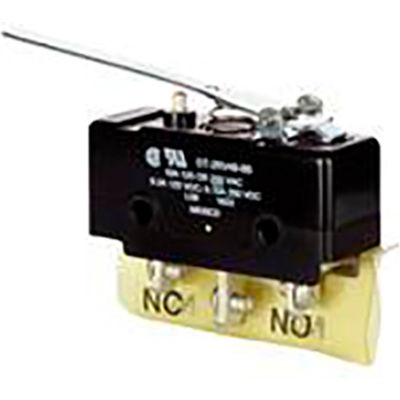

Honeywell Microswitch, Straight Lever, Dpdt, 10A, 250V - DT-2RV49-B6

Product Overview The DT-2RV49-B6 is a MICRO SWITCH Snap-action Switch with straight lever actuator, screw termination and two independent single-pole double-throw circuits in one housing actuated by one actuator. The DPDT contact configuration provides a contact for the control circuit and a different contact for the signal or auxiliary circuit. The terminals are separated by a non-conductive shield to reduce shorting. It is used for precision on/off applications, irrigation systems, semi-trailer trucks, timing devices, office equipment, manually operated devices and valves. Mounting interchangeability with type Z switches Temperature tolerance to 82°C Design permits several wiring combinations Power duty control Applications Communications & Networking, Agriculture, Medical, Test & Measurement, HVAC This listing is for Pack of 200. Operating Force Max: 3.97 productTraceability: No rohsCompliant: Y-EX Microswitch Actuator: Straight Lever distributorStatus: AUTHORIZED Product Range: - Contact Voltage AC Nom: 250 Switch Terminals: Screw Microswitch Type: Standard hazardous: false Contact Current Max: 10 rohsPhthalatesCompliant: YES usEccn: EAR99 Contact Configuration: DPDT SVHC: No SVHC (07-Jul-2017)

MICRO SWITCH# Special Application Precision Switches
