Omron Automation . E2EX10D1M1G

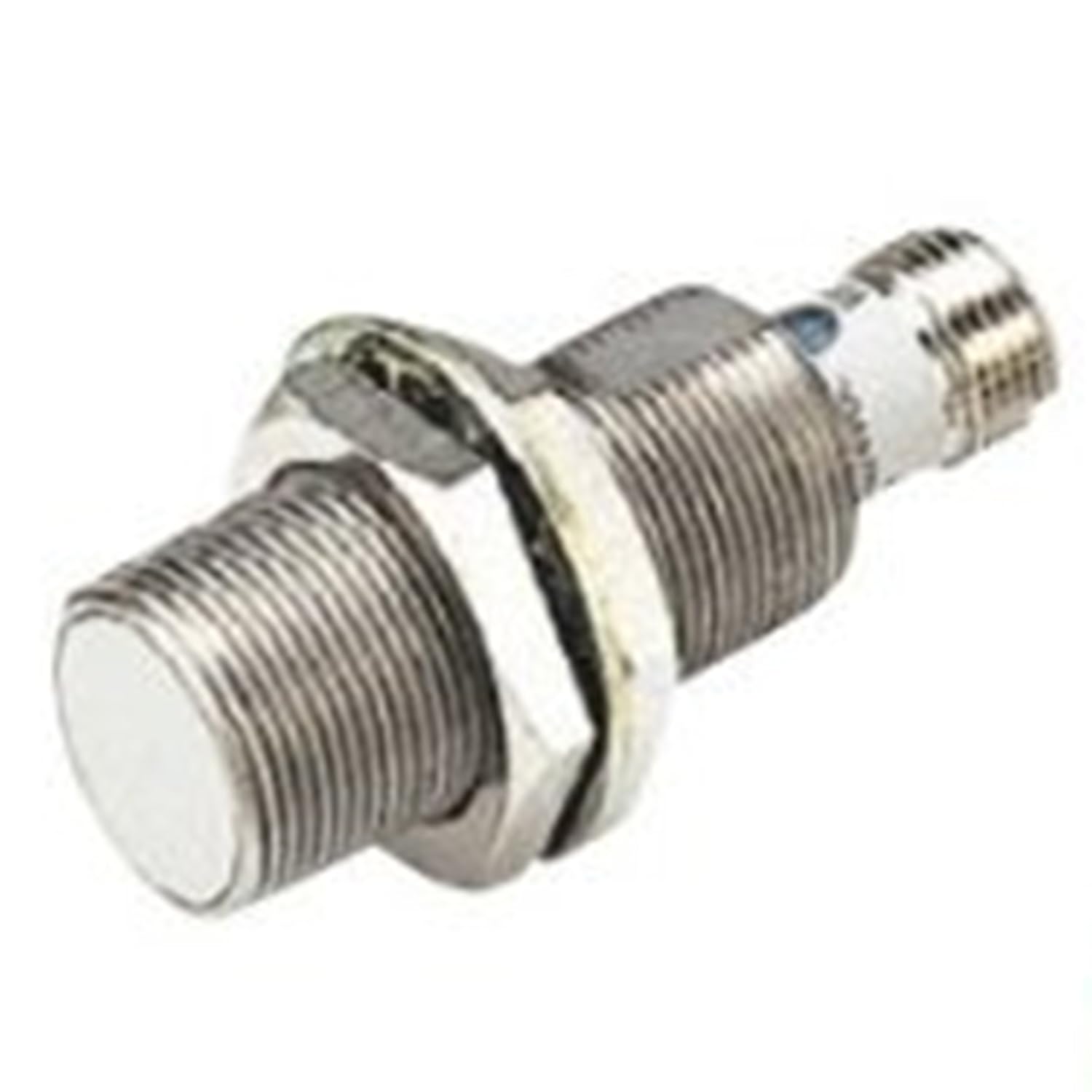

Omron E2e-X10d1-M1g Proximity Sensor 12-24Vdc 4P Connectordetecting Distance: 10Mm

[Sensing head size] M30<br> [Type] Cylinder type<br>Shielded<br> [Sensing distance] 10 mm +/-10%<br> [Setting distance] 0 to 8 mm<br> [Differential distance] 10% max. of sensing distance<br> [Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)<br> [Standard sensing object] Iron 30 x 30 x 1 mm<br> [Response frequency] 0.4 kHz (Average value)<br> [Power source] DC 2-wire models<br> [Power supply voltage] 12 to 24 VDC (ripple(p-p) 10% max.)<br> [Operating voltage range] 12 to 24 VDC (Used as UL-certified Models)<br>10 to 30 VDC<br> [Leakage current] 0.8 mA<br> [Control output (Switching capacity)] 3 to 100 mA<br> [Control output (Residual voltage)] 3 V (Load current 100 mA with cable length of 2 m)<br> [Indicator] Operation indicator (red), Operation setting indicator (green)<br> [Operation mode] NO<br> [Protective circuit] Output short-cut protection, Surge suppressor<br> [Temperature influence] +/-10% max. of sensing distance in temperature range of -25 to +70 deg.C<br>(As the basis for sensing distance of 23 deg.C)<br> [Voltage influence] +/-1% max. of sensing distance in rated voltage range +/-15%.<br>(As the basis for sensing distance at standard power voltage)<br> [Insulation resistance] Between charged parts and the case: 50 M Ohm min. at 500 VDC<br> [Dielectric strength] Between charged parts and the case: 1,000 VAC 50/60 Hz for 1 min<br> [Vibration resistance] 10 to 55 Hz, 1.5-mm double amplitude each in X, Y, and Z directions for 2 h<br> [Shock resistance] 1000 m/s**2 for 10 times each in X, Y, and Z directions<br> [Degree of protection] IEC: IP67<br> [Connection method] M12 connector models (IEC pin arrangement)<br> [Weight (Packed state)] approx. 90 g<br> [Material] Case: Brass nickel plating<br>Sensing surface: Polybutylene terephthalate (PBT)<br>Clamping nuts: Brass nickel plating<br>Toothed washer: Iron zinc plating<br> [Accessories] Instruction manual<br><br><br>1
