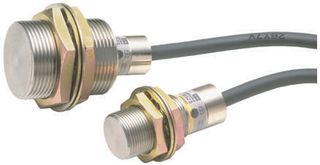

Omron Automation . E2EX18ME1

Proximity Sensor Inductive NO NPN 1mm 10V to 30V 4-Pin

[Cylinder type sensing head size] M30 <br>[Type] Unshielded <br>[Sensing method] Inductive type <br>[Sensing distance] 18mm -10% to +10% <br>[Setting distance] 0 to 14 mm <br>[Differential distance] 10% Max. of sensing distance <br>[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.) <br>[Standard sensing object] Iron 54*54*1mm <br>[Response frequency] DC: 0.1 kHz (average) <br>[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max. <br>[Operating voltage range] 10 to 40 VDC <br>[Current consumption] 13 mA Max. <br>[Control output (Output type)] NPN voltage-current output <br>[Control outpu (Switching capacity)] 0 to 200mA <br>[Indicator] Operation indicator(red) <br>[Operation mode] NO <br> [Protective circuit] Surge suppressor,Output short-circuit protection,Power supply reverse polarity protection <br> [Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage) <br>[Insulation resistance] 50 M OHM Min. at 500VDC between charged parts and the case <br>[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case <br>[Degree of protection] IEC60529: IP67,Company standard: Oil-proof <br>[Applicable standard (EC Directive (Low Voltage Directive))] EN60947-1,EN60947-5-2 <br>[Applicable standard (EC Directive (EMC))] EMI: EN60947-5-2,Emission Enclosure: CISPR11 Group 1 class A,EMS: EN60947-5-2,Immunity ESD: IEC61000-4-2,Immunity RF-interference: IEC61000-4-3,Immunity Conducted Disturbance: IEC61000-4-6,Immunity Burst: IEC61000-4-4,CE marking: Equipped <br> [Applicable standard (CCC mark)] Not equipped <br> [Connection method]?Pre-wired?models(Cable length: 2m) <br>[Weight (Packed state)] approx. 195 g<br><br><br>(1)
