Hubbell Wiring Devices Connector, Power Entry, Plug, 20A - HBL5364VY

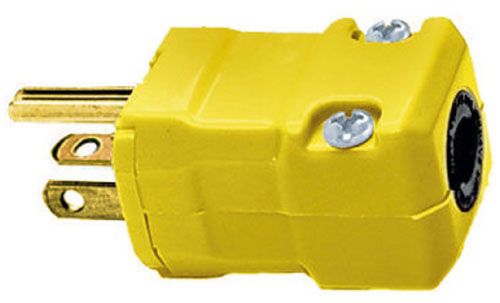

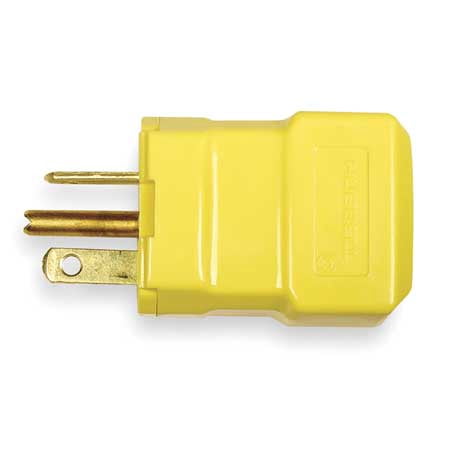

Product Overview The HBL5364VY is a 2-pole 3-wire NEMA 5-20P grounding Valise Plug with brass blades and yellow nylon housing. The straight blade device features hinged one piece body design for easy assembly and assembly screws are captive and will not fall out while wiring. It accepts #18 to #12AWG stranded copper wire only and terminals identified in accordance with UL 498. Powerful, offsetting cord grips clamp on individual conductors IP20 Protection rating 2000V Minimum dielectric voltage withstand Applications Power Management This listing is for Each. Brand Hubbell Wiring Device - Kellems Sub Brand Straight Blade Devices Country of Origin United States Made in USA Yes Amperage Rating 20 Application Industrial/Commercial Grade Color Yellow Connection Terminal Screws Material Polycarbonate Mounting Cord NEMA Rating 5 Number of Poles 2 Number of Wires 3-Wire Phase 1 Special Features Standard Product Standard CSA Certified to C22.2 No 42 File 280C;NEMA WD-6 Compliant;UL Listed to UL498 File E1706 GTIN 00783585013169 Item Type Plugs Size 1.87 in x 1.25 in x 1.87 in Environmental Conditions Indoor Dry unless protected by additional means Voltage Rating 125 Wattage 2000 Wire Size #18 AWG to #12 AWG Cross Reference Products 520PV
