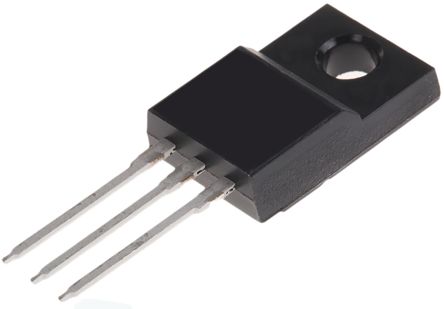

Vishay Mosfet, P-Ch, 60V, 5.3A, To-220 Rohs Compliant: Yes - IRFI9Z14GPBF

EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active HTS: 8541.29.00.95 Automotive: No PPAP: No Product Category: Power MOSFET Configuration: Single Channel Mode: Enhancement Channel Type: P Number of Elements per Chip: 1 Maximum Drain Source Voltage (V): 60 Maximum Gate Source Voltage (V): ±20 Maximum Gate Threshold Voltage (V): 4 Maximum Continuous Drain Current (A): 5.3 Maximum Drain Source Resistance (mOhm): 500@10V Typical Gate Charge @ Vgs (nC): 12(Max)@10V Typical Gate Charge @ 10V (nC): 12(Max) Typical Gate to Drain Charge (nC): 5.1(Max) Typical Gate to Source Charge (nC): 3.8(Max) Typical Reverse Recovery Charge (nC): 96 Typical Input Capacitance @ Vds (pF): 270@25V Typical Output Capacitance (pF): 170 Maximum Power Dissipation (mW): 27000 Typical Fall Time (ns): 31 Typical Rise Time (ns): 63 Typical Turn-Off Delay Time (ns): 9.6 Typical Turn-On Delay Time (ns): 11 Minimum Operating Temperature (°C): -55 Maximum Operating Temperature (°C): 175 Supplier Package: TO-220 Full-Pak Pin Count: 3 Standard Package Name: TO-220 Mounting: Through Hole Package Height: 16.12(Max) Package Length: 10.63(Max) Package Width: 4.83(Max) PCB changed: 3 Tab: Tab Lead Shape: Through Hole
