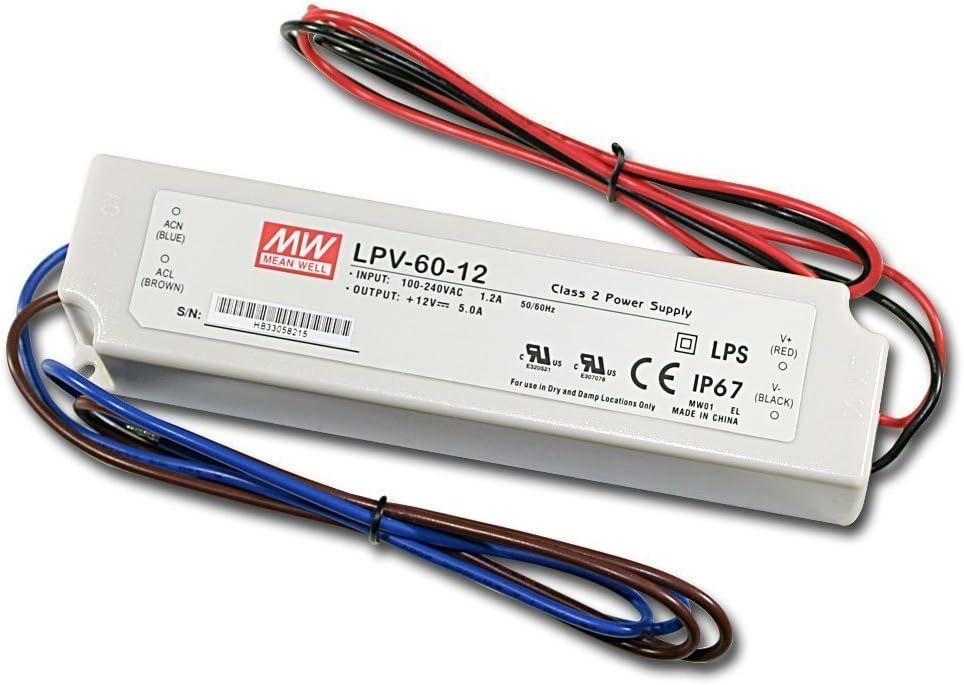

MEAN WELL . LPV-60-12

NEW Mean Well LPV-60-12 Class 2 Power Supply 100-240VAC 1.2A 50/60Hz

Features : 1. Constant voltage design 2. Universal AC input / Full range 3. Withstand 3ooVAC surge input for 5 seconds 4. Protections : short circuit /overload / Over voltage 5. Fully encapsulated with IP67 level 6. Fully isolated plastic case 7. Cooling by free air convection 8. Class two power unit, no FG 9. Class 2 power unit 10. Pass LPS 11. Suitable for LED lighting and moving sign applications 12. 100% full load burn-in test 13. Low cost / High reliability

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

The LPV-60 series Suitable for Indoor/outdoor, LED/lighting/light box/light strip/lighting, billboard, surveillance, Interior decoration lighting, track light/panel light/soft light strip, aquarium lighting and circulation system, freezer lighting Features : Constant voltage design Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Over load / Over voltage Cooling by free air convection Fully encapsulated with IP67 level Fully isolated plastic case Bulb Voltage：24 volts Item Weight：‎14.1 ounces Product Dimensions：‎6.4 x 1.7 x 1.3 inches Class ? power unit, no FG Class 2 power unit Pass LPS Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices) 100% full load burn-in test Low cost, high reliability 2 years warranty

Model：LPV-60-12<br>Output DC Voltage:12V<br>Output Rated Current:5A<br>Output Current Range:0～5A<br>Output Rated Power:60W<br>Output Ripple And Noise:120mVp-p<br>Output voltage accuracy:±5.0%<br>Output linearity adjustment rate:±1.0%<br>Load Regulation:±2.0%

Model：LPV-60-12 <br> Output DC Voltage:12V<br> Output Rated Current:5A<br> Output Current Range:0～5A<br> Output Rated Power:60W <br> Output Ripple And Noise:120mVp-p<br> Output voltage accuracy:±5.0%<br> Output linearity adjustment rate:±1.0%<br> Load Regulation:±2.0%<br>

LPV-60-12 MEANWELL Power Supply 12V 5A

Power supply for all kinds of LED productions, provide a wide application. </br> The power supply could withstand instant 300VAC voltage for 5 seconds.</br> Hiccup overload protection mode, automatically recover after fault condition is removed. </br> Free air cooling system, release no hazard material, long lifespan and environmental friendly. </br> IP67 high waterproof level, the power supply could be temporarily immersed under water </br> Specifications: Input voltage range: 90-264VAC, 127~370VDC Output voltage: 12V Working temperature:-25~+70℃</br> Protections: Short circuit/Over current/Over voltage </br>

LPV-60-12 is a 60W 12V waterproof LED driver, be used with LED Strips<br>EU RoHS:Compliant<br>ECCN (US):EAR99<br>Type:Constant Voltage<br>Input/Output Type:AC/DC<br>Number of Outputs:1<br>Output Voltage Range (VDC):12(Typ)<br>Maximum Output Current (mA):5000<br>Output Power (W):60<br>Input Voltage Range:127VDC to 370VDC|90VAC to 264VAC<br>Dimming:No<br>Efficiency (%):83(Typ)<br>Termination Style:Lead Wire<br>IP Rating:IP67<br>Warranty:2Year<br>Minimum Operating Temperature (°C):-30<br>Maximum Operating Temperature (°C):70<br>Product Weight (g):400<br>Pin Count:4<br>Mounting:Screw<br>Package Height:32<br>Package Length: 162.5<br>Package Width:42.5<br>PCB changed:4<br>Lead Shape:Lead Wire<br><br>Flickering LED Lights: A Troubleshooting Guide<br><br>Step One – Identify Your Current Setup<br><br>Check your lamps, wires, ballast/driver, and tombstones for bad connections or loose wires. <br>A common reason for flickering LEDs is a loose connection within the circuit. <br>Addressing a power-connection issue or loose wire to the driver circuit will often easily resolve the flickering or no-power issue.<br>Ensure the lamp is screwed correctly in place and the connection point hasn’t become loose over its lifetime.<br><br>Step Two – Narrow Down Other Potential Points of Failure<br><br>If your wiring and connections are working, the issue may be resolved by checking for incompatible switches.<br>There are a number of other potential points of failure resulting in the flickering or power issues with your LED lamps, including:<br>1. Incompatible switches<br>2. Driver components<br>3. Relaxation oscillator<br>4. Incorrect power/surge wattage<br>5. Changing voltage levels.<br>Please NOTE the PSEUDO Soldering will cause Flicker as well, Please use high quality solder bar..
