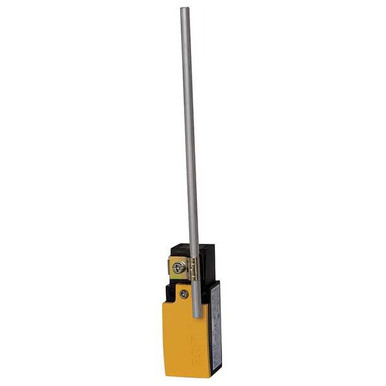

Eaton Cutler Hammer Limit Switch, 1No/1Nc, 415Vac, 6A - LS-S11S-RRM

This modular switch is engineered for use in safety applications designed to protect persons or processes. It features a plug-in system, positive opening NC contacts, an economical plastic body, and operating heads that can be rotated 90° to suit a specific direction.<br /><br /> Limit Switch Style: General Purpose Limit Switch<br /> Basic Actuator Style - Limit Switch: Rotary<br /> Actuator Style - Limit Switch: Rotary, Adjustable Rod<br /> Actuator Location - Limit Switch: Side<br /> Item: General Purpose Limit Switch<br /> AC Contact Rating - Limit Switch: 4A @ 400V<br /> DC Contact Rating - Limit Switch: Not Rated<br /> Contact Form- Switches: 1NC/1NO<br /> Actuator Length - Limit Switch: 6.00"<br /> Body Height - Limit Switch: 2.53"<br /> Body Width - Limit Switch: 1.22"<br /> Body Depth - Limit Switch: 1.32"<br /> Boot Sealed Actuator - Limit Switch: No<br /> Threaded for Panel Mounting - Limit Switch: No<br /> Body Style - Limit Switch: Miniature<br /> NEMA Rating: 3, 3S, 4X, 6P<br /> Wiring Entry: M20 Thread<br /> Electrical Connection: Screw Terminals<br /> IP Rating: 67<br /> Movement: Horizontal<br /> Travel: Total Travel 65 Degrees , Operating Travel 43 Degrees , Reset Travel 22 Degrees<br /> Series: LS<br /> Operating Temp. Range: -13 Degrees to 158 Degrees F<br /> Operating Force: 0.2N-m<br /> Standards: UL LISTED, CSA, CE, CCC<br />
