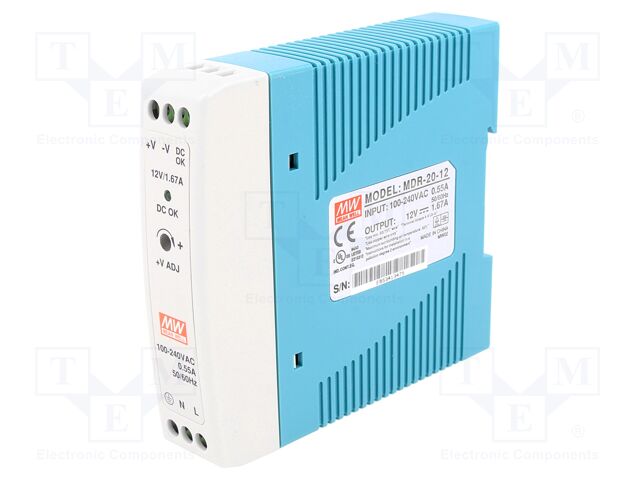

MEAN WELL . MDR-20-12

20W DIN-RAIL SWITCHING POWER SUPPLY <br><br>12 Volts @ 1.67 Amps <br><br>Specifications: <br>Universal AC input range <br>Protections: Short-circuit, Overload, Overvoltage <br>100% Full load burn-in test <br>Soft-start circuit, limiting AC surge current <br>Input Voltage: 85-264VAC @ 47-63Hz, or 120-370VDC <br>Input Current @ Full load: 0.55A(115V) / 0.35A(230V) <br>Size: 3.9" x 0.9" x 3.5" <br>Weight: 0.4 lbs. <br>3-year warranty

MEAN WELL MDR-20-12 Industrial Din Rail Power Supply

MDR-20 Series: 20 W Single Output Rail Type Industrial Power Supply Features. Internationally recognized full range AC input Protection: Short Circuit/Over Load/Over Voltage Natural air-cooling ‧ Mounting on TS-35/7.5 or TS-35/15 rail ‧Class I, Div 2 Hazardous Locations T4 ‧ LED power indicator ‧ DC OK relay contact ‧ No-load power loss:<0.75W ‧ 100% full load aging test 3 Years Warranty

<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Installed on DIN rail TS35 / 7.5 or 15</p> <p>Protections: Short circuit / Overload / Over voltage</p> <p>No load power consumption <0.75W</p> <p>LED indicator for power on</p> <p>DC OK signal output</p> <p>Cooling by free air convection</p> <p>100% full load burn-in test</p> <p>3 years warranty </p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:85~264VAC; 120~370VDC</p> <p>AC inrush current:Cold start, 20A at 115VAC, 40A at 230VAC</p> <p>DC adjustment range:±10% rated output voltage</p> <p>Overload protection:105%~160% constant current limiting, auto-recovery</p> <p>Over voltage protection:115%~135% rated output voltage</p> <p>Setup, rise, hold up time :500ms, 30ms, 50ms</p> <p>Withstand voltage:I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute</p> <p>Working temperature:-20~+70°C (refer to output derating curve)</p> <p>DC OK signal:Open collector</p> <p>Safety standards:UL508, TUV EN60950-1 approved</p> <p>EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3</p> <p>Connection:I/P: 3 poles, O/P: 3 poles screw DIN terminal</p> <p>Dimension (LxWxH) :22.5x90x100</p> <p>Packing:72pcs / 14.7kg</p>

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

This item will ship MDR-20-12*1pcs,enjoy shopping and best wishes!
