Mean Well Power Supply, Ac-Dc, 24V, 1A - MDR-20-24

MDR-20-24 Mean Well Power Supply 24 V 1 A 24W

<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Installed on DIN rail TS35 / 7.5 or 15</p> <p>Protections: Short circuit / Overload / Over voltage</p> <p>No load power consumption <0.75W</p> <p>LED indicator for power on</p> <p>DC OK signal output</p> <p>Cooling by free air convection</p> <p>100% full load burn-in test</p> <p>3 years warranty </p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:85~264VAC; 120~370VDC</p> <p>AC inrush current:Cold start, 20A at 115VAC, 40A at 230VAC</p> <p>DC adjustment range:±10% rated output voltage</p> <p>Overload protection:105%~160% constant current limiting, auto-recovery</p> <p>Over voltage protection:115%~135% rated output voltage</p> <p>Setup, rise, hold up time :500ms, 30ms, 50ms</p> <p>Withstand voltage:I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute</p> <p>Working temperature:-20~+70°C (refer to output derating curve)</p> <p>DC OK signal:Open collector</p> <p>Safety standards:UL508, TUV EN60950-1 approved</p> <p>EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3</p> <p>Connection:I/P: 3 poles, O/P: 3 poles screw DIN terminal</p> <p>Dimension (LxWxH) :22.5x90x100</p> <p>Packing:72pcs / 14.7kg</p>

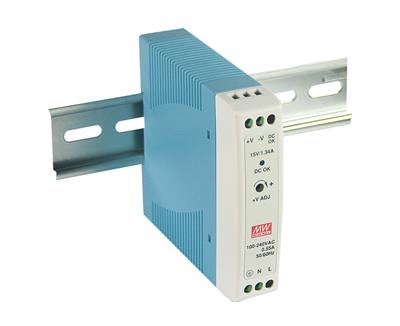

MEAN WELL MDR-20-24 Industrial Din Rail Power Supply

M D R-20 Series Internationally recognized full range AC input Protection: Short Circuit/Over Load/Over Voltage Natural air-cooling Mounting Rails: TS-35/7.5 or TS-35/15 ‧ Built-in active DC OK signal ‧ LED Power Indicator ‧ No-load power loss:< 0.75W ‧ 100% full load aging test 3-year warranty

0 WATT DIN MOUNT POWER SUPPLY 85~264V AC 1PH:120~370V DC INPUT 24V 1.0A OUTPUT

Model：MDR-20-24 <br> Output DC Voltage:24V<br> Output Rated Current:1A<br> Output Current Range:0～1A<br> Output Rated Power:24W <br> Output Ripple And Noise:150mVp-p<br> Output Voltage Adjustment Range:21.6～26.4V<br> Output voltage accuracy:±1.0% <br> Output linearity adjustment rate:±1.0%<br> Load Regulation:±1.0%<br>

This item will ship MDR-20-24*1pcs,enjoy shopping and best wishes!

Specifications: Universal Ac Input Range Protections: Short-Circuit, Overload, Overvoltage 100% Full Load Burn-In Test Soft-Start Circuit, Limiting Ac Surge Current Input Voltage: 85-264Vac @ 47-63Hz, Or 120-370Vdc Input Current @ Full Load: 0.55A(115V) / 0.35A(230V) Size: 3.9" X 0.9" X 3.5" Weight: 0.4 Lbs.

<b>Features</b><br>LPV-60/100: 90~264VAC input<br>LPV-150: 180~305VAC input only<br>Fully encapsulated with IP67 level<br>Protections: Short circuit / Overload / Over voltage /Over temperature (LPV-150 only)<br>Constant voltage mode<br>Class 2 power unit / Pass LPS (LPV-60-12/15/24/36/48 only)<br>Isolation class II, no F.G.<br>Withstand 300VAC surge input for 5 seconds (LPV-60/100)<br>Cooling by free air convection<br>100% full load burn-in test<br>Low cost, high reliability<br>Suitable for LED-based decorative/architectural lighting,LED stage, theater lighting, and LED electronic displays<br>2 years warranty<br>The transaction does not include any Import Tax / Duty / VAT / Brokerage Fees / Handling Fees. For more information about the tax rate, please check with local custom department before purchases. If you reject the package due to any charged tax or duty, we reserve the right to charge ALL shipping cost and 5% (of total price) handling fee. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. We do not responsible for any custom duty or import tax. Please check with your country's customs office to determine what these additional costs will be prior to buying. Sometime customs will inspect the parcel and sometime will not. If you have any special request, please kindly advise us once place order.
