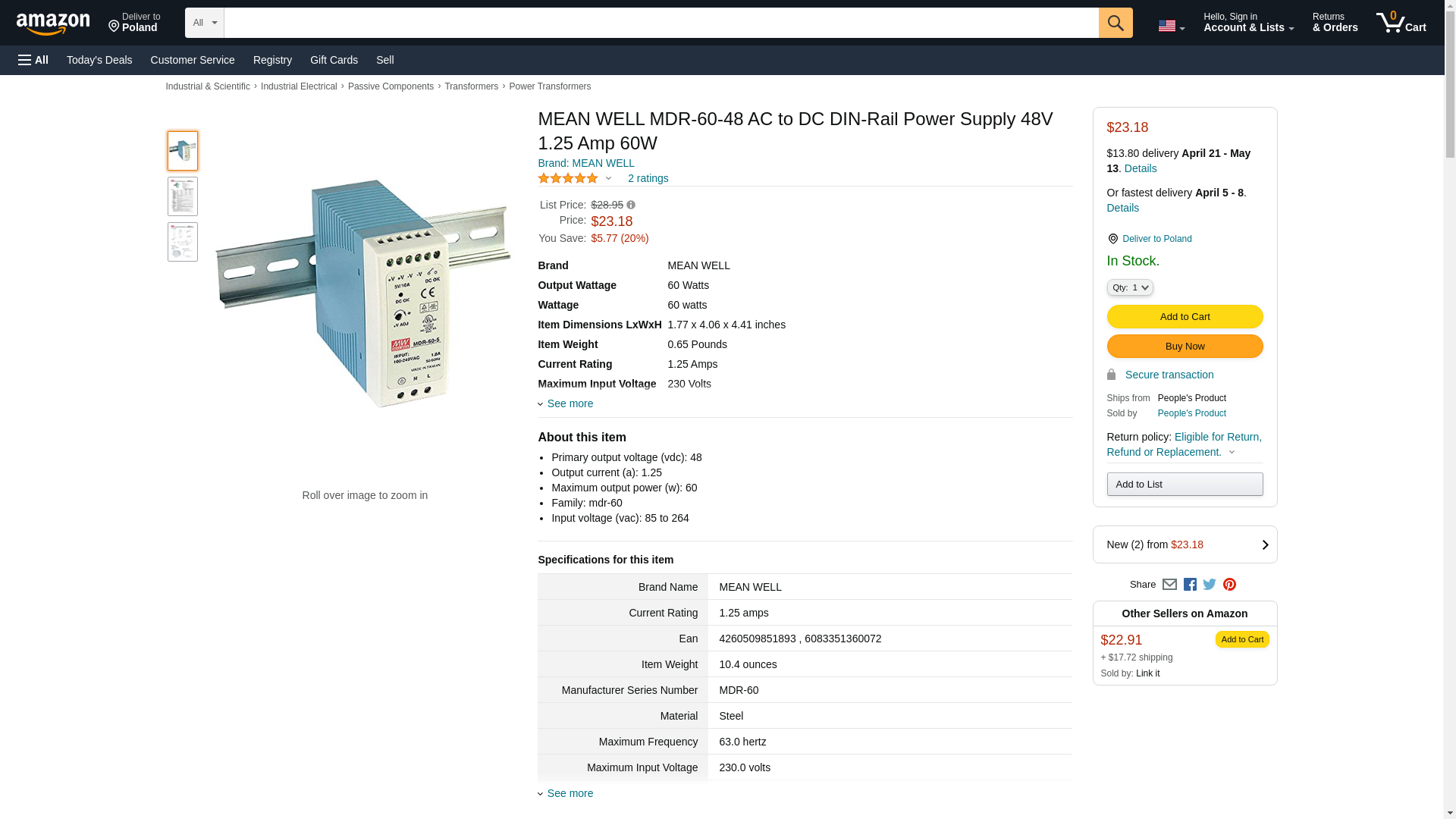

Mean Well Power Supply, Ac-Dc, 48V, 1.25A - MDR-60-48

<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Installed on DIN rail TS35 / 7.5 or 15</p> <p>Protections: Short circuit / Overload / Over voltage</p> <p>No load power consumption <0.75W</p> <p>LED indicator for power on</p> <p>DC OK relay contact</p> <p>Cooling by free air convection</p> <p>100% full load burn-in test</p> <p>3 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:85~264VAC; 120~370VDC</p> <p>AC inrush current:Cold start, 30A at 115VAC, 60A at 230VAC</p> <p>DC adjustment range:0~+20% rated output voltage</p> <p>Overload protection:105%~150% constant current limiting, auto-recovery</p> <p>Over voltage protection:125%~150% rated output voltage</p> <p>Setup, rise, hold up time:500ms, 30ms, 50ms</p> <p>Withstand voltage:I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute</p> <p>Working temperature:-20~+70°C (refer to output derating curve)</p> <p>DC OK signal:Relay contact</p> <p>Safety standards:UL508, TUV EN60950-1, UL60950-1 approved</p> <p>EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3,EN61000-6-2 heavy industry level</p> <p>Connection:IP: 3 poles, O/P: 6 poles screw DIN terminal</p> <p>Dimension (LxWxH) :40x90x100</p> <p>Packing:42pcs / 14.8kg</p>

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

<b>Features</b><br>LPV-60/100: 90~264VAC input<br>LPV-150: 180~305VAC input only<br>Fully encapsulated with IP67 level<br>Protections: Short circuit / Overload / Over voltage /Over temperature (LPV-150 only)<br>Constant voltage mode<br>Class 2 power unit / Pass LPS (LPV-60-12/15/24/36/48 only)<br>Isolation class II, no F.G.<br>Withstand 300VAC surge input for 5 seconds (LPV-60/100)<br>Cooling by free air convection<br>100% full load burn-in test<br>Low cost, high reliability<br>Suitable for LED-based decorative/architectural lighting,LED stage, theater lighting, and LED electronic displays<br>2 years warranty<br>The transaction does not include any Import Tax / Duty / VAT / Brokerage Fees / Handling Fees. For more information about the tax rate, please check with local custom department before purchases. If you reject the package due to any charged tax or duty, we reserve the right to charge ALL shipping cost and 5% (of total price) handling fee. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. We do not responsible for any custom duty or import tax. Please check with your country's customs office to determine what these additional costs will be prior to buying. Sometime customs will inspect the parcel and sometime will not. If you have any special request, please kindly advise us once place order.
