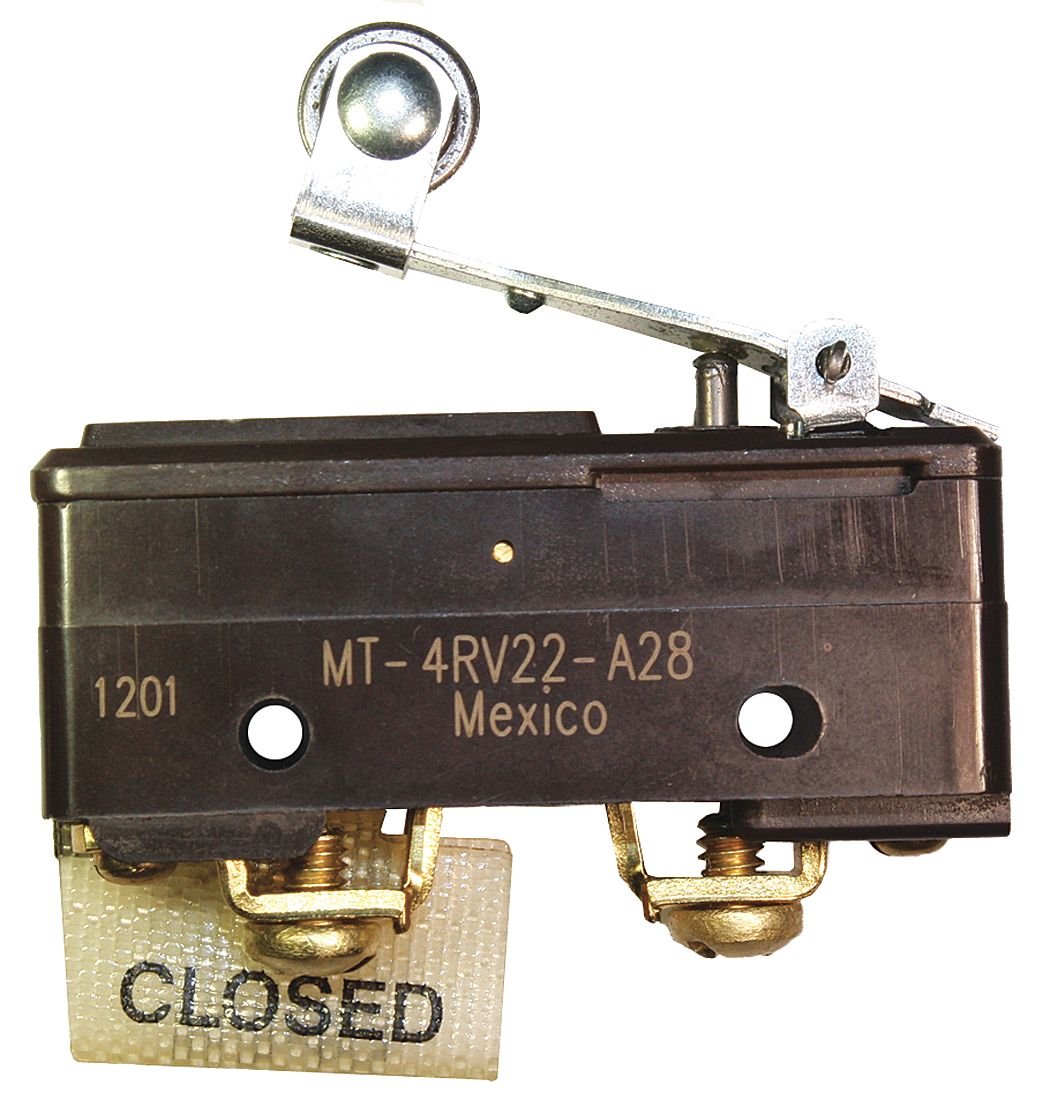

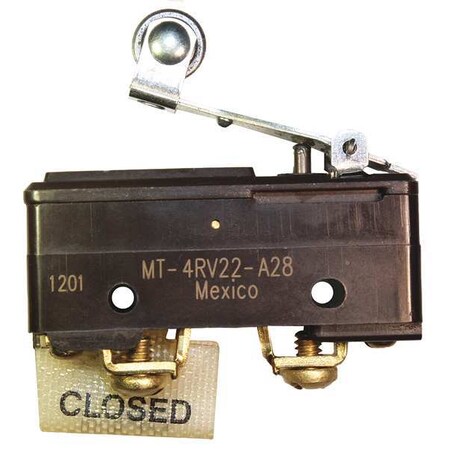

Honeywell Microswitch, Roller Lever Spdt 10A 125V - MT-4RV22-A28

Honeywell Snap Action Switch MT-4RV22-A28 N.O. N.C. with screw mount and SPDT roller lever actuator, Silver contacts.

MT Series Standard Basic Switch, Single Pole Double Throw Circuitry, 10 A at 125 Vdc/Vac (non-polarized), Roller Lever Actuator, 1,25 N [4.5 oz] Maximum Operating Force, Gold Contacts, Quick Connect Termination Silver Contacts, Screw Termination, CSA, UL

Product Overview The MT-4RV22-A28 is a single-pole double-throw (SPDT) standard Basic Switch with roller lever actuator and screw terminations. The MICRO SWITCH MT series magnetic blow-out switch is designed to switch high capacity systems. An integral magnet around the contact gap protects the contacts by deflecting the arc. A vented case allows hot arc gasses to escape promoting longer switch life. Mounting interchangeability with BZ/BA switches Mechanical life of 100, 000 cycles at 95% survival Arc-extinguishing design in contact area Arc-resistant case -55 to 85°C Operating temperature range Applications Motor Drive & Control, Industrial This listing is for Pack of 200. rohsCompliant: Y-EX hazardous: false rohsPhthalatesCompliant: YES Microswitch Actuator: Roller Lever Product Range: MT Series Contact Current Max: 10 usEccn: EAR99 Contact Configuration: SPDT Operating Force Max: 4.5 Contact Voltage DC Nom: 250 Contact Voltage AC Nom: 125 Switch Terminals: Screw Microswitch Type: Standard productTraceability: No distributorStatus: AUTHORIZED SVHC: No SVHC (07-Jul-2017)
