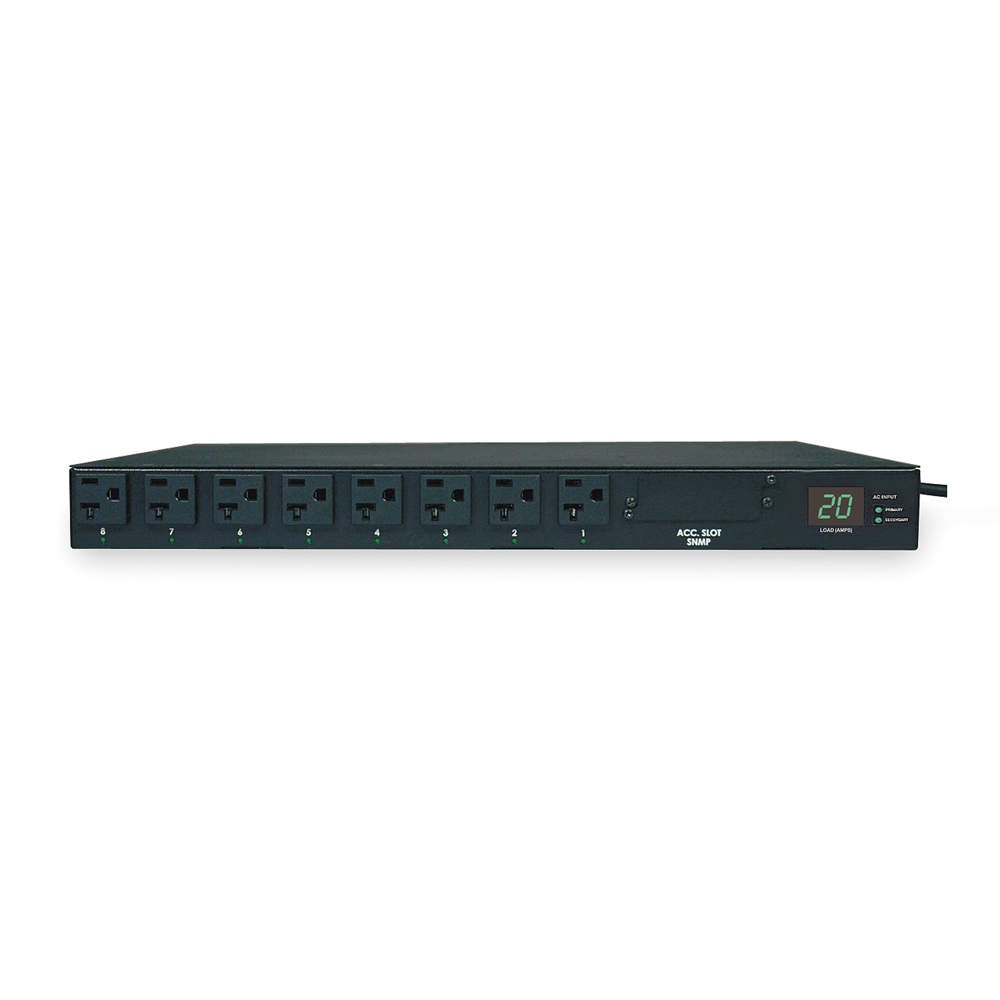

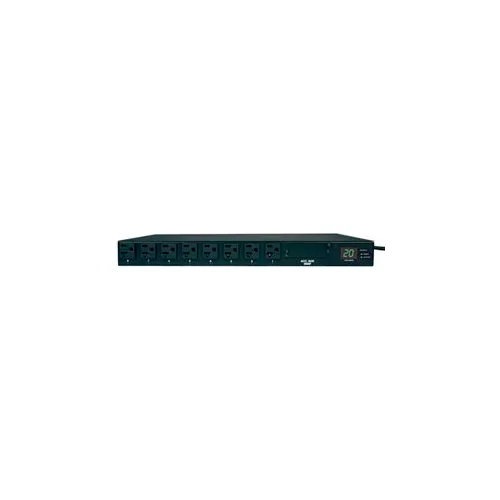

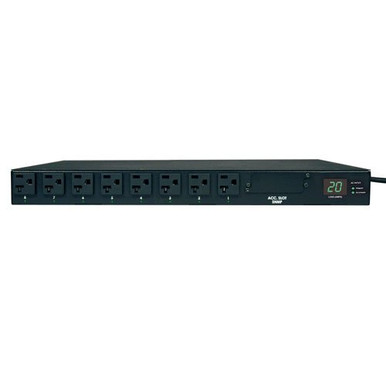

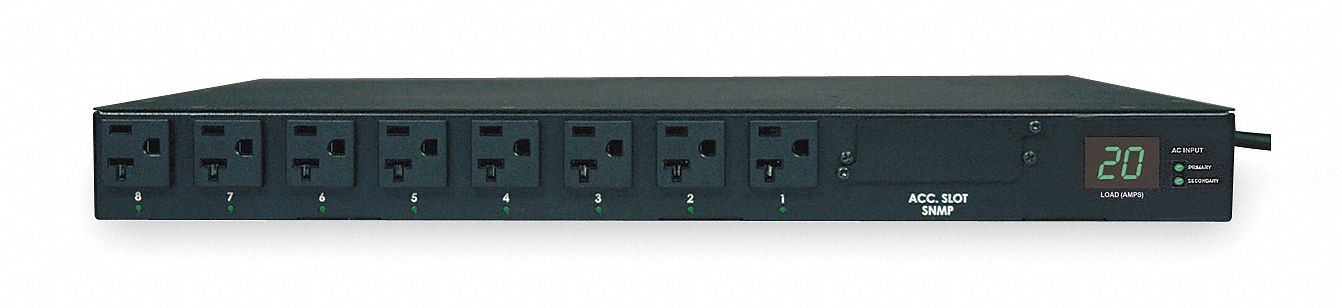

Tripp LitePDUMH20AT Price: $521.08 PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U

Product Description Tripp Lite Metered PDU with Automatic Transfer Switching PDUMH20AT - power distribution unit - 2400 VA<br /> Device Type Power distribution unit - rack-mountable<br /> Rack Size 1U<br /> Weight 12.1 lbs<br /> Input Voltage AC 120 V<br /> Output Voltage AC 120 V ( 50/60 Hz )<br /> Power Capacity 2400 VA<br /> Output connector(s) 16 x power NEMA 5-15/20<br /> Dimensions (WxDxH) 17.5 in x 14.5 in x 1.7 in<br /> Manufacturer Warranty 2 years warranty<br /> <br /> Input Voltage AC 120 V <br /> Frequency Required 50/60 Hz <br /> Input Connector(s) 2 x power NEMA L5-20 <br /> Power Output Connectors Details 16 x power NEMA 5-15/20 <br /> Output Voltage AC 120 V ( 50/60 Hz ) <br /> Max Electric Current 20 A <br /> Power Capacity 2400 VA

The Excellent Quality Metered PDU 16 NEMA5 15 20R - Tripp Lite's 120V 20A metered PDU system with Automatic Transfer Switching (ATS) is a 16 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned-on at 250 millisecond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Supports 1U rackmount installation in a 2 or 4 post rack. Included are 16 NEMA 5-15/20R outlets, and two 12 ft. L5-20P input power cords. Each cord is compatible with both NEMA 5-20R and L5-20R receptacles.

Tripp Lite's 120V 20A metered PDU system with Automatic Transfer Switching (ATS) is a 16 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned-on at 250 millisecond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Supports 1U rackmount installation in a 2 or 4 post rack. Included are 16 NEMA 5-15/20R outlets and two 12 ft. L5-20P input power cords. Each cord is compatible with both NEMA 5-20R and L5-20R receptacles.

Tripp Lite's 120V 20A metered PDU system with Automatic Transfer Switching (ATS) is a 16 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned-on at 250 millisecond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Supports 1U rackmount installation in a 2 or 4 post rack. Included are 16 NEMA 5-15/20R outlets, and two 12 ft. L5-20P input power cords. Each cord is compatible with both NEMA 5-20R and L5-20R receptacles.

Tripp Lite's 120V 20A metered PDU system with Automatic Transfer Switching (ATS) is a 16 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned-on at 250 millisecond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Supports 1U rackmount installation in a 2 or 4 post rack. Included are 16 NEMA 5-15/20R outlets, and two 12 ft. L5-20P input power cords. Each cord is compatible with both NEMA 5-20R and L5-20R receptacles.

tripp Lite's Pdumh20 Ac Power Distribution Unit Offers A Digital Current Monitor And Provides 20 Amps Of 120 Volt Capacity In A Versatile Multi-mount Cabinet. Detachable Mounting Flanges Are Configurable For Wallmount, Under-counter, Or 1u/0u Rackmount Installation. Uses Only 1u Of Rack Space When Installed In Any 19-inch Rack, With The Potential For Zero U Mounting In The Cable Management Area Of Most Rack Enclosures. Built-in Digital Ammeter Display Offers Continuous Visual Power Consumption Data For The Entire Pdu. Attractive Rackmount Housing With 12 Rear-facing Outlets Measures Only 4.5 Inches In Depth. Unfiltered Electrical Pass-through Without A Power Switch Makes The Pdumh20 Ideal For Distributing Alternate Waveform Ups Or Generator Power In Rack Enclosures, Network Closets, And More. Includes 12 Rear-facing Nema 5-15/20r Outlets, 15-ft. Ac Power Cord With L5-20p Input Plug. Comes Wih 6-inch L5-20p-to-5-20p Adapter, 20 Amp Breaker, Tvss Grounding Lug, And Rugged All-metal Rackmount Case Design.

The Excellent Quality METERED PDU W/ ATS, PDUMH20AT, 16 - Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
