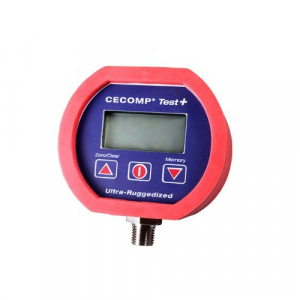

Order CTP3B-15V100PSIG-NC by Cecomp Electronics CTP3B Digital Pressure Gauge - US Mega Store

Cecomp Electronics . CTP3B-15V100PSIG-NC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCecomp Electronics
Attribute00, Attribute18±0.01% FS, included in accuracy
Attribute01, Attribute19±0.015% FS, included in accuracy
Attribute02, Attribute20±0.25% full scale ±1 least significant digit
Attribute03, Attribute21±0.1% full scale, ±1 least significant digit
Attribute04, Attribute223 readings per second nominal display update rate 4 digit LCD, 0.5"H and 5 character 0.25"H alphanumeric White LED backlight active with button keypress
Attribute05, Attribute232 AA alkaline included Approx. 150-1500 hours depending on backlight usage Low battery symbol on display
Attribute06, Attribute24Minimum and/or maximum readings stored in memory, readings cleared or stored at shutoff. User configurable.
Attribute07, Attribute25User selectable 1 minute to 8 hours or front button on/off
Attribute08, Attribute269 ounces (approximately)
Attribute09, Attribute27Epoxy powder coated aluminum case and bezel, front and rear rubber gaskets, polycarbonate label, rubber boot
Attribute10, Attribute28All wetted parts are 316L stainless steel
Attribute11, Attribute291/4" NPT male fitting
Attribute12, Attribute303.67"W x 3.19"H x 2"D with boot, not including fitting
Attribute13, Attribute3132 to 158°F (0 to 70°C)
Attribute14, Attribute32-4 to 185°F (-20 to 85°C)
Attribute15, Attribute33-40 to 203°F (-40 to 95°C)
Attribute16, Attribute34–14.7-100 psi
Attribute17, Attribute35–14.7-100
AttributeKey00, AttributeKey18Accuracy Sensor repeatability
AttributeKey01, AttributeKey19Accuracy Sensor hysteresis
AttributeKey02, AttributeKey20Accuracy Vacuum, compound, bipolar ranges
AttributeKey03, AttributeKey21Accuracy Pressure and absolute ranges
AttributeKey04, AttributeKey22Display
AttributeKey05, AttributeKey23Batteries, Battery Life, Low Battery Indication
AttributeKey06, AttributeKey24Min/Max Memory
AttributeKey07, AttributeKey25Auto Shutoff
AttributeKey08, AttributeKey26, Weight_AttribWeight Gauge
AttributeKey09, AttributeKey27Housing Materials
AttributeKey10, AttributeKey28Material
AttributeKey11, AttributeKey29Connection
AttributeKey12, AttributeKey30Dimensions
AttributeKey13, AttributeKey31Environmental Temperature Compensated range
AttributeKey14, AttributeKey32Environmental Temperature Operating
AttributeKey15, AttributeKey33Environmental Temperature Storage
AttributeKey16, AttributeKey34Pounds/sq. inch
AttributeKey17, AttributeKey35PSI
CategoryL1Process Control & Automation
CategoryL2Gauges
CategoryL3Pressure & Vacuum
CategoryL4Cecomp Electronics CTP3B-15V100PSIG-NC
ConditionNEW
Extra Product NameOrder CTP3B-15V100PSIG-NC by Cecomp Electronics CTP3B Digital Pressure Gauge - US Mega Store
Weight9
WeightUnitoz
moq, multiple, tierMinQty11
MPN, SKUCTP3B-15V100PSIG-NC
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>Cecomp Electronics, CTP3B&ndash;15V100PSIG-NC, CTP3B Battery Powered Digital Pressure Gauge with 3 Button Keypad and NIST Traceability Documentation, &ndash;14.7-100 PSI </strong> </p> <p><strong>Display back lighting </strong> </p> <p>Display back lighting can be turned on by momentarily pressing the power button whenever the gauge is on. This also restarts the auto shutoff timer. The factory default on-time is 1 minute, but the setup procedure allows setting it to 1 to 255 minutes, or to 0 to disable display back lighting. The LED display back lighting may not be apparent under bright lighting conditions. </p> <p><strong>Shutoff </strong> </p> <p>The auto shutoff timer starts at power up and resets whenever any button is pressed. The default time is 5 minutes, but can be set for a variety of times. If on/off operation is selected, the gauge will stay on until manually shut off or the batteries are depleted. Turn gauge off when not in use to conserve battery life. When an auto shutoff time is used, the display indicates OFF five seconds prior to shutoff. Press the power button to keep the gauge on. To shut the gauge off manually, press and hold (about 5 seconds) the center power button until OFF is displayed. </p> <p><strong>Options </strong> </p> <ul><li><strong>NC </strong> - NIST traceability documentation, 5 points and date </li> </ul> <p>Red rubber boot White LED backlight All metal case Port reinforcement Coated circuit boards </p> <p><strong>Features: </strong> </p> <ul><li>&plusmn;0.1% Test Gauge Accuracy in Most Ranges </li> <li>Ultra-Ruggedized Design </li> <li>316L Stainless Steel Wetted Parts </li> <li>Keypad Selectable Units and Auto Shutoff Times </li> <li>White LED Display Backlight </li> <li>Min/Max Memory </li> </ul>
tierPrice1608

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comCTP3B-15V100PSIG-NC12 Weeks Factory Lead Time11 @ $608.00
MegadepotCTP3B-15V100PSIG-NC111 @ $608.00
heavydutydepot.comCTP3B-15V100PSIG-NC111 @ $608.00
