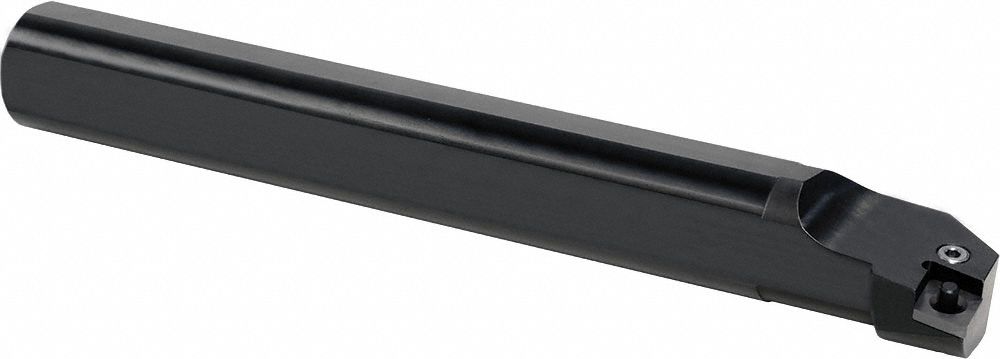

KYOCERA, Boring Bar - 61MH77|S20QPCLNL0927 - Grainger

<ul><li>6 (Axial), -17 (Radial) Rake Angle General Purpose Boring Bar</li><li>Great for Boring, Internal Facing Applications</li><li>Compatible with Right-Hand CNMG33…, CNGG33… Inserts</li></ul><p>Product Details:</p><ul><li>Toolholder Style: S...PCLN</li><li>Hand of Holder: Left-Hand</li><li>Rake: Negative</li><li>Rake Angle (Degree): 6 (Axial), -17 (Radial)</li><li>Series: General Purpose</li><li>Lead Angle (Degree): 5</li><li>[DMIN] Minimum Bore Diameter (mm): 27.00</li><li>[DCON] Shank Diameter (mm): 20.00</li><li>[H] Shank Flat Width (mm): 19.00</li><li>[LF] Functional Length (mm): 180.00</li><li>[LH] Head Length (mm): 37.00</li><li>[WF] Cutting Edge Distance (mm): 14.20</li><li>[RE] Standard Corner Radius (mm): 0.80</li><li>Maximum Overhang Length (L/D): ~3.0</li><li>Coolant Through (Yes/No): No</li><li>Insert Holding Method: Lever Lock</li><li>Insert Shape: 80 Degree Diamond</li><li>[IC] Insert Inscribed Circle (mm): 9.53</li><li>[S] Insert Thickness (mm): 4.76</li><li>Multi-Use Tool (Yes/No): Yes</li><li>Application: Boring, Internal Facing</li><li>Bar Type: Steel</li><li>Unit (inch/mm): mm</li><li>Compatible Insert Hand : Right-Hand</li><li>Compatible Inserts (Partial): CNMG33…, CNGG33…</li></ul>
