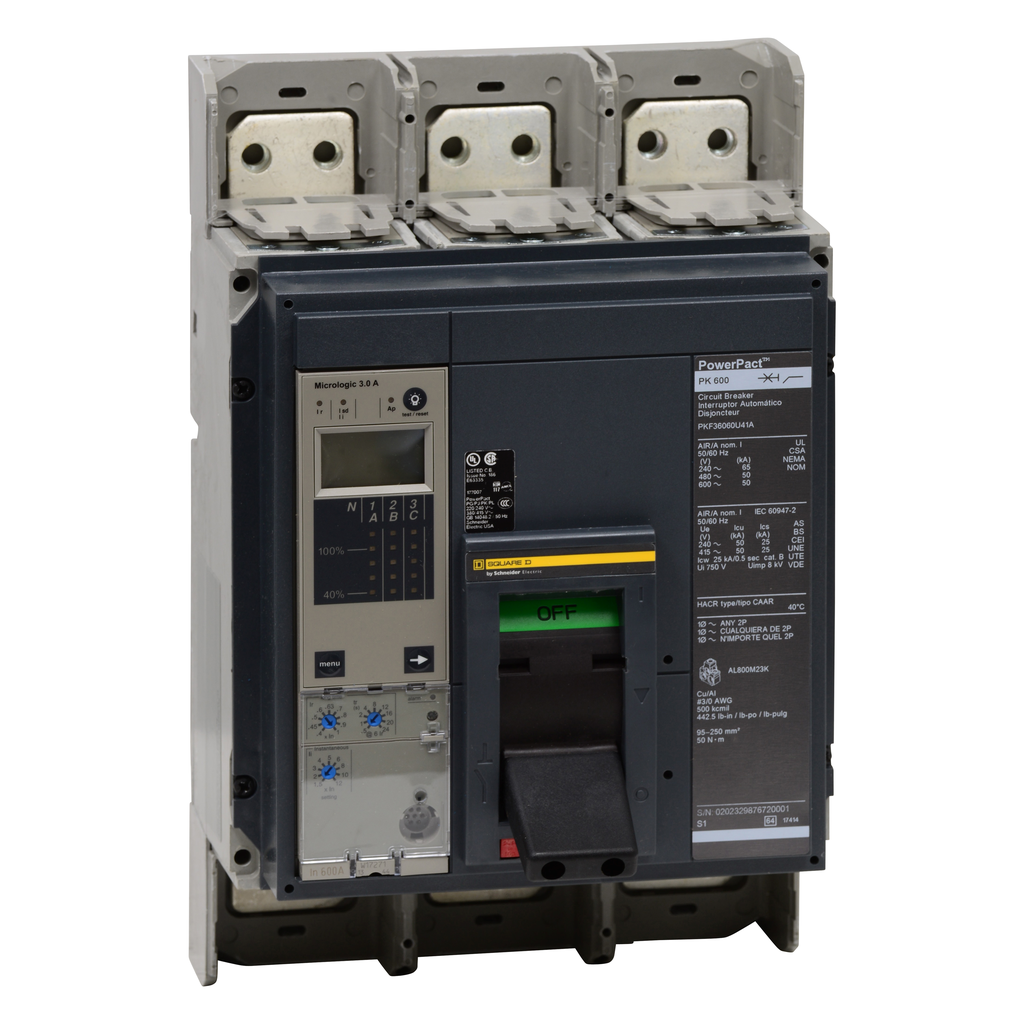

Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 65kA, busbar, Micrologic 5.0A, 100% | Mayer Electric

SQUARE D . SQDPKF36080CU43A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00circuit breaker
Attribute01PowerPact P
Attribute02PowerPact
Attribute03distribution
Attribute0418 months
Attribute05unit mount busbar)
Attribute0650/60 Hz
Attribute07AL800M23K
Attribute0825 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Attribute09electronic, ammeter, Micrologic 5.0 A, LSI
Attribute10Micrologic 5.0 A
Attribute1112.86 in
Attribute12600 V AC 50/60 Hz UL 489
Attribute1350-50 N.m 95-240 mm? (3 x AWG 3/0...3 x 500 kcmil) || 1.0-1.3 N.m
Attribute14busbar
Attribute15K
Attribute16overload 1 trip indicator green) || 1 trip indicator green) || trip causes 1 trip indicator green)
Attribute172 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Attribute18busbar connection line || busbar connection load
Attribute1932 lb(US)
Attribute208 kV IEC 60947-2
Attribute21toggle
Attribute2225 mm
Attribute23800-800 A
Attribute24category A
Attribute250.4...1 x Ir
Attribute26100 %
Attribute27AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 50 kA 480 V AC 50/60 Hz UL 489 || AIR 50 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Attribute28750 V IEC 60947-2
Attribute29yes IEC 60947-2
Attribute303P
Attribute31, moq, multiple, tierMinQty11
Attribute32short-circuit || overload
Attribute333 x AWG 3/0...3 x 500 kcmil aluminium/copper
Attribute348.27 in
Attribute358.05 in
Attribute36, Attribute37, Attribute40Yes
Attribute38ENVPEP1407012EN
Attribute39Green Premium product
Attribute41Reference contains Substances of Very High Concern above the threshold
Attribute42DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute43Product out of China RoHS scope. Substance declaration for your information.
Attribute44ENVEOLI1407012EN
Attribute45Compliant
Attribute46-2-70 ?C
Attribute47UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Attribute48UL || CSA || NOM
Attribute49front cover IP40
Attribute503 IEC 60947-1
Attribute51-50-85 ?C
Attribute52CE
AttributeKey00Product Or Component Type
AttributeKey01Product Name
AttributeKey02Range
AttributeKey03Device Application
AttributeKey04Warranty
AttributeKey05Mounting Mode
AttributeKey06Network Frequency
AttributeKey07Terminal Identifier
AttributeKey08[Ics] Rated Service Breaking Capacity
AttributeKey09Trip Unit Technology
AttributeKey10Trip Unit Name
AttributeKey11, height_AttribHeight
AttributeKey12[Ue] Rated Operational Voltage
AttributeKey13Tightening Torque
AttributeKey14Mounting Support
AttributeKey15Breaking Capacity Code
AttributeKey16Local Signalling
AttributeKey17Number Of Slots
AttributeKey18Electrical Connection
AttributeKey19, Weight_AttribNet Weight
AttributeKey20[Uimp] Rated Impulse Withstand Voltage
AttributeKey21Control Type
AttributeKey22Wire Stripping Length
AttributeKey23Line Rated Current
AttributeKey24Utilisation Category
AttributeKey25Long Time Pick-Up Adjustment Range
AttributeKey26Continuous Current Rating
AttributeKey27Breaking Capacity
AttributeKey28[Ui] Rated Insulation Voltage
AttributeKey29Suitability For Isolation
AttributeKey30Poles Description
AttributeKey31Quantity Per Set
AttributeKey32Protection Type
AttributeKey33Awg Gauge
AttributeKey34, width_AttribWidth
AttributeKey35, length_AttribDepth
AttributeKey36Rohs Exemption Information
AttributeKey37Mercury Free
AttributeKey38Environmental Disclosure
AttributeKey39Sustainable Offer Status
AttributeKey40Pvc Free
AttributeKey41Reach Regulation
AttributeKey42California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey43China Rohs Regulation
AttributeKey44Circularity Profile
AttributeKey45Eu Rohs Directive
AttributeKey46Ambient Air Temperature For Operation
AttributeKey47Standards
AttributeKey48Product Certifications
AttributeKey49Ip Degree Of Protection
AttributeKey50Pollution Degree
AttributeKey51Ambient Air Temperature For Storage
AttributeKey52Quality Labels
DimensionUnitinch
Extra Product NameCircuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 65kA, busbar, Micrologic 5.0A, 100% | Mayer Electric
UPC, MPN, SKUSQDPKF36080CU43A
Weight32
WeightUnitlbs
depth, length8.05
height12.86
jsonUrlData/Product/SQUARE-D-Circuit-breaker-PowerPact-P-800A-3-pole-600VAC-65kA-busbar-Micrologic-5-0A-100-SQDPKF36080CU43A
jsonUrlData2a847bb68-c298-42df-a510-aeea00572dda
qtyInStock0
tierPrice10.0
width8.27

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDPKF36080CU43A111 @ $0.00
