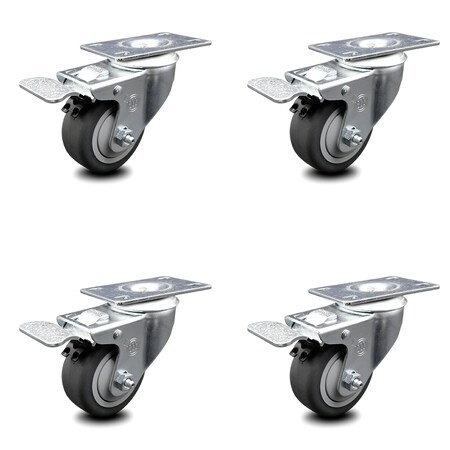

3.5 Inch Thermoplastic Rubber Swivel Top Plate Caster Set with Total Lock Brake

Service Caster . SCC-TTL20S3514-TPRB-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, diameter, length, Decimal_value3.5
Attribute01, width1.25
Attribute02, Model, ModelNumber, Model_numberSeries #20
Attribute03Top Plate
Attribute04, Attribute09Total lock brake
Attribute054-5/8"
Attribute06Thermoplastic Rubber
Attribute07-20 degrees F to 180 degrees F
Attribute082-1/2" x 3-5/8"
Attribute101-3/4" x 2-7/8" to 3"
Attribute11(4) swivel casters w/ total lock brakes
Attribute12Bright Zinc Plated Finish
Attribute1375A
Attribute14230
Attribute15, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Series
AttributeKey03Caster Mounting Type
AttributeKey04Features
AttributeKey05, height_AttribMounting Height
AttributeKey06Material
AttributeKey07Caster Temp. Range
AttributeKey08Plate Size
AttributeKey09Caster Swivel Lock Type
AttributeKey10Plate Caster Bolt Hole Pattern
AttributeKey11Type
AttributeKey12Finish
AttributeKey13Durometer
AttributeKey14Capacity (Lb.)
AttributeKey15Country of Origin (subject to change)
DimensionUnitinch
Extra Product Name3.5 Inch Thermoplastic Rubber Swivel Top Plate Caster Set with Total Lock Brake
WeightUnitlbs
extendedLead26
extendedQty-2
height4.625
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty11
MPN, PartNumber, Part_numberSCC-TTL20S3514-TPRB-4
qtyInStock0
tierPrice1163.81
urlhttps://www.zoro.com/service-caster-35-inch-thermoplastic-rubber-swivel-top-plate-caster-set-with-total-lock-brake-scc-ttl20s3514-tprb-4/i/G605432319/
ASINB089C7LM89 B08FBJP6FJ
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08FBJP6FJ
Bullet_pointBrake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster
ClassificationId383663011 511228
Color4 Swivel - Total Lock Brakes - Gray
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0670533885797 670533885797
FetchTime1697529167 1704399152
Height1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameThermoplastic Rubber Swivel Top Plate Caster Set of 4 with 3.5 Inch Gray Wheels - Includes 4 Swivel with Total Lock Brakes - 920 lbs. Total Capacity - Service Caster Brand
Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity4
Item_type_keywordplate-casters
KeywordSCC-TTL20S314-TPRB-4
Linkhttps://m.media-amazon.com/images/I/41EwtmfcpML._SL75_.jpg https://m.media-amazon.com/images/I/41EwtmfcpML.jpg https://m.media-amazon.com/images/I/41UOF1PnLvL._SL75_.jpg https://m.media-amazon.com/images/I/41UOF1PnLvL.jpg https://m.media-amazon.com/images/I/51QzdMDDFTL._SL75_.jpg https://m.media-amazon.com/images/I/51QzdMDDFTL.jpg https://m.media-amazon.com/images/I/51SSVM9r2VL.jpg https://m.media-amazon.com/images/I/51UzzDwK9mL._SL75_.jpg https://m.media-amazon.com/images/I/51UzzDwK9mL.jpg https://m.media-amazon.com/images/I/51tImG1Wp5L._SL75_.jpg https://m.media-amazon.com/images/I/51tImG1Wp5L.jpg https://m.media-amazon.com/images/I/61QgGPRZqZL.jpg https://m.media-amazon.com/images/I/61ULatX8FuL.jpg https://m.media-amazon.com/images/I/71mQl8HH6kL.jpg https://m.media-amazon.com/images/I/71woxeQKGmL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Load_capacity300.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypeThermoplastic Rubber Tread on Polyolefin Core
Mounting_typeStem Mount
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB089C7LM89
ProductCategoryId383663011 511228 biss_display_on_website
ProductGroupBISS Basic
ProductType, ProductTypeNameINDUSTRIAL_CASTERS
Product_descriptionListing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel casters with total lock brakes, 3.5” diameter by 1-1/4” wide thermoplastic rubber wheels. Supports a total weight of 920lbs (230lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 thermoplastic rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. They are resistant to water, oil, and grease and will keep you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2020-08-05T14:34:49.496Z
Rank155333 163434 1795 1803 346077 347391
Size3.5" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TitleHardware Industrial & Scientific Plate Casters Thermoplastic Rubber Swivel Top Plate Caster Set of 4 with 3.5 Inch Gray Wheels - Includes 4 Swivel with Total Lock Brakes - 920 lbs. Total Capacity - Service Caster Brand
TypeSwivel VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/41UOF1PnLvL._SL75_.jpg
Unitinches pounds
Unit_count4.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupautomotive_display_on_website biss_display_on_website
WebsiteDisplayGroupNameAutomotive Parts and Accessories
Width1000 2.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG605432319111 @ $163.81

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Thermoplastic Rubber Swivel Top Plate Caster Set of 4 with 3.5 Inch Gray Wheels - Includes 4 Swivel with Total Lock Brakes - 920 lbs. Total Capacity - Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel casters with total lock brakes, 3.5” diameter by 1-1/4” wide thermoplastic rubber wheels. Supports a total weight of 920lbs (230lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 thermoplastic rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. They are resistant to water, oil, and grease and will keep you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height.
  • Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster
  • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
  • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeINDUSTRIAL_CASTERS
ModelSeries #20
Part numberSCC-TTL20S3514-TPRB-4
Items per pack4
LabelService Caster
ManufacturerService Caster
