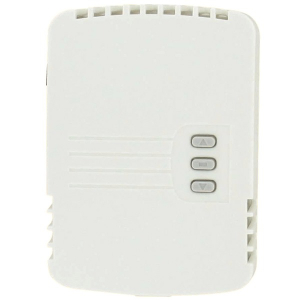

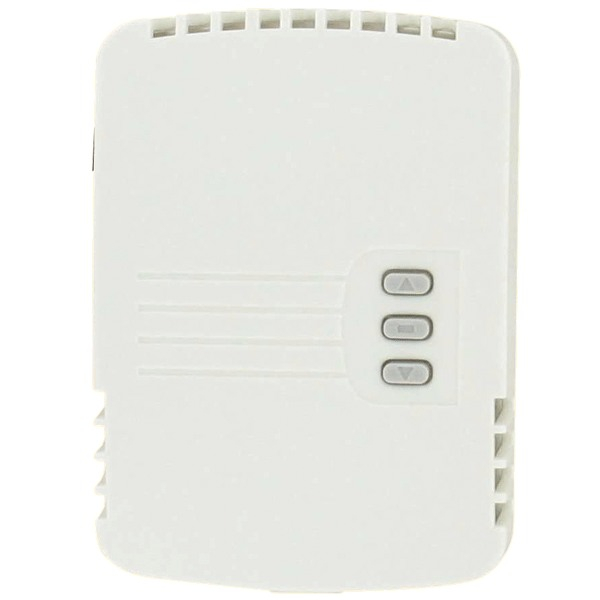

Order CDTR-2E4F4 by Dwyer CDTR RH/Temperature Transmitter - US Mega Store

Dwyer . CDTR-2E4F4

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute14CO2: 0 to 2000; Relative Humidity: 0 to 100% ; Temperature: 32 to 122°F (0 to 50°C)
Attribute01, Attribute15±40 ppm + 3% of reading (CO2); ±2% (RH)
Attribute02, Attribute16±8 ppm/ °C at 1100 ppm
Attribute03, Attribute1716 ppm
Attribute04, Attribute180.13% of reading per mm of Hg
Attribute05, Attribute192 minutes for 99% step change
Attribute06, Attribute2032 to 122°F (0 to 50°C)
Attribute07, Attribute2110 to 95% RH (non-condensing)
Attribute08, Attribute2216 to 35 VDC / 19 to 28 VAC
Attribute09, Attribute23Average: 2 watts; Peak: 3.75 watts
Attribute10, Attribute24Single-beam, dual-wavelength NDIR
Attribute11, Attribute25Current: 4 to 20 mA (max 500 O); Voltage: 0 to 5 VDC or 0 to 10 VDC (min 500 Ω); Relay: SPST NO 2A @ 30 VDC; RTD or thermistor per r-t curves (depending on model)
Attribute12, Attribute265.6 oz (158.8 g)
Attribute13, Attribute27CE
AttributeKey00, AttributeKey14Range
AttributeKey01, AttributeKey15Accuracy
AttributeKey02, AttributeKey16Temperature Dependence
AttributeKey03, AttributeKey17Non-Linearity
AttributeKey04, AttributeKey18Pressure Dependence
AttributeKey05, AttributeKey19Response Time
AttributeKey06, AttributeKey20Temperature Limits
AttributeKey07, AttributeKey21Humidity Limits
AttributeKey08, AttributeKey22Power Requirements
AttributeKey09, AttributeKey23Power Consumption
AttributeKey10, AttributeKey24Sensor
AttributeKey11, AttributeKey25Output
AttributeKey12, AttributeKey26, Weight_AttribWeight
AttributeKey13, AttributeKey27Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Gas
CategoryL4Dwyer CDTR-2E4F4
ConditionNEW
Extra Product NameOrder CDTR-2E4F4 by Dwyer CDTR RH/Temperature Transmitter - US Mega Store
Weight5.6
WeightUnitoz
moq, multiple, tierMinQty11
MPN, SKUCDTR-2E4F4
qtyInStockContact Us
snippet<p><strong>Dwyer, CDTR-2E4F4, Series CDTR Carbon Dioxide/RH/Temperature Transmitter, European Wall Mount, 0 to 5 VDC, 0 to 10 VDC, 4 to 20 ma Carbon Dioxide Output, 20 kOhms NTC Thermistor Temperature Output, 0 to 5 VDC, 0 to 10 VDC, 4 to 20 ma RH Output </strong> </p> <p>NDIR CO2 Sensor, Universal CO2/RH Outputs </p> <p><strong>Series CDTR Carbon Dioxide, Relative Humidity and Temperature Transmitters </strong> reduce the number of sensors mounted on a wall or in a duct. By combining CO2, RH, and temperature in one device, system integrators are able to lower installation time of mounting multiple housings, while lowering material cost at the same time. Even with the three sensors combined into a single unit, replacement cost is not increased due to the pluggable nature of the humidity sensor, which allows it or the temperature to be replaced at a fraction of the cost of a new CO2 transmitter. </p> <p>Like our popular Series CDT Carbon Dioxide Transmitter, a single-beam dualwavelength non-dispersive infrared (NDIR) sensor is used to automatically correct the measurement in both occupied* and unoccupied buildings against light source aging effects. The single-beam dual-wavelength sensor technology provides a higher level of accuracy compared to Automatic Baseline Correction methods which can unintentionally shift the calibration based on CO2 levels and barometric pressure conditions. In order to achieve the best possible accuracy, the Series CDTR also includes digital barometric pressure adjustment and the ability to field-calibrate the sensor. </p> <p> When ordering a duct mount configuration or a wall mount configuration without the display, the Model A- 449 or A-449A remote LCD display can plug into the miniature connector port on the transmitter. The display can be configured to display temperature only, relative humidity only, CO2 only, CO2 and humidity, or CO2 and temperature. Push buttons are standard on all configurations of the transmitters for access to the menu structure, but wall mount configurations can be ordered without the buttons. To prevent tampering, the action of the buttons can be locked out using an internal jumper selection. Menu items that can be accessed via the push buttons include: engineering units, relay output set points, display configuration, transmitter output scaling, ambient barometric pressure, and field calibration of the transmitter. </p> <p>*For buildings occupied 24 hours per day, it is recommended that calibration be verified every 6 to 12 months depending on application. </p> <p><strong>Product Applications </strong> </p> <p>On Demand Ventilation </p> <p><strong>Approvals </strong> </p> <ul><li>CE Approval </li> <li>RoHS </li> </ul>
tierPrice1252

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comCDTR-2E4F41Contact Us11 @ $252.00
heavydutydepot.comCDTR-2E4F4111 @ $252.00
GalcoCDTR-2E4F4-DWYR111 @ $226.85
MegadepotCDTR-2E4F411
cappusa.com4116600111 @ $0.00
Allied Electronics7207617911
us.rs-online.com72076179111 @ $268.66, 3 @ $261.02
RadwellCDTR-2E4F411
TranscatCDTR-2E4F4111 @ $303.20
