| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 32UP91 | 1 | 1 | ||
| AG3CEP | 1 | 1 | 1 @ $1071.13 | ||
| sustainablesupply.com | C1514430 | 1 | Add to Cart | 1 | 1 @ $965.09 |
| 182TTDBD6012 | 1 | 4 | 1 | 1 @ $869.00 | |
| 182TTDBD6012-MARA | 1 | 1 | 1 @ $664.12 | ||
| Platt.com | 2109250 | 1 | 1 | ||
| GT2412A | 1 | 1 | 1 @ $0.00 | ||
 Zoro | G8818677 | 2 | 2 | 1 @ $719.24 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

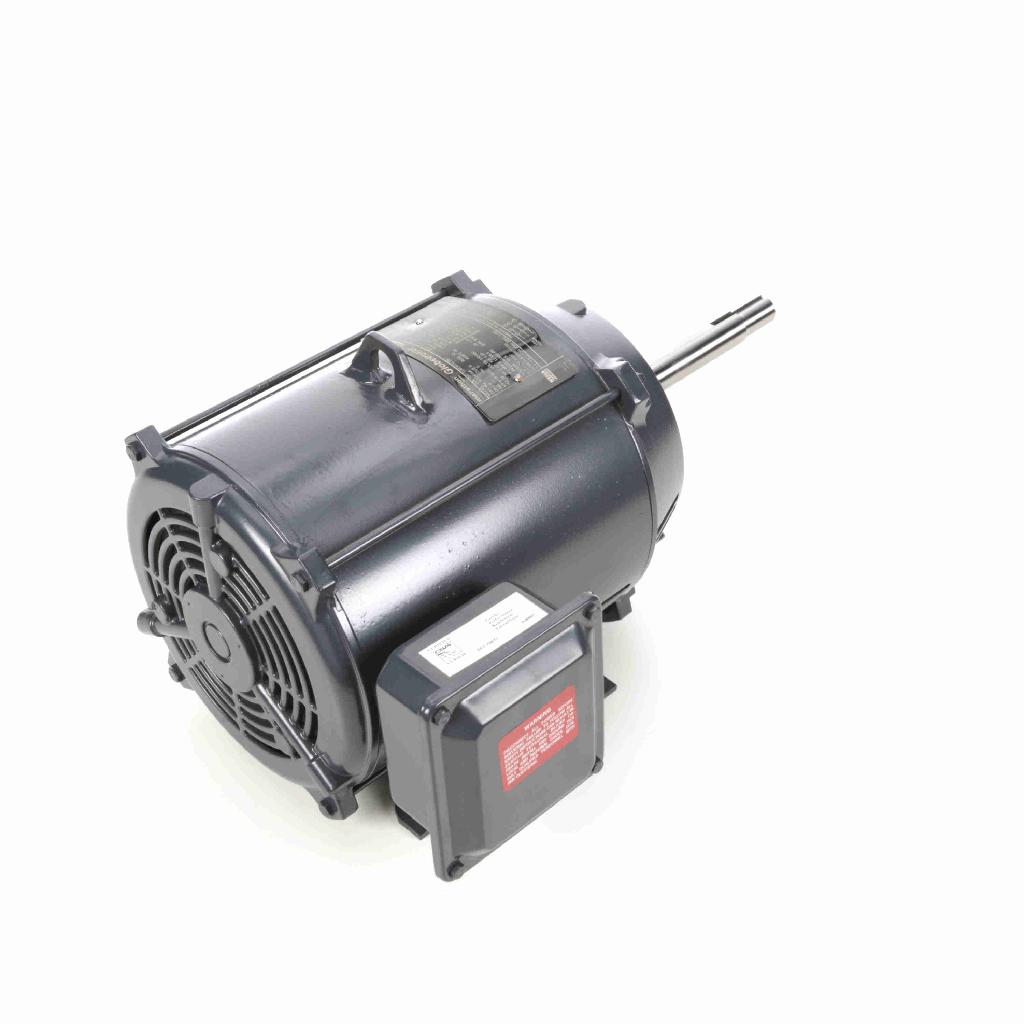

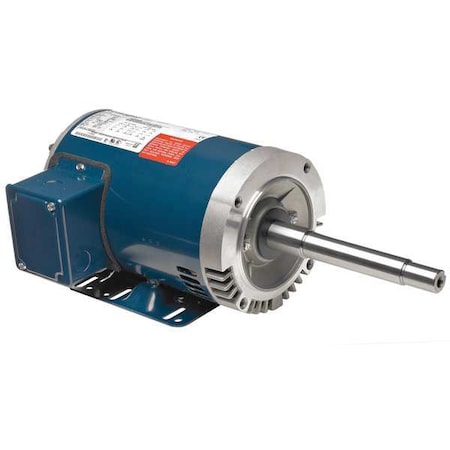

Marathon Motors 5 HP Close-Coupled Pump Motor,3-Phase,3505 Nameplate RPM,230/460 Voltage,182JP
Brand: CAI - MARATHON MOTORS
The Marathon Motors close-coupled pump motor is a 3-phase continuous-duty motor for use in commercial and industrial pumping applications. This TEFC motor is suitable for use in dirty, dusty, and nonhazardous applications. JP threaded Open dripproof Rigid base<br /><br /> Item: Close-Coupled Pump Motor<br /> Motor Application: Pump<br /> Motor Sub Application: Fire Pump<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 5<br /> Nameplate RPM: 3505<br /> Frame: 182JP<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 230/460<br /> Full Load Amps: 12.4/6.2<br /> Phase: 3<br /> Hz: 60/50<br /> Motor Mounting Type: Face/Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 7/8"<br /> Shaft Length: 7-5/16"<br /> Motor Shaft Design: JP Threaded<br /> Length Less Shaft: 10-5/8"<br /> Overall Length: 17-15/16"<br /> Ins. Class: F<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Nominal Efficiency: 89.5%<br /> Motor Efficiency Group: Energy Efficient<br /> Inverter Rated: Yes<br /> Standards: UL Recognized (E49747), CSA Certified (LR2025)<br />
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | 182TTDBD6012 |
| Label | CAI - MARATHON MOTORS |
| Manufacturer | CAI - MARATHON MOTORS |

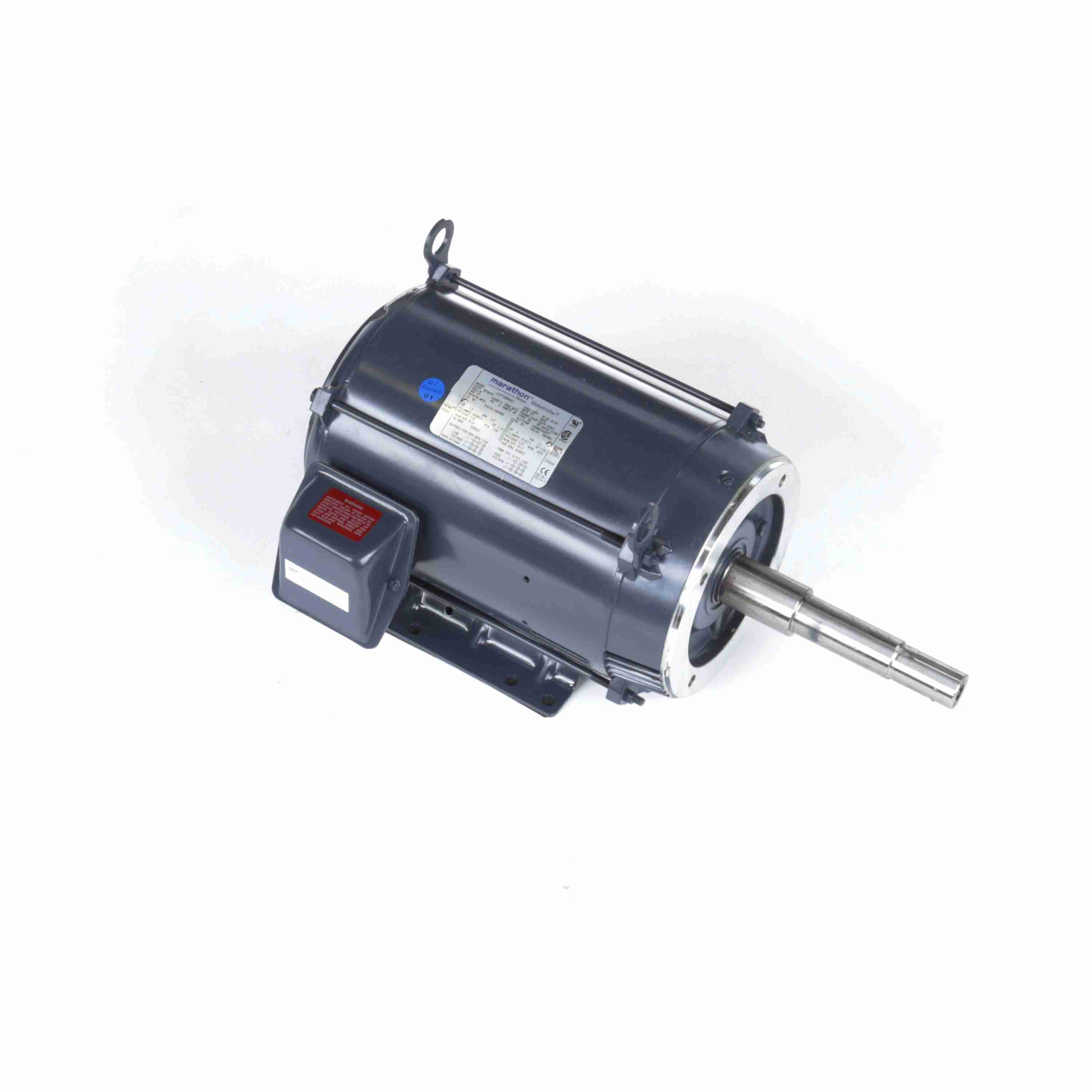

Marathon Motors 5 HP Close-Coupled Pump Motor,3-Phase,3450 Nameplate RPM,230/460 Voltage,182JP
Brand: CAI - MARATHON MOTORS
<br /><br /> Item: Close-Coupled Pump Motor<br /> Motor Application: Pump<br /> Motor Sub Application: Close-Coupled Pump<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 5<br /> Nameplate RPM: 3450<br /> Frame: 182JP<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 230/460<br /> Full Load Amps: 12.4/6.2<br /> Phase: 3<br /> Hz: 60/50<br /> Motor Mounting Type: Rigid Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 1-3/16"<br /> Shaft Length: 7-5/16"<br /> Motor Shaft Design: JP Threaded<br /> Length Less Shaft: 13-15/16"<br /> Overall Length: 20-7/16"<br /> Ins. Class: F<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Nominal Efficiency: 87.5%<br /> CC Number: CC003A<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Inverter Rated: Yes<br /> Standards: UL Recognized (E49747), CSA Certified (LR2025), CE
Listing
| Product group | BISS Basic |
|---|---|
| Product type | MECHANICAL_COMPONENTS |
| Part number | 182TTDBD6012 |
| Label | CAI - MARATHON MOTORS |
| Manufacturer | CAI - MARATHON MOTORS |
