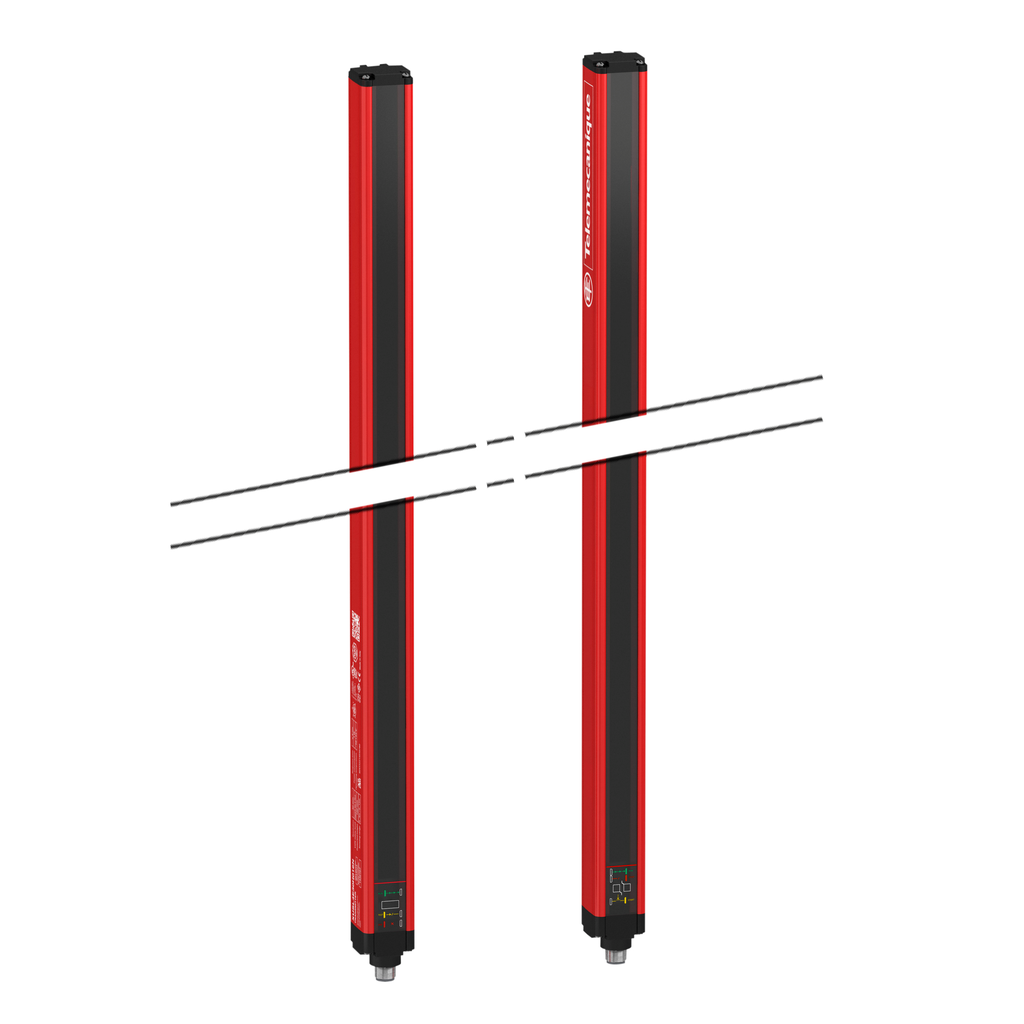

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave1, For body protection, 3 Beams, Hp = 810 mm | Mayer Electric

SQUARE D . SQDXUSL4E3BB081NS1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00Telemecanique Safety light curtains XUSL
Attribute01810 mm
Attribute02selected by wiring
Attribute03for body protection
Attribute04400 mm
Attribute053
Attribute06safety light curtain type 4
Attribute070-12 m by cabling || 0-4 m by cabling
Attribute082 safety outputs OSSD solid-state PNP arc suppression)
Attribute09XUSL4E
Attribute10manual || automatic
Attribute1118 months
Attribute121 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
Attribute13test || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults
Attribute1442 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Attribute15red RAL 3000
Attribute16standard distance
Attribute17by fixing brackets
Attribute18aluminium casing || polycarbonate front panel || polypropylene end caps
Attribute192 A
Attribute20adjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM
Attribute21IR LED 950 nm
Attribute2224 V
Attribute23transmitter-receiver system
Attribute24daisy chain slave1
Attribute25CE
Attribute260.4 A safety outputs OSSD
Attribute27power supply IEC 61496-1 || power supply IEC 60204-1
Attribute28DC
Attribute292.5 ? at 3 m
Attribute301.6 kg
Attribute311 multi-colour LED transmitter || 2 dual colour LEDs receiver
Attribute3224 V DC +/- 20 %
Attribute33ENVEOLI1406015EN
Attribute34, Attribute35, Attribute38, Attribute42Yes
Attribute36ENVPEP1406015EN
Attribute37Green Premium product
Attribute39Pro-active compliance (Product out of EU RoHS legal scope)
Attribute40Free of Substances of Very High Concern above the threshold
Attribute41Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute43cULus || CE || T?V
Attribute44-30-55 ?C || 14-131 ?F
Attribute4589/655/EEC - work equipment || 89/336/EEC - electromagnetic compatibility || 98/37/EEC - machinery
Attribute46-13-158 ?F || -35-70 ?C
Attribute4720 year(s)
Attribute480-95 % without condensation
Attribute49PFHd = 7.55E-9 1/h IEC 61508
Attribute5010 gn 16 ms IEC 61496-1
Attribute51resistance to light disturbance EN/IEC 61496-2
Attribute520.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
Attribute53IP65 || IP67
Attribute54type 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
AttributeKey00Range Of Product
AttributeKey01, height_AttribHeight Protected
AttributeKey02Control Type
AttributeKey03Product Specific Application
AttributeKey04Distance Between Axis
AttributeKey05Number Of Beams
AttributeKey06Product Or Component Type
AttributeKey07[Sn] Nominal Sensing Distance
AttributeKey08Output Type
AttributeKey09Device Short Name
AttributeKey10Type Of Start
AttributeKey11Warranty
AttributeKey12Electrical Connection
AttributeKey13Function Available
AttributeKey14Current Consumption
AttributeKey15Housing Colour
AttributeKey16Offer Type
AttributeKey17Fixing Mode
AttributeKey18Material
AttributeKey19[Ie] Rated Operational Current
AttributeKey20Kit Composition
AttributeKey21Emission
AttributeKey22Output Voltage
AttributeKey23Detection System
AttributeKey24Topology
AttributeKey25Marking
AttributeKey26Output Current Limits
AttributeKey27Supply
AttributeKey28Output Circuit Type
AttributeKey29[Eaa] Effective Aperture Angle
AttributeKey30, Weight_AttribNet Weight
AttributeKey31Local Signalling
AttributeKey32[Us] Rated Supply Voltage
AttributeKey33Circularity Profile
AttributeKey34Rohs Exemption Information
AttributeKey35Mercury Free
AttributeKey36Environmental Disclosure
AttributeKey37Sustainable Offer Status
AttributeKey38Toxic Heavy Metal Free
AttributeKey39Eu Rohs Directive
AttributeKey40Reach Regulation
AttributeKey41California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey42Reach Free Of Svhc
AttributeKey43Product Certifications
AttributeKey44Ambient Air Temperature For Operation
AttributeKey45Directives
AttributeKey46Ambient Air Temperature For Storage
AttributeKey47Service Life
AttributeKey48Relative Humidity
AttributeKey49Safety Reliability Data
AttributeKey50Shock Resistance
AttributeKey51Environmental Characteristic
AttributeKey52Vibration Resistance
AttributeKey53Ip Degree Of Protection
AttributeKey54Safety Level
DimensionUnitmm
Extra Product NameSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave1, For body protection, 3 Beams, Hp = 810 mm | Mayer Electric
UPC3389119620307
Weight1.6
WeightUnitkg
height810.0
jsonUrlData/Product/SQUARE-D-Safety-light-curtain-type-4-Telemecanique-Safety-light-curtains-XUSL-XUSL-Slave1-For-body-protection-3-Beams-Hp-810-mm-3389119620307
jsonUrlData258fff408-29a8-454f-bcc6-aeea0058b3b7
moq, multiple, tierMinQty11
MPN, SKUSQDXUSL4E3BB081NS1
qtyInStock0
tierPrice11735.48

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXUSL4E3BB081NS1111 @ $1735.48
