Kyocera

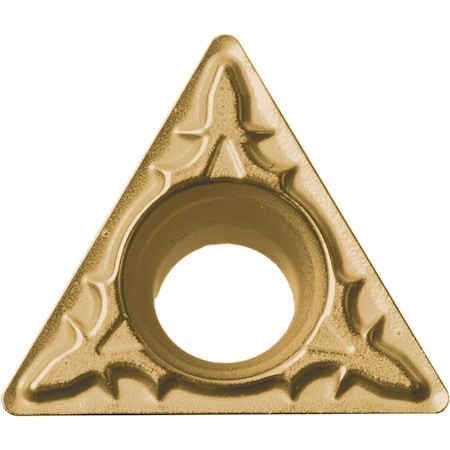

<ul><li>Insert for External Turning, Boring, Internal Facingm, Copying, Back Boring</li><li>Low Carbon Steel with 3 Cutting Edges</li><li>MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance</li><li>Application: Recommended cermet for long tool life and stable machining for high speed continuous cuts</li></ul><p>Product Details:</p><ul><li>Insert Style: TPMT</li><li>Insert Size: 18151</li><li>Chipbreaker: XP</li><li>Insert Grade: PV710</li><li>Material: Cermet</li><li>Coating Process: PVD</li><li>Coating / Composition: TiCN (MEGACOAT NANO)</li><li>[IC] Inscribed Circle (Decimal Inch): 0.2188</li><li>[IC] Inscribed Circle (mm): 5.56</li><li>[S] Thickness (Decimal Inch): 0.0938</li><li>[S] Thickness (mm): 2.38</li><li>[RE] Corner Radius (Decimal Inch): 0.0156</li><li>[RE] Corner Radius (mm): 0.40</li><li>[D1] Hole Diameter (Decimal Inch): 0.1102</li><li>[D1] Hole Diameter (mm): 2.80</li><li>Rake: Positive</li><li>[AN] Relief Angle (Degree): 11</li><li>Included Angle (Degree): 60</li><li>Primary Workpiece Material: Steel</li><li>Secondary Workpiece Material: Stainless Steel</li><li>Shape: Triangle</li><li>Cutting Edge Style: Low Carbon Steel</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Screw</li><li>Number of Cutting Edges: 3</li><li>Application: External Turning, Boring, Internal Facing, Copying, Back Boring</li><li>Usage Classification: Continuous</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Finishing</li><li>Compatible Holders (Partial): ...-STLPR1.8..., ...-STLPL1.8..., ...-STLPR09-..., ...-STLPL09-..., ...-STUPR1.8, ...-STUPL1.8, ...-STXPR09-..., ...-STXPL09-...</li></ul><p >TN610 / TN620 / PV710 / PV720 Brochure</p>
