Mean Well Power Supply, Ac-Dc, 24V, 5A - EDR-120-24

<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Protections: Short circuit / Overload / Over voltage / Over temperature</p> <p>Cooling by free air convection</p> <p>Can be installed on DIN rail TS35 / 7.5 or 15</p> <p>UL508 (industrial control equipment) listed</p> <p>EN61000-6-2 (EN50082-2) industrial immunity level</p> <p>100% full load burn-in test</p> <p>Low cost</p> <p>2 years warranty for EDR series</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:90~264VAC; 127~370VDC</p> <p>AC inrush current (max.):Cold start, 35A at 230VAC</p> <p>DC adjustment range:12V: 12~14V, 24V: 24~28V, 48V: 48~55V</p> <p>Current adjustment range :10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance</p> <p>Overload protection:105%~130% Constant current limiting, auto-recovery</p> <p>Over voltage protection:14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover</p> <p>Over temperature protection:Shut down o/p voltage, re-power on to recover</p> <p>Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</p> <p>Working temperature:-20~+60!aC (refer to output derating curve</p> <p>Safety standards:UL60950-1, TUV EN60950-1 approved</p> <p>EMC standards:EN55022 classA, EN61000-3-2(125W for EDR-150),3, <p>EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)</p> <p>Connection (screw DIN terminal):I/P: 3 poles, O/P: 4 poles</p> <p>Dimension (LxWxH) (mm) :40x 125.2x 113.5</p>

This item will ship EDR-120-24*1pcs,enjoy shopping and best wishes!

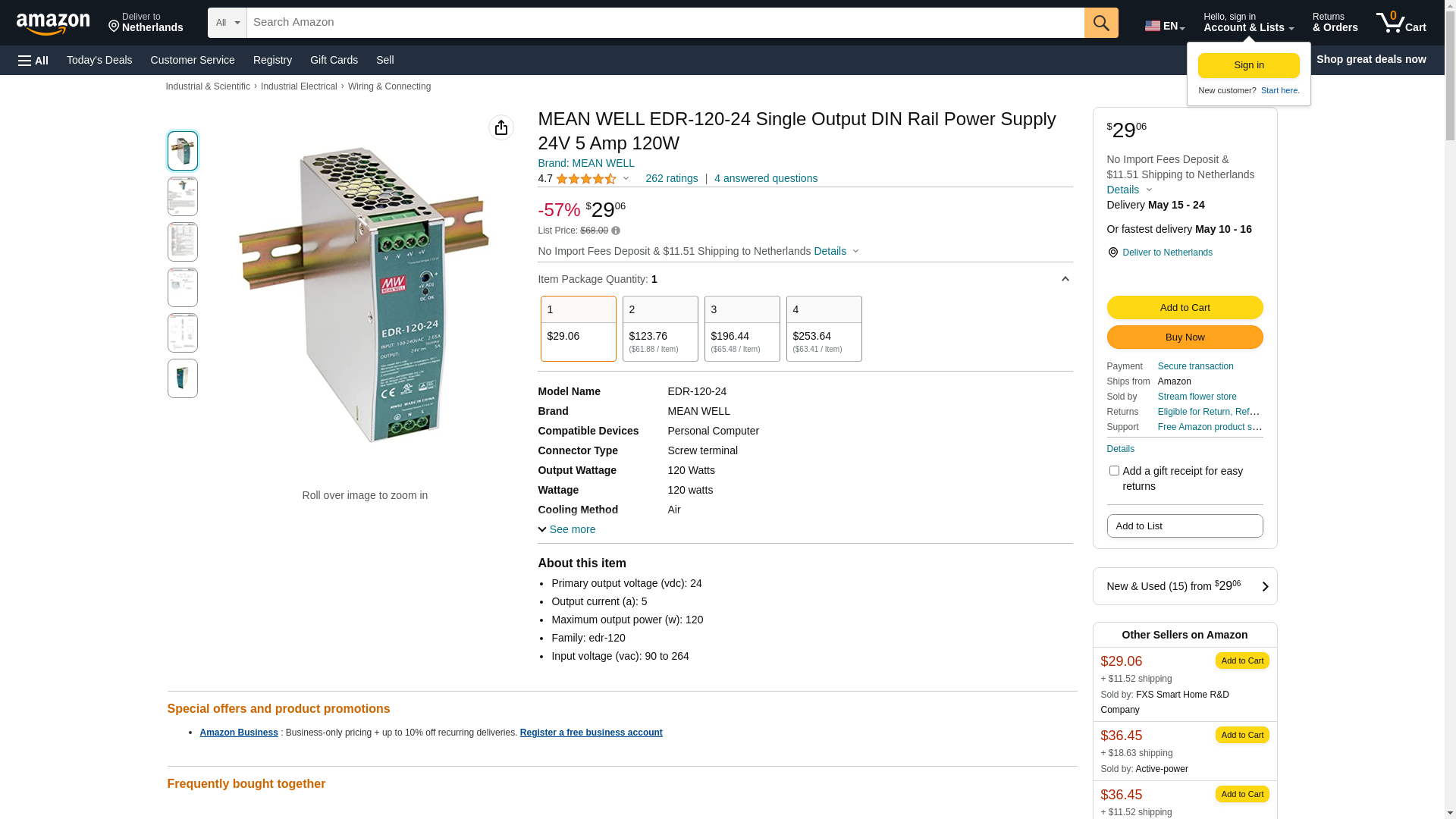

MEAN WELL EDR-120-24 Single Output Industrial DIN RAIL Power Supply

The EDR-120 is an economical lightweight 120W rail type power supply that complies with German industry standard and is suitable for mounting on tracks TS-35/7.5 or TS-35/15, the body is designed to be 40mm wide in the cabinet and the entire range is available from 90Vac to 264Vac and complies with BS EN/EN610000000000-3. - 2 - 2 - EU EU EU Specified harmonic current specification

Single output DIN rail power supply 24 volts 5 amps 120 watts 24 volts 5 amps output power (W): 120 ripple and noise (mV pp): 100 load regulation (): 1 percent line regulation ( ): 0.5 percent efficiency: 87.5 percent Size (L x W x H) inches: 4.5 x H) inches: 4.5 x 1.6.5 x 1.5 x 1.6 x 1.5 xx 4.9 Built-in full range universal AC input active PFC function protection: short circuit, overvoltage, overload, free air convection cooling overtemperature 100 percent full load burned 2-year warranty test detailed specifications: voltage Primary Output (VDC): 24 Output Current (A): 5 Maximum Output Power (W): 120 Family: EDR-120 Input Voltage (VAC): 90 Input Frequency: 47 A 63 Maximum Input Current ( a): 2.25 output connector: screw terminal efficiency (percentage): 87.5 operating temperature: -20 operating temperature ento: max. (CEL): 60 Length (inches): 1.57 width (inches): 4.93 height (inches): 4.47 agency approvals: UL cul TUV CB CE color: stigo silver. le: DIN.

MEAN WELL EDR-120-24 Single Output Industrial DIN RAIL Power Supply

MEAN WELL EDR-120-24 Single Output DIN Rail Power Supply 24V 5 Amp 120W (4)

MEAN WELL EDR-120-24 Single Output Industrial DIN RAIL Power Supply

The EDR-120 is an economical lightweight 120W rail type power supply that complies with German industry standard and is suitable for mounting on tracks TS-35/7.5 or TS-35/15, the body is designed to be 40mm wide in the cabinet and the entire range is available from 90Vac to 264Vac and complies with BS EN/EN610000000000-3. - 2 - 2 - EU EU EU Specified harmonic current specification

Single output DIN rail power supply 24 Volts 5 Amps 120 Watts 24 Volts 5 Amps specifications output power (W): 120 ripple & noise (mV p-p): 100 load regulation (): 1 percent line regulation (): 0.5 percent efficiency: 87.5 percent size (L x W x H) inches: 4.5 x 1.6 x 4.9 universal AC input/full range built-in active PFC function protections: short circuit, over voltage, overload, over temperature cooling by free air convection 100 percent full load burn-in Test 2 year warranty detailed specifications: primary output voltage (VDC): 24 output current (a): 5 maximum output power (W): 120 family: edr-120 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 2.25 output connector Type: screw terminal efficiency ( percent ): 87.5 operating temperature-min (CEL): -20 operating temperature-max (CEL): 60 Length (inch): 1.57 width (inch): 4.93 height (inch): 4.47 agency approvals: UL/cul/TUV/CB/CE color: silver style: DIN.

Single output DIN rail power supply 24 Volts 5 Amps 120 Watts 24 Volts 5 Amps specifications output power (W): 120 ripple & noise (mV p-p): 100 load regulation (): 1 percent line regulation (): 0.5 percent efficiency: 87.5 percent size (L x W x H) inches: 4.5 x 1.6 x 4.9 universal AC input/full range built-in active PFC function protections: short circuit, over voltage, overload, over temperature cooling by free air convection 100 percent full load burn-in Test 2 year warranty detailed specifications: primary output voltage (VDC): 24 output current (a): 5 maximum output power (W): 120 family: edr-120 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 2.25 output connector Type: screw terminal efficiency ( percent ): 87.5 operating temperature-min (CEL): -20 operating temperature-max (CEL): 60 Length (inch): 1.57 width (inch): 4.93 height (inch): 4.47 agency approvals: UL/cul/TUV/CB/CE color: silver style: DIN.

Single output DIN rail power supply 24 Volts 5 Amps 120 Watts 24 Volts 5 Amps specifications output power (W): 120 ripple & noise (mV p-p): 100 load regulation (): 1 percent line regulation (): 0.5 percent efficiency: 87.5 percent size (L x W x H) inches: 4.5 x 1.6 x 4.9 universal AC input/full range built-in active PFC function protections: short circuit, over voltage, overload, over temperature cooling by free air convection 100 percent full load burn-in Test 2 year warranty detailed specifications: primary output voltage (VDC): 24 output current (a): 5 maximum output power (W): 120 family: edr-120 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 2.25 output connector Type: screw terminal efficiency ( percent ): 87.5 operating temperature-min (CEL): -20 operating temperature-max (CEL): 60 Length (inch): 1.57 width (inch): 4.93 height (inch): 4.47 agency approvals: UL/cul/TUV/CB/CE color: silver style: DIN.

Single output DIN rail power supply 24 Volts 5 Amps 120 Watts 24 Volts 5 Amps specifications output power (W): 120 ripple & noise (mV p-p): 100 load regulation (): 1 percent line regulation (): 0.5 percent efficiency: 87.5 percent size (L x W x H) inches: 4.5 x 1.6 x 4.9 universal AC input/full range built-in active PFC function protections: short circuit, over voltage, overload, over temperature cooling by free air convection 100 percent full load burn-in Test 2 year warranty detailed specifications: primary output voltage (VDC): 24 output current (a): 5 maximum output power (W): 120 family: edr-120 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 2.25 output connector Type: screw terminal efficiency ( percent ): 87.5 operating temperature-min (CEL): -20 operating temperature-max (CEL): 60 Length (inch): 1.57 width (inch): 4.93 height (inch): 4.47 agency approvals: UL/cul/TUV/CB/CE color: silver style: DIN.

Features : Meanwell Power Supply 24VDC Universal AC input / Full range Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Can be installed on DIN rail TS-35 / 7.5 or 15 UL508 (industrial control equipment) approved EN61000-6-2(EN50082-2) industrial immunity level 100% full load burn-in test
