Order MG-F16BN-9P206-19-NIST by Meriam Pressure Gauge - US Mega Store

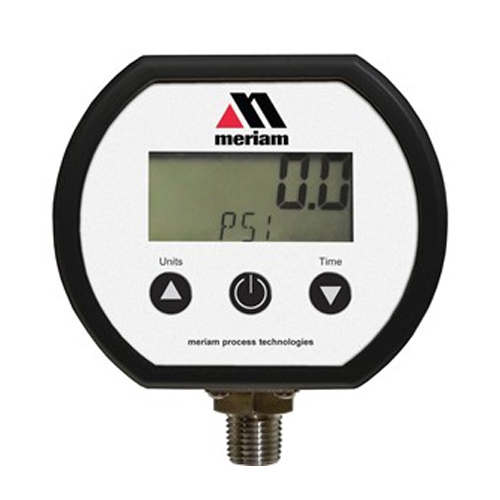

Meriam . MG-F16BN-9P206-19-NIST

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMeriam
Attribute00, Attribute110 to 500 PSIG
Attribute01, Attribute12Optional: -HA ±0.1% FS ±1 LSD -NC NIST traceable test report and calibration data
Attribute02, Attribute133 readings per second nominal display update rate 4½ digit LCD, 0.5" H, 5 character 0.25" H alphanumeric lower display CoNTRoLS & FUNCTioNS Front button turns gauge on or off, zeros gauge, and cycles through min/max functions Internal push buttons for selection of engineering units, selection of auto shutoff times, and calibration
Attribute03, Attribute14Pass code protected calibration Non-interactive zero, span, and linearity, ±10% of range
Attribute04, Attribute155 minute default User selectable times ranging from 1 minute to 8 hours or front button on/off
Attribute05, Attribute162 AA alkaline batteries Approximately 2000 hours battery life Low battery symbol on display when batteries must be replaced
Attribute06, Attribute17Gauge: 9 ounces (approximately); Shipping weight: 1 pound (approximately)
Attribute07, Attribute18ABS/polycarbonate NEMA 4X case, rear gasket, polycarbonate label
Attribute08, Attribute191/4" NPT male, 316L SS
Attribute09, Attribute20All wetted parts are 316L SS, compatible with most liquids and gases
Attribute10, Attribute214 times sensor pressure rating, or 10,000 psi, whichever is less
AttributeKey00, AttributeKey11Range
AttributeKey01, AttributeKey12Accuracy
AttributeKey02, AttributeKey13Display
AttributeKey03, AttributeKey14Calibration
AttributeKey04, AttributeKey15Automatic Shutoff
AttributeKey05, AttributeKey16Power
AttributeKey06, AttributeKey17, Weight_AttribWeight
AttributeKey07, AttributeKey18Material
AttributeKey08, AttributeKey19Connection Size
AttributeKey09, AttributeKey20Material, Media Compatibility
AttributeKey10, AttributeKey21Burst Pressure
CategoryL1Process Control & Automation
CategoryL2Gauges
CategoryL3Pressure & Vacuum
CategoryL4Meriam MG-F16BN-9P206-19-NIST
ConditionNEW
Extra Product NameOrder MG-F16BN-9P206-19-NIST by Meriam Pressure Gauge - US Mega Store
Weight9
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUMG-F16BN-9P206-19-NIST
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Meriam, MG-F16BN-9P206-19-NIST, Digital Pressure Gauge with NIST Certificate </strong> </p> MG-F16BN-Z9P206-19-NIST, Digital Pressure Gauge NIST Certificate with Data <p>The Meriam Instrument MGF16BN digital pressure gauge successfully addresses the modern demands of process pressure measurement. Pressure ranges are available to 5,000 PSIG at standard accuracy of &#177; 0.25% of full scale and optional accuracy of &#177;0.1% of full scale. Compound gauges that can be used for positive pressure measurements and vacuum measurements are also available. </p> <p> The display is a 4 1/2 digit LCD with 0.5 high numerals and a lower alphanumeric display for engineering units and to aid in set up. Each gauge includes up to 15 field selectable engineering units depending on the sensor range. The selectable units include PSIG, kiloPascals, megaPascals, millibar, bar, atmospheres, kilograms per square centimeter, grams per square centimeter, centimeters of water, ounces per square inch, feet of water, inches of water, millimeters of mercury, Torr, and inches of mercury. </p> <p> Other standard features include min/max capture, zeroing, pass code program lock-out, adjustable display shutoff time and field recalibration. The housing is ABS/polycarbonate and is NEMA 4X rated. Wetted components are 316L stainless steel for compatibility with many process fluids. Process connection is via a 3/4 MNPT 316L stainless steel fitting. The gauge is powered by two AA alkaline batteries. </p> <p> Typical applications are instrumentation and control in the process industries, hydraulics, pneumatics, industrial gases and OEM's. </p> <p><strong> Advantages: </strong> </p> <ul><li>&#177;0.25% Test Gauge Accuracy (optional 0.1% available) </li> <li>316L Stainless Steel Wetted Parts </li> <li>NEMA 4X </li> <li>Capture Minimum and Maximum Readings </li> <li>Push Button Zero </li> <li>15 Selectable Engineering Units </li> <li>Selectable Auto Shutoff Times </li> </ul> <strong>Impressive Accuracy and Wide Range: </strong> <ul><li>&#177;0.25% of Full Scale Test Gauge Accuracy </li> <li>3000 PSIG Range: 5000 PSIG </li> <li>5000 PSIG Range: 7500 PSIG </li> </ul>
tierPrice1764.4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comMG-F16BN-9P206-19-NIST1-211 @ $764.40
MegadepotMG-F16BN-9P206-19-NIST111 @ $764.40
heavydutydepot.comMG-F16BN-9P206-19-NIST1-211 @ $764.40
