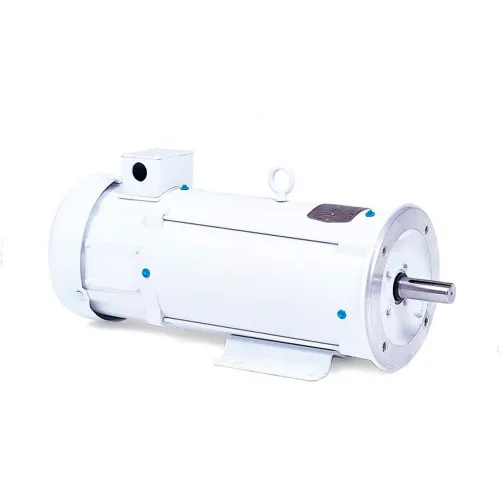

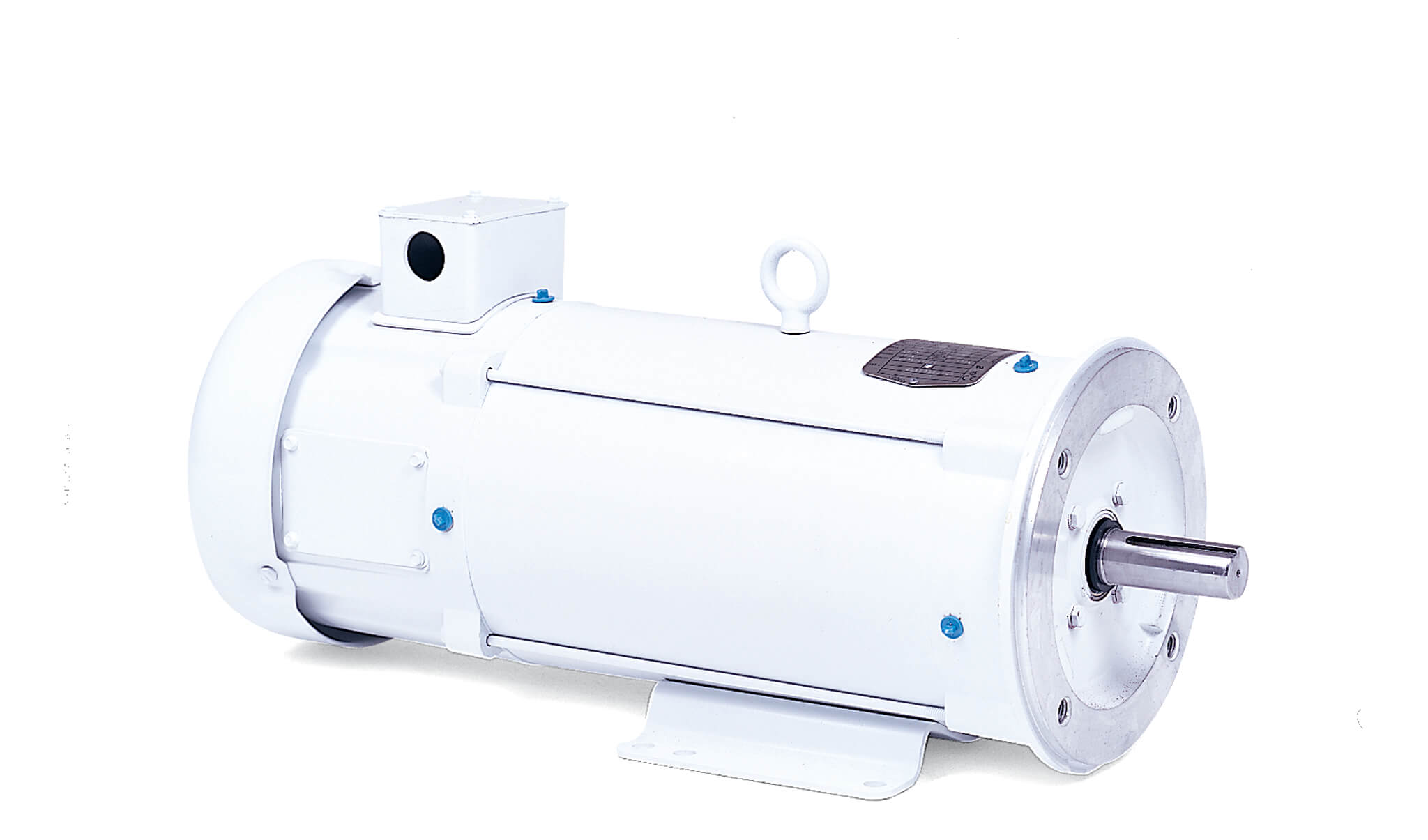

Baldor CDPWD3440, DC General Purpose Permanent Magnet Motor, 3/4 HP, 90 Volts, 7.6 Amps, 1750 RPM, TEFC Enclosure, 56C Frame, 3428P Motor Type, Steel Frame

Baldor Electric, CDPWD3440, .75HP, 1750RPM, 90V, 56C Frame, C-Face Flange, Foot Mount, TEFC, Washdown Duty Motor

Baldor-Reliance Motor CDPWD3440, .75HP, 1750RPM, DC, 56C, 3428P, TEFC, F1

Baldor CDPWD3440.75HP 1750RPM DC 56C 3428P TEFC F1

<p><ul><li>NEMA C-face with removable base</li><li>Tach adaptable</li><li>Class F insulation</li><li>Double sealed ball bearings</li><li>20:1 constant torque speed range</li><li>UL and CSA recognized</li><li>No dual mounting base holes on 1/4 - 1/2 hp</li><li>Applications: Conveyors, Mixers, packaging machinery and other applications requiring variable speed and constant torque Washdown Duty</li><li>Moisture sealant on bolt heads between frame and endplates, neoprene gasketed conduit box</li><li>Double sealed ball bearings</li><li>Forsheda running contact v-ring slinger</li><li>Stainless steel shaft</li><li>Electrostatic epoxy paint coating</li><li>Class F insulation</li><li>20:1 constant torque speed range</li><li>Tach adaptable</li><li>Applications: Food processing conveyors and feeders exposed to high pressure wash down</li><li>1/4 to 1/2 hp motors are TENV, all others are TEFC</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Family:-Permanent Magnet </li><li> Motor Type:-Brushed </li><li> Horsepower:-3/4 hp </li><li> DC Armature Voltage:-90 V </li><li> Base RPM:-1750 rpm </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> NEMA / IEC Frame Size:-56C </li><li> Armature Full Load Current:-7.6 A </li><li> Overall Length (C-Dimension):-14.59 in </li><li> Insulation Class:-F </li><li> Standards Met:-NEMA </li><li> Drive End Bearing:-6203 </li><li> Weight:-38 lbs </li><li> Opposite Drive End Bearing:-6203 </li><li> Recommended Control:-Bcwd140 </li><li> Typical Application:-Food Processing Conveyors and Feeders Where The Motor is Exposed to High Pressure Wash Down </li><li> Wattage:-559.5 W </li></ul></p>
