Order CV42CSV1400 by Titan CV42-CS 14" CS Dual Disc Wafer Check Valve, Viton - US Mega Store

Titan . CV42CSV1400

Gallery

Attributes

Brand name, Manufacturer nameTitan
ManufacturerTitan Titan Flow Control
CategoryL1Plumbing
CategoryL2, DisplayNameValves
CategoryL3Check
CategoryL4Titan CV42CSV1400
ConditionNEW
Extra Product NameOrder CV42CSV1400 by Titan CV42-CS 14" CS Dual Disc Wafer Check Valve, Viton - US Mega Store
moq, multiple, tierMinQty1, Case, NumberOfItems, Number_of_items1
MPN, SKU, Part Number, PartNumber, Part_numberCV42CSV1400
qtyInStockContact Us
snippet<p><strong>CV42-CS 14" Carbon Steel Dual Disc Wafer Type Check Valve Stainless Steel Disc and Shaft, Inconel Spring, Viton Seat </strong> </p> <p><strong>Features: </strong> </p> <ul><li><strong>Minimal head loss. </strong> Contour of body provides a short and straight flow path that generates very little turbulence. Additionally, the spring-loaded discs are designed with very low cracking pressure which reduces the amount of energy required to open the valve </li> <li><strong>Quick closure to reduce water hammer. </strong> Shut-off is achieved via the fully automatic, spring-assisted discs that close near zero flow velocity. The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum </li> <li><strong>Designed for long service life. </strong> The spring and discs are designed to allow the discs to lift linearly before pivoting to avoid the disc heal from scrubbing the sealing surface. Also, discs are equipped with cast-in shock bumpers that help to reduce wear and tear on internal components. </li> <li><strong>Fugitive emission design. </strong> The retainer-less body design eliminates potential leak paths to the environment so there are nobody emissions. </li> </ul>
tierPrice13834
Product GroupBISS
ASIN, AsinB01E9N3RIK
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Brand, Label, Man, Publisher, StudioTitan Flow Control
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 3021479011
ClassificationId383615011
FetchTime1568138957 1649930512 1682486379 1705151900
Height, Width300 75
ItemClassificationBASE_PRODUCT

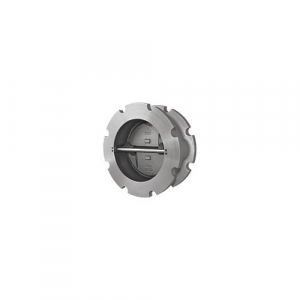

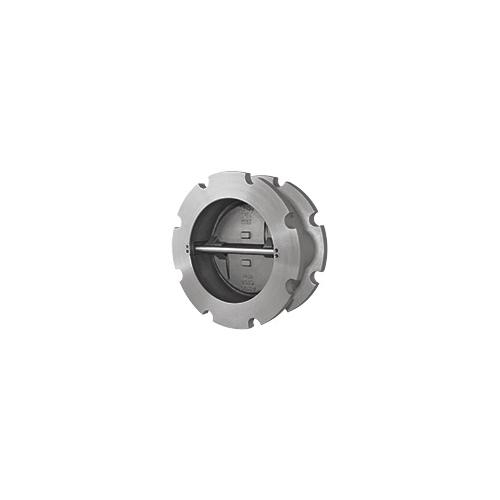

ItemName, Item_name, TitleTitan 14.0 CV42-CS-S-S-3-X Dual Disc Wafer Check Valve, 14", Flanged, Carbon Steel
Item_type_keywordindustrial-valves
Linkhttps://m.media-amazon.com/images/I/21fQU5gVEIL._SL75_.jpg https://m.media-amazon.com/images/I/21fQU5gVEIL.jpg
Marketplace_idATVPDKIKX0DER
ProductGroupBISS BISS Basic
ProductTypeVALVE
ProductTypeNameLAB_SUPPLY
Product_descriptionTitan CV 42-CS series dual disc wafer check valve with 14" flanged connection has 285 psi pressure rating and is made of carbon steel Brand Name|Titan#MFR Part Number|14.0 CV42-CS-S-S-3-X#Interchanges with|Mueller 14.0 72-DHH-4-X#UNSPSC|40141637#Item|Check Valve#Type|Dual Disc, Wafer#Series|CV 42-CS#Nominal Size|14 Inch#End Style|Flanged#Pressure Class|ANSI Class 150#Pressure Rating|285 psi WOG#Inside Diameter|13.26 Inch#Outside Diameter|13.78 Inch#Coefficient of Volume|5400 Cv#Cracking Pressure|0.25 psi#Media|Water, Oil, Gas#Body Material|Carbon Steel#Material Specifications|ASTM A216 Grade WCB#Seat Material|Viton#Disc Material|ASTM A351 Grade CF8M Stainless Steel#Stem Material|ASTM A276 Grade 316 Stainless Steel#Spring Material|Inconel X-750#Temperature Rating|100 deg F#Dimensions|7-1/4 Inch Width#Application|Water and Waste Water, Pulp and Paper, Chemical and Petrochemical, Power, Petroleum, Oil and Gas#Standard/Approvals|ANSI/API 594, ANSI/ASME 16.5, API 598
Product_site_launch_date2016-04-14T23:28:47.712Z
URLhttp://ecx.images-amazon.com/images/I/21fQU5gVEIL._SL75_.jpg https://m.media-amazon.com/images/I/21fQU5gVEIL._SL75_.jpg
Unitspixels
VariantMAIN
WebsiteDisplayGrouphome_improvement_display_on_website
WebsiteDisplayGroupNameHome Improvement

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comCV42CSV14001Contact Us11 @ $3834.00
cooneybrothers.com251258111 @ $4535.35
blackhawksupply.comCV42CSV14001Get a Quote1
heavydutydepot.comCV42CSV1400111 @ $3875.00
MegadepotCV42CSV1400111 @ $3875.00
