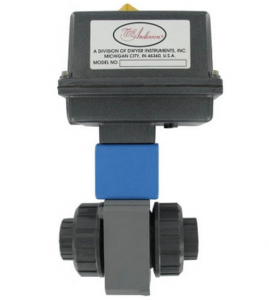

Order PBVPV1206 by W.E. Anderson Automated Ball Valve - Two-Way Plastic - US Mega Store

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute19Compatible liquids or gases
Attribute01, Attribute202-way
Attribute02, Attribute211-1/2"
Attribute03, Attribute22Female NPT or Socket
Attribute04, Attribute23232 psi @ 73°F. Vacuum: 29" Hg
Attribute05, Attribute24Body & End Connections: PVC; Ball & Stem: PVC; Seat: TFE; Stem Seal: EPDM
Attribute06, Attribute2532 to 140°F
Attribute07, Attribute26Stem Bearing: Polypropylene
Attribute08, Attribute27Electric Modulating
Attribute09, Attribute28120 VAC, 50/60 Hz, single phase
Attribute10, Attribute290.75A
Attribute11, Attribute305 sec
Attribute12, Attribute310.75
Attribute13, Attribute32NEMA 4
Attribute14, Attribute33Aluminum with thermal bonding polyester powder finish
Attribute15, Attribute340 to 150°F
Attribute16, Attribute351/2" female NPT
Attribute17, Attribute364 to 20 mA
Attribute18, Attribute37Manual override and visual position indicator except modulating units
AttributeKey00, AttributeKey19Service
AttributeKey01, AttributeKey20Body
AttributeKey02, AttributeKey21Line Size
AttributeKey03, AttributeKey22End Connections
AttributeKey04, AttributeKey23Pressure Limit
AttributeKey05, AttributeKey24Wetted Materials
AttributeKey06, AttributeKey15, AttributeKey25, AttributeKey34Temperature Limit
AttributeKey07, AttributeKey26Other Materials
AttributeKey08, AttributeKey27Type
AttributeKey09, AttributeKey28Power Requirements
AttributeKey10, AttributeKey29Power Consumption (Locked Rotor Current)
AttributeKey11, AttributeKey30Cycle Time (per 90°)
AttributeKey12, AttributeKey31Duty Cycle
AttributeKey13, AttributeKey32Enclosure Rating
AttributeKey14, AttributeKey33Housing Material
AttributeKey16, AttributeKey35Conduit Connection
AttributeKey17, AttributeKey36Modulating Input
AttributeKey18, AttributeKey37Standard Features
CategoryL1Process Control & Automation
CategoryL2Valves
CategoryL3Electric
CategoryL4W.E. Anderson PBVPV1206
ConditionNEW
Extra Product NameOrder PBVPV1206 by W.E. Anderson Automated Ball Valve - Two-Way Plastic - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUPBVPV1206
qtyInStockContact Us
snippet<p><strong>Series PBV Automated Ball Valve - Two-Way Plastic, Connection Size 1-1/2", Electric Modulating 120 VAC Size 200, Plastic Material PVC </strong> </p> <p><strong>The Series PBV </strong> is ideal for services in industrial, chemical, turf and irrigation, and pool and spa applications, as well as for use with potable water. The valve features shear-proof stem designed to prevent leakage in the event of damage, reinforced TFE seats and EPDM seals for longer life, and an all-plastic construction for heavyweight durability at a lightweight cost. </p> <p>Electrically actuated model are weatherproof, NEMA 4, powered by standard 115 VAC supply. </p> <p>The modulating actuator accepts a 4 to 20 mA input for infinite valve positioning. Actuator features include thermal overload protection to withstand stall conditions, visual position indication and a permanently lubricated gear train. </p>
tierPrice12616

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comPBVPV12061Contact Us11 @ $2616.00
heavydutydepot.comPBVPV1206111 @ $2616.00
MegadepotPBVPV120611
