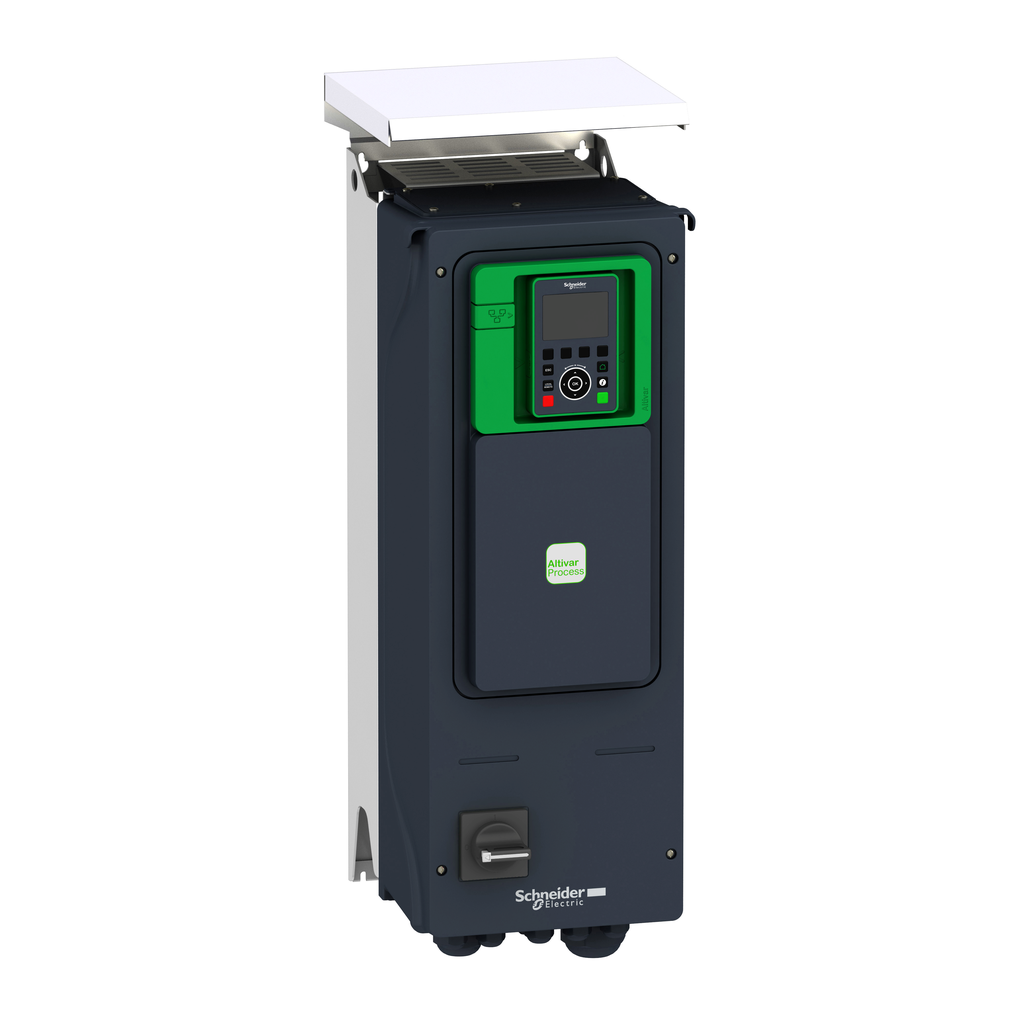

Variable speed drive, Altivar Process ATV600, ATV650, 2.2kW/3 hp -380/480 V, IP55/UL type12, disc.switch | Mayer Electric

SQUARE D . ATV650U22N4EU

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute0050 kA
Attribute01UL type 12 UL 508C
Attribute02asynchronous motors || synchronous motors
Attribute033.8 A 480 V normal duty) || 3.1 A 380 V heavy duty) || 2.9 A 480 V heavy duty) || 4.3 A 380 V normal duty)
Attribute04integrated 50 m EN/IEC 61800-3 category C2 || integrated 150 m EN/IEC 61800-3 category C3
Attribute05Altivar Process ATV600
Attribute060.1-500 Hz
Attribute07variable torque standard || constant torque standard
Attribute08with disconnect switch
Attribute09IP55IEC 60529 || IP55IEC 61800-5-1
Attribute10variable speed drive
Attribute112.4 kVA 480 V heavy duty) || 3.2 kVA 480 V normal duty)
Attribute121.5 kW heavy duty) || 2.2 kW normal duty)
Attribute134...12 kHz with derating factor || 2...12 kHz adjustable
Attribute14380...480 V
Attribute156.2 A 60 s normal duty) || 6 A 60 s heavy duty)
Attribute16380...480 V - 15...10 %
Attribute17Ethernet || Modbus TCP
Attribute1816 preset speeds
Attribute19forced convection
Attribute204 A 4 kHz heavy duty || 5.6 A 4 kHz normal duty
Attribute21process and utilities
Attribute22STO (safe torque off) SIL 3
Attribute234 kHz
Attribute242 hp heavy duty || 3 hp normal duty
Attribute25ATV650
Attribute2650...60 Hz - 5...5 %
Attribute27synchronous reluctance motor || permanent magnet motor
Attribute28slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A communication module, CANopen screw terminals || slot A/slot B digital and analog I/O extension module || slot A/slot B output relay extension module || slot A communication module, Ethernet IP/Modbus TCP/MD-Link || communication module, BACnet MS/TP || communication module, Ethernet Powerlink || slot A communication module, Profibus DP V1
Attribute29line side screw terminal 4...6 mm? || motor screw terminal 4...6 mm? || control removable screw terminals 0.5...1.5 mm?
Attribute30500 kHz
Attribute31678 mm
Attribute32software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
Attribute33linear adjustable separately from 0.01...9999 s
Attribute34relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V DC 5000 mA
Attribute35RTU
Attribute36relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
Attribute37, Attribute49, Attribute863
Attribute38half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Attribute398 bits, configurable odd, even or no parity
Attribute403 phase
Attribute4110.5 kg
Attribute42no impedance
Attribute43configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles
Attribute44analog input 0.012/50 Hz || display unit 0.1 Hz
Attribute45+/- 1 % AO1, AO2 for a temperature variation 60 ?C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 ?C analog input
Attribute46RJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
Attribute47DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2 || DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2
Attribute481.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty)
Attribute50can be suppressed || not available in permanent magnet motor law || adjustable
Attribute51, qtyInStock0
Attribute52wall mount
Attribute532
Attribute54Ethernet || 2-wire RS 485
Attribute55relay output R1, R2, R3 5 mA 24 V DC
Attribute56slave Modbus TCP
Attribute57relay output R1, R2, R3)5 ms +/- 0.5 ms)
Attribute58wall mounted
Attribute59between power and control terminals
Attribute608
Attribute61for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs
Attribute62AO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
Attribute631-247 Modbus serial
Attribute64, moq, multiple, tierMinQty11
Attribute65264 mm
Attribute6610, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Attribute67by DC injection
Attribute68300 mm
Attribute69safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive || thermal protection motor
Attribute70AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Attribute715 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input
Attribute72, Attribute73Yes
Attribute74ENVPEP1508009EN
Attribute75Green Premium product
Attribute76Reference contains Substances of Very High Concern above the threshold
Attribute77Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute78The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute79X
Attribute80ENVEOLI1508009EN
Attribute81Upgraded components available
Attribute82Pro-active compliance (Product out of EU RoHS legal scope)
Attribute83ATEX INERIS || DNV-GL || T?V || UL || ATEX zone 2/22
Attribute84EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || EN/IEC 61800-3
Attribute85environment 1 category C2 EN/IEC 61800-3 || environment 2 category C3 EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || EN/IEC 61800-3
Attribute87radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 ?s - 8/20 ?s surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || electrostatic discharge immunity test level 3 IEC 61000-4-2
Attribute8840-50 ?C with derating factor) || -15-40 ?C without derating)
Attribute89> 1 MOhm 500 V DC for 1 minute to earth
Attribute9015 gn 11 ms IEC 60068-2-27
Attribute91CE
Attribute921 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6
Attribute9352 dB 86/188/EEC
Attribute942 EN/IEC 61800-5-1
Attribute9552 dB
Attribute96adjustable PID regulator
Attribute97-40-70 ?C
Attribute985-95 % without condensation IEC 60068-2-3
AttributeKey00Prospective Line Isc
AttributeKey01Degree Of Protection
AttributeKey02Product Destination
AttributeKey03Line Current
AttributeKey04Emc Filter
AttributeKey05Range Of Product
AttributeKey06Speed Drive Output Frequency
AttributeKey07Asynchronous Motor Control Profile
AttributeKey08Variant
AttributeKey09Ip Degree Of Protection
AttributeKey10Product Or Component Type
AttributeKey11Apparent Power
AttributeKey12Motor Power Kw
AttributeKey13Switching Frequency
AttributeKey14, AttributeKey16[Us] Rated Supply Voltage
AttributeKey15Maximum Transient Current
AttributeKey17Communication Port Protocol
AttributeKey18Discrete Input Logic
AttributeKey19Type Of Cooling
AttributeKey20Continuous Output Current
AttributeKey21Product Specific Application
AttributeKey22Safety Function
AttributeKey23Nominal Switching Frequency
AttributeKey24Maximum Horse Power Rating
AttributeKey25Device Short Name
AttributeKey26Supply Frequency
AttributeKey27Synchronous Motor Control Profile
AttributeKey28Option Card
AttributeKey29Electrical Connection
AttributeKey30Maximum Output Frequency
AttributeKey31, height_AttribHeight
AttributeKey32Analogue Output Type
AttributeKey33Acceleration And Deceleration Ramps
AttributeKey34Discrete Output Type
AttributeKey35Transmission Frame
AttributeKey36Maximum Switching Current
AttributeKey37Relay Output Number
AttributeKey38Exchange Mode
AttributeKey39Data Format
AttributeKey40Phase
AttributeKey41, Weight_AttribNet Weight
AttributeKey42Type Of Polarization
AttributeKey43Relay Output Type
AttributeKey44Frequency Resolution
AttributeKey45Accuracy
AttributeKey46Connector Type
AttributeKey47Input Compatibility
AttributeKey48Permissible Temporary Current Boost
AttributeKey49Analogue Input Number
AttributeKey50Motor Slip Compensation
AttributeKey51Discrete Output Number
AttributeKey52Mounting Mode
AttributeKey53Analogue Output Number
AttributeKey54Physical Interface
AttributeKey55Minimum Switching Current
AttributeKey56Method Of Access
AttributeKey57Refresh Time
AttributeKey58Enclosure Mounting
AttributeKey59Isolation
AttributeKey60Discrete Input Number
AttributeKey61Local Signalling
AttributeKey62Linearity Error
AttributeKey63Number Of Addresses
AttributeKey64Quantity Per Set
AttributeKey65, width_AttribWidth
AttributeKey66Transmission Rate
AttributeKey67Braking To Standstill
AttributeKey68, length_AttribDepth
AttributeKey69Protection Type
AttributeKey70Analogue Input Type
AttributeKey71Sampling Duration
AttributeKey72Rohs Exemption Information
AttributeKey73Mercury Free
AttributeKey74Environmental Disclosure
AttributeKey75Sustainable Offer Status
AttributeKey76Reach Regulation
AttributeKey77California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey78Weee
AttributeKey79China Rohs Regulation
AttributeKey80Circularity Profile
AttributeKey81Upgradeability
AttributeKey82Eu Rohs Directive
AttributeKey83Product Certifications
AttributeKey84, AttributeKey85Standards
AttributeKey86, AttributeKey94Pollution Degree
AttributeKey87Electromagnetic Compatibility
AttributeKey88Ambient Air Temperature For Operation
AttributeKey89Insulation Resistance
AttributeKey90Shock Resistance
AttributeKey91Marking
AttributeKey92Vibration Resistance
AttributeKey93, AttributeKey95Noise Level
AttributeKey96Regulation Loop
AttributeKey97Ambient Air Temperature For Storage
AttributeKey98Relative Humidity
DimensionUnitmm
Extra Product NameVariable speed drive, Altivar Process ATV600, ATV650, 2.2kW/3 hp -380/480 V, IP55/UL type12, disc.switch | Mayer Electric
UPC3606480907005
Weight10.5
WeightUnitkg
