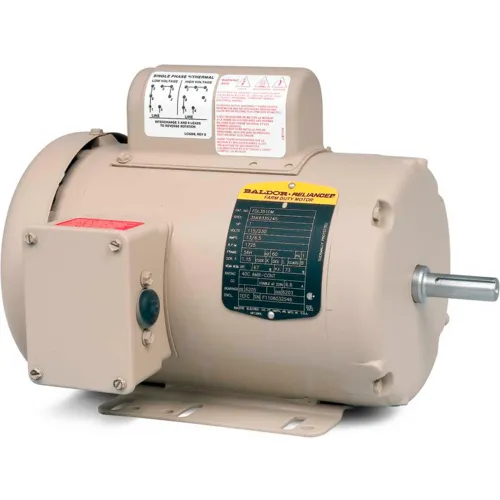

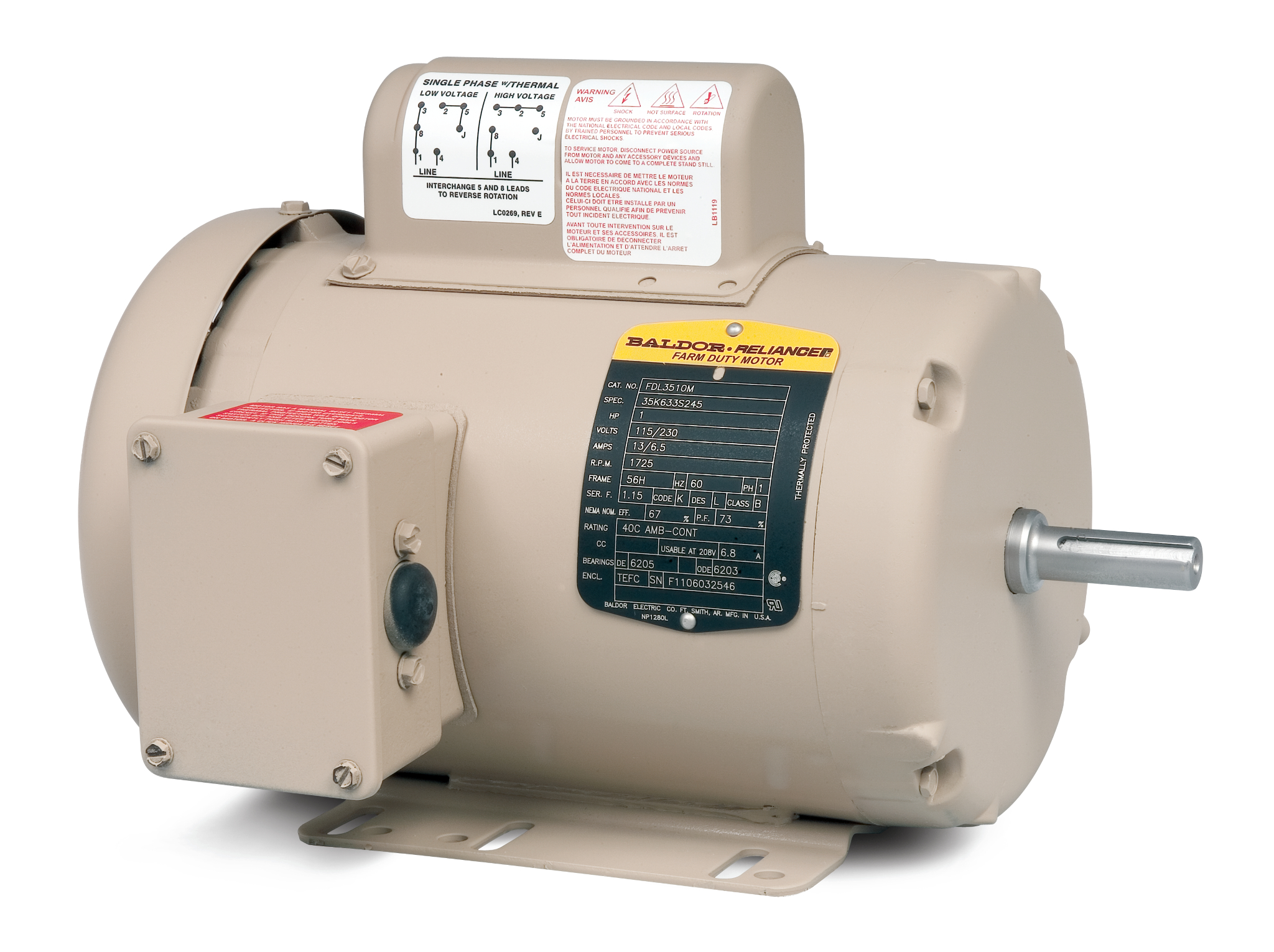

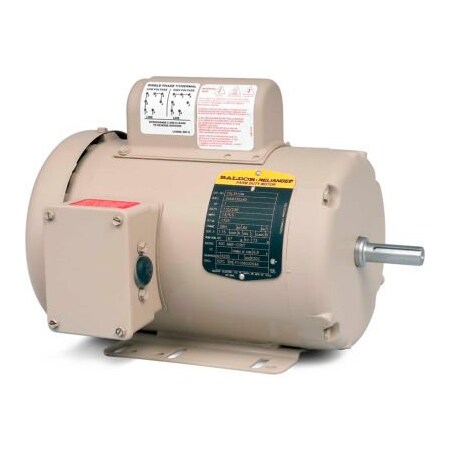

Baldor, FDL3510TM, 1HP, General Purpose Motor Motor

PN: FDL3510TM <br /><br />Amps: 13/6.8-6.5Class: BCode: KDesign: LFrame: 143THP: 1Hz: 60Phase : 1Rating: 40° C- ContinuousRPM: 1725Service Factor: 1.15Volts: 115/208-230<br /><br />

115/230 Volts1.00 hp Output1800 RPMSingle PhaseTEFC Enclosure143T Frame Size6.50 A FL Amps67.0 % FL EfficiencyStandard Drive End Flange TypeMounting: Foot Mounted

Baldor Electric, FDL3510TM, 1HP, 1725RPM, 1PH, 230V;115V, 143T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Baldor FDL3510TM1HP 1725RPM 1PH 60HZ 143T 3524LTEFC F1

Keep the Baldor-Reliance--1HP, 1725RPM, 1PH, 60HZ, 143T, 3524L, TEFC, F1, AC Motor on hand to maintain the functionality of livestock, crop and dairy equipment that require single-speed, 4-pole AC motors, including crop dryers, grain stirrers, augur drives, vacuum pumps and aeration fans. The Baldor 1 hp single-phase motor puts out up to 1725 rpm under load, operating at either 115V or 208-230V. The Baldor 1 hp motor is totally enclosed and fan-cooled, to protect it from environmental elements. The motor's steel-frame housing provides other protections against dirt and moisture. Low-friction ball bearings in the Baldor AC motor are permanently double-sealed and lubricated with high-temperature grease, and a V-ring slinger and lip seal keep the inner shaft clean. Condensation-drain weep holes and gasketed conduit box provide moisture resistance for coils and terminals. The Baldor augur-drive motor has a coating of tan epoxy paint to protect the housing from rust.

<p><b>Specifications: </b><ul><li>Motor Category:-General Purpose Motor </li><li> Motor Phase:-1 ph </li><li> Motor Horsepower:-1.00 hp, 1 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-115/230 V </li><li> Frame Size:-143T </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footed </li><li> Full Load Current:-13.00 / 6.50 A </li><li> Full Load Efficiency:-67.00 % </li><li> Amps @ Voltage:-6.5 A @ 230 V; 6.8 A @ 208 V; 13.0 A @ 115 V </li><li> Volts @ Frequency:-115 V @ 60 Hz; 230 V @ 60 Hz </li><li> Shaft Diameter:-0.88 in </li><li> Overall Length (C-Dimension):-13.29 in </li><li> Service Factor:-1.15 </li><li> Frame Material:-Steel </li><li> Insulation Class:-B </li><li> Standards Met:-UR, CSA </li><li> Harmonization Code:-8501.40.6040 </li><li> Weight:-41.00 lbs </li><li> Applications:-Wide variety of agri-duty and industrial applications. </li><li> Additional Details:-Sealed ball bearings, lubricated with high temperature moistureresistant grease. Drive end seal and v-ring slinger to prevent moisture and contaminant ingress. Condensation drains, gasketed cast conduit boxes. Epoxy paint protects motor from harsh environments. </li></ul></p>
