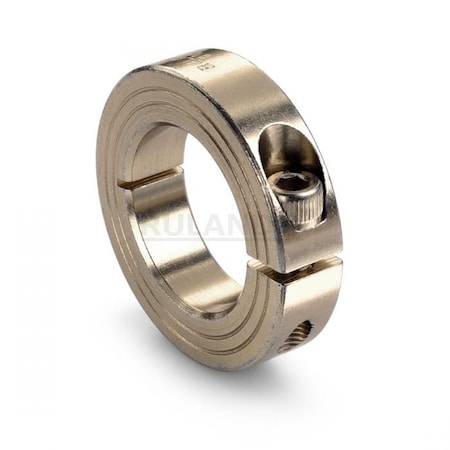

MCL-36-FZ, 36mm One-Piece Shaft Collar, Zinc Plated Steel | Ruland

Ruland . MCL-36-FZ

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRuland
Attribute0036 mm
Attribute01+0.050 mm / +0.012 mm
Attribute0257 mm
Attribute0362.4 mm
Attribute0415 mm
Attribute05+0.076 mm / -0.254 mm
Attribute06+0.000 mm / -0.013 mm
Attribute07M6 x 18
Attribute08Alloy Steel
Attribute095.0 mm
Attribute10Zinc Plated
Attribute1116 Nm
Attribute1223.24 mm
Attribute131 ea
Attribute141215 Carbon Steel Bar
Attribute15Type II, SC2 Zinc Plating with a Yellow "Trivalent" Chromate Conversion Coating, Meets or Exceeds ASTM B633-98
Attribute16Ruland Manufacturing
Attribute17, countryOfOriginUSA
Attribute18-40°F to 350°F (-40°C to 176°C)
Attribute19, Weight0.376000
Attribute20, UPC634529114506
Attribute218483.60.8000
Attribute2231162811
Attribute23Performance ratings are for guidance only. The user must determine suitability for a particular application.
Attribute24This product does not require a warning.
AttributeKey00Bore (B1)
AttributeKey01Bore Tolerance
AttributeKey02Outer Diameter (OD)
AttributeKey03, height_Attrib, length_AttribClearance Diameter (C) MAX
AttributeKey04, width_AttribWidth (W)
AttributeKey05Width Tolerance
AttributeKey06Recommended Shaft Tolerance
AttributeKey07Forged Clamp Screw
AttributeKey08Screw Material
AttributeKey09Hex Wrench Size
AttributeKey10Screw Finish
AttributeKey11Seating Torque
AttributeKey12Screw Location (R)
AttributeKey13Number of Screws
AttributeKey14Material Specification
AttributeKey15Finish Specification
AttributeKey16Manufacturer
AttributeKey17Country of Origin
AttributeKey18Temperature
AttributeKey19, Weight_AttribWeight (lbs)
AttributeKey20UPC
AttributeKey21Tariff Code
AttributeKey22UNSPC
AttributeKey23Note 1
AttributeKey24Prop 65
DimensionUnitmm
Extra Product NameMCL-36-FZ, 36mm One-Piece Shaft Collar, Zinc Plated Steel | Ruland
WeightUnitlbs
diameter, height, length62.4
keywordsMCL-36-FZ Shaft Collar, One-Piece Shaft Collar
moq, multiple, tierMinQty150
MPN, SKUMCL-36-FZ
qtyInStock0
snippetRuland part number MCL-36-FZ is a zinc plated steel one-piece shaft collar with 36mm bore. Download a 2D/3D CAD file or purchase the MCL-36-FZ directly from the manufacturer.
tierMinQty2100
tierMinQty3250
tierPrice126.22
tierPrice217.41
tierPrice312.33
width15.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RulandMCL-36-FZ505050 @ $26.22, 100 @ $17.41, 250 @ $12.33
ZoroG508672027111 @ $14.99
us.rs-online.com7262248450150 @ $35.56
Allied Electronics72622484501
Digi-Key13605003111 @ $23.14
motionindustries.com04805141111 @ $61.02
