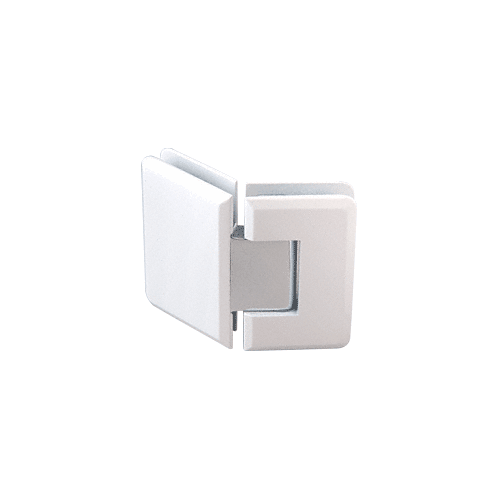

CRL ALUM-P1N045WC-VCP-1 White With Chrome Accents Pinnacle 045 Series 135 Degree Glass-to-Glass Standard Hinge

CRL-USALUM . ALUM-P1N045WC-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute00CRL White With Chrome Accents Pinnacle 045 Series 135 Degree Glass-to-Glass Standard Hinge
Attribute013-1/2" (89 mm)
Attribute022-3/16" (56 mm)
Attribute03White
AttributeKey00sub category
AttributeKey01, height_AttribHeight
AttributeKey02, width_AttribWidth
AttributeKey03Finish
CategoryIdL3135 Degree Glass-to-Glass Mount Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
DimensionUnitinch
Extra Product NameCRL ALUM-P1N045WC-VCP-1 White With Chrome Accents Pinnacle 045 Series 135 Degree Glass-to-Glass Standard Hinge
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
height3.5
MPNALUM-P1N045WC-VCP-1
qtySourceupdateFromUrlEntry
snippetThe <b>CRL Pinnacle Hinge</b> is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations. <br/><b>STANDARD REVERSIBLE PIVOT PIN:</b> Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.<br/><b>CUSTOM PIVOT PIN:</b> Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree). <br/><b>Using two hinges</b> with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).<br/><b>Using three hinges</b> with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass<br/><b>Special Feature:</b> Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.<br/><b>Construction:</b> Solid Brass<br/><b>Hinge Swings:</b> 90 degree in and 90 degree out<br/><b>Closing Type:</b> Self-Centering when within 15 degree of closed position<br/><b>Cut-Out Required</b><br/><b>Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. Important Notes: <b>CRL Shower Door Hinges</b> are designed for residential or hotel shower use.
tierPrice1148.1
width2.1875

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-P1N045WC-VCP-1111 @ $148.10
