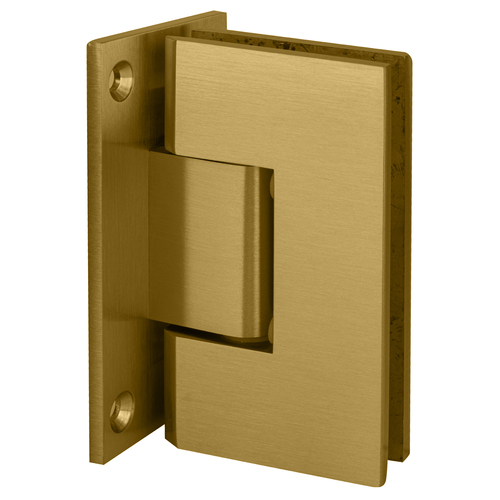

CRL ALUM-V1E537SB-VCP-1 Satin Brass Vienna 537 Series Wall Mount Hinge with Internal 5 Degree Pin

CRL-USALUM . ALUM-V1E537SB-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute001 lb (454g)
Attribute01, Attribute222-1/4
Attribute02, Attribute193-15/16
Attribute03, Attribute08Satin Brass
Attribute04Full
Attribute053/8, 1/2
Attribute0636
Attribute07, Attribute15No
Attribute09, Attribute10Yes
Attribute11, Attribute20, Weight140
Attribute12, Attribute21110
Attribute13Wall Mount
Attribute14Brass
Attribute16110 lbs. (49.9 kg)
Attribute17140 lbs. (63.5 kg)
Attribute18Wall mount
AttributeKey00Shipping Weight
AttributeKey01Width
AttributeKey02Height
AttributeKey03Finish
AttributeKey04Back Plate
AttributeKey05Glazing Thickness
AttributeKey06Maximum Door Width
AttributeKey07Adjustable
AttributeKey08Finish/Color
AttributeKey09Self-Centering
AttributeKey105 Degree Pre-Set
AttributeKey11, Weight_AttribMaximum Door Weight - 3 Hinges (Pounds)
AttributeKey12Maximum Door Weight - 2 Hinges (Pounds)
AttributeKey13Mounting Type
AttributeKey14Material
AttributeKey15Positive Close
AttributeKey16Maximum Door Weight - 2 Hinges
AttributeKey17Maximum Door Weight - 3 Hinges
AttributeKey18Mounting Style
AttributeKey19Height (Inches)
AttributeKey20Max Dr Weight - 3 Hinges (Lbs)
AttributeKey21Max Dr Weight - 2 Hinges (Lbs)
AttributeKey22Width (Inches)
CategoryIdL3Wall Mount Full Back Plate Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
Extra Product NameCRL ALUM-V1E537SB-VCP-1 Satin Brass Vienna 537 Series Wall Mount Hinge with Internal 5 Degree Pin
WeightUnitlbs
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNALUM-V1E537SB-VCP-1
qtySourceupdateFromUrlEntry
snippet<br/><b>CRL Vienna Hinges</b> are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.<br/><b>STANDARD REVERSIBLE PIVOT PIN:</b> Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.<br/><b>CUSTOM PIVOT PIN:</b> Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).<br/><b>Using two hinges</b> with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).<br/><b>Using three hinges</b> with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass<br/><b>Construction:</b> Solid Brass<br/><b>Hinge Swings:</b> 90 degree in and 90 degree Out<br/><b>Closing Type:</b> Self-Centering when within 15 degree of closed position.<br/><b>Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel</b><br/><b>Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions<br/> Custom finishes are available on request. Contact DK Hardware Sales Shower Door Department.<br/><b>Product Warning:</b><br/><b>CRL Shower Door Hinges</b> are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.<br/> Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.<br/><p>.</p>
tierPrice165.36

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-V1E537SB-VCP-1111 @ $65.36
