Kyocera

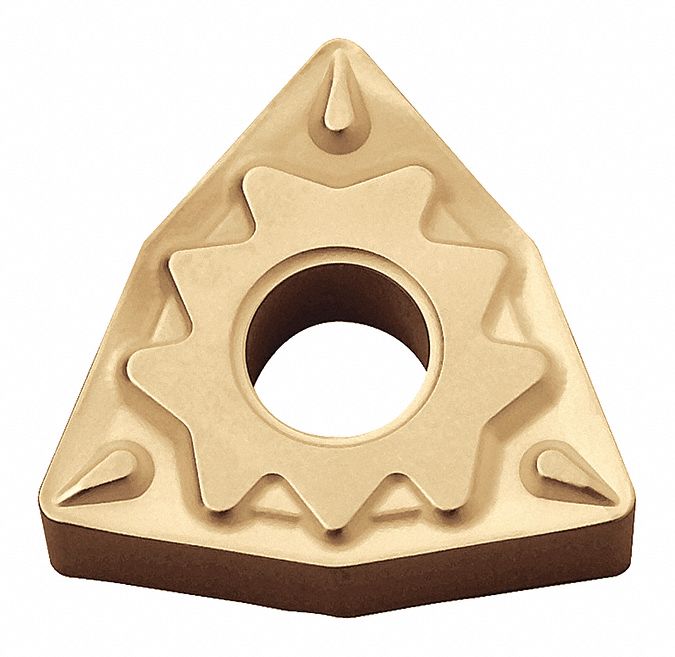

<ul><li>Insert for External Turning, Facing, Boring, Internal Facing</li><li>6 Cutting Edges</li><li>MEGACOAT NANO coating for efficient machining with high quality surface finishes with excellent wear and adhesion resistance</li><li>Application: Recommended cermet for stable steel machining and high quality surface finish</li></ul><p>Product Details:</p><ul><li>Insert Style: WNMG</li><li>Insert Size: 3251</li><li>Chipbreaker: HQ</li><li>Insert Grade: PV720</li><li>Material: Cermet</li><li>Coating Process: PVD</li><li>Coating / Composition: TiCN (MEGACOAT NANO)</li><li>[IC] Inscribed Circle (Decimal Inch): 0.3750</li><li>[IC] Inscribed Circle (mm): 9.53</li><li>[S] Thickness (Decimal Inch): 0.1563</li><li>[S] Thickness (mm): 3.97</li><li>[RE] Corner Radius (Decimal Inch): 0.0157</li><li>[RE] Corner Radius (mm): 0.40</li><li>[D1] Hole Diameter (Decimal Inch): 0.1500</li><li>[D1] Hole Diameter (mm): 3.81</li><li>Rake: Negative</li><li>[AN] Relief Angle (Degree): 0</li><li>Included Angle (Degree): 80</li><li>Primary Workpiece Material: Steel</li><li>Secondary Workpiece Material: Stainless Steel</li><li>Shape: Trigon</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Clamp / Screw</li><li>Number of Cutting Edges: 6</li><li>Application: External Turning, Facing, Boring, Internal Facing</li><li>Usage Classification: Light Interruption</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Finishing-Medium</li></ul><p >TN610 / TN620 / PV710 / PV720 Brochure</p>
