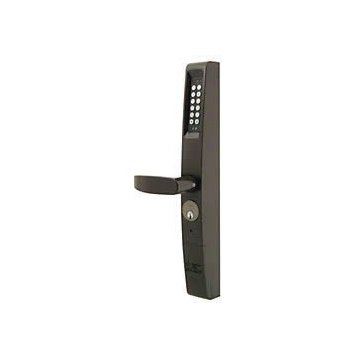

Adams Rite Keypad Latch Trim Dark Bronze | HD Supply

'Electronic Keyless Exit Trim Lock Narrow Stile, Function Entry with Key Override, Access Method Keypad, Mounting Style Cylindrical, Lock Material Aluminum and Zinc Cast, Finish Dark Bronze, Series 3090, Handle Type Lever, Door Thickness 1-3/4 In. to 2-1/4 In., Key Override Options Mortise Cylinder, Hand Right, Outside Height 15-3/8 In., Outside Width 1-3/4 In., Outside Depth 2 In., Keypad Material Metal, Power Source (4) AA Batteries, Battery Life 40, 000 Cycles'

Adams Rite 3090-01-121 eFORCE-150 KEYLESS ENTRY TRIM FOR 45/47/4900 AND 8000 SERIES SELECTABLE HAND/OUTDOOR RATED 1 TO 1-1/2 MORT CYL/4 AA BAT POWDERCOAT DARK BRONZE

Adams Rite Adams Rite Adams Rite 3090-01-121 eForce-150 Keyless Entry For... Additional Information Manufacturer Adams Rite Model 3090-01-121 Dimensions 1-3/4" W x 15-3/8" High Entry Features Keypad Finish Dark Bronze Handing Non-Handed Backset 31/32" backsets and greater Door Thickness Mounting hardware for metal door applications from 1-3/4" to 2-1/4" thick. Operation Standard, Passage and lockout Operating Temperature Full outdoor rating - temperature range from -31° F to 151° F Keypad UV stable keypad material Power Powered by 4 AA Alkaline Batteries Programming In the standard mode of operation, a programmed 2 to 7 digit character followed by star (*) key, allows for one entry. Hold open time is adjustable fro 1 to 9 seconds. Standard Key Override Cylinder Mechanical key override via mortise cylinder (by others) Warranty 3 Year Warranty Weight 10.0000 3090-01-121

Adams Rite 3090-01-121 eFORCE-150 KEYLESS ENTRY TRIM FOR 45/47/4900 AND 8000 SERIES SELECTABLE HAND/OUTDOOR RATED 1 TO 1-1/2 MORT CYL/4 AA BAT POWDERCOAT DARK BRONZE

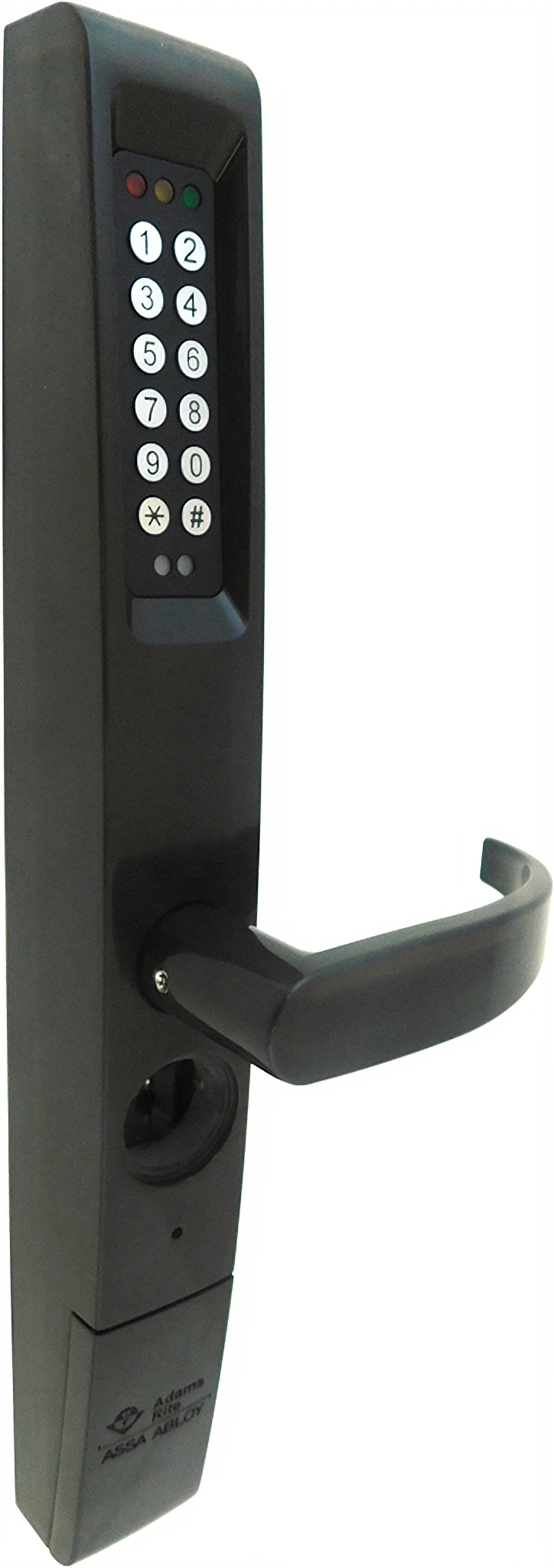

Adams Rite eForce-150 is a new battery-operated key-less entry control for Adams Rite deadbolts, dead latches and exit devices that are compatible with aluminum stile, steel and wood door applications. The device can accommodate up to 150 users, (including master, supervisor and emergency users) plus two one-time codes. The eForce -150 can operate in three modes: Standard, Passage and Lockout. All programming is accomplished via the keypad. Device operation is confirmed by both a visual LED light indicator and an audible sound generated by a piezo horn. In the standard mode of operation, a programmed 2 to 7 digit character followed by star key, allows for one entry. Hold open time is adjustable from 1 to 9 seconds. Mechanical key override via mortise cylinder (by others). Remote activation (hard wired switch) achievable with optional cable kit. The sleek-looking measures 1-3/4-inches wide by 15-3/8-inches high, with Powder coat dark bronze (121) finishes.
