AMP - TE CONNECTIVITY . 3-641216-2

02P MTA100 HDR ASSY FL/RA LF

MTA-100 Connectors; Number of Positions = 2; Mating Type = Header; Wire-to-Board Application; 2.54 mm Contact Centerline Spacing;

TE CONNECTIVITY / AMP - 3-641216-2 - WIRE-BOARD CONNECTOR HEADER 2POS; 2.54MM

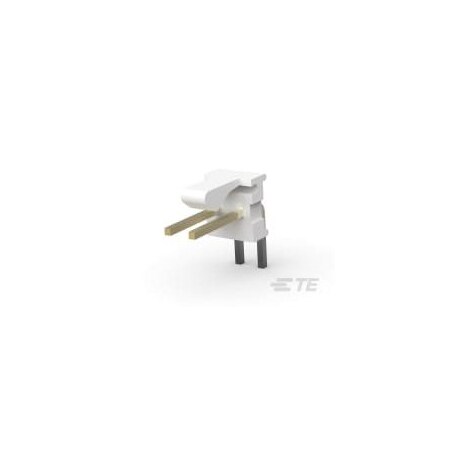

MTA-100 2 Position Single Row Through-Hole Right Angle Wire to Board Header ***** For more information refer to the specification sheet located in the 'Downloads' section below the image *****

WIRE-BOARD CONNECTOR HEADER 2 POSITION, 2.54MM; Connector Systems:Wire-to-Board; Pitch Spacing:2.54mm; No. of Rows:1Rows; No. of Contacts:2Contacts; Contact Termination Type:Through Hole Right Angle; Product Range:MTA-100 Series RoHS Compliant: Yes

EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active HTS: 8536.69.40.40 Type: Wire to Board Gender: HDR Number of Contacts: 2 Number of Rows: 1 Termination Method: Solder Terminal Pitch (mm): 2.54 Body Orientation: Right Angle Maximum Current Rating (A): 5/Contact Maximum Voltage Rating: 250VAC Insulation Resistance (MOhm): 5000 Maximum Contact Resistance (mOhm): 6 Minimum Operating Temperature (°C): -55 Maximum Operating Temperature (°C): 105 Mating Cycle (Cycles): 50 Packaging: Package Product Length (mm): 5.08 Product Depth (mm): 10.79 Product Height (mm): 5.72 Contact Plating Thickness: 0.76um Tail Length (mm): 3.56 Mounting: Through Hole
