Order 4D85-010-8231C by Spartan Scientific Ported Valve, 1/2In, 6 VDC, Nylon - US Mega Store

Spartan Scientific . 4D85-010-8231C

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSpartan Scientific
Attribute00, Attribute12Vacuum to 20 psi (depending on orifice size and function)
Attribute01, Attribute1316 to 40 ms Complete Cycle
Attribute02, Attribute14Air, caustics, inert gas, oil, water
Attribute03, Attribute15IP65 (IEC 144), NEMA 4 Dust-tight and water resistant (with electrical connector)
Attribute04, Attribute16Spades: Accordance with DIN Style A EN175301-803 Flying Lead: PVC, 18 AWG, Multi-Strand Copper Wire, 300V, 12 minimum length
Attribute05, Attribute17Normally Closed
Attribute06, Attribute18FKM
Attribute07, Attribute19Nylon
Attribute08, Attribute201/2" NPT Orifice 12.5mm
Attribute09, Attribute216 VDC DIN
Attribute10, Attribute22DIN Spade with Connector
Attribute11, Attribute230.64 lbs
AttributeKey00, AttributeKey12Pressure Range
AttributeKey01, AttributeKey13Response Time
AttributeKey02, AttributeKey14Media
AttributeKey03, AttributeKey15Environment Protection
AttributeKey04, AttributeKey16Connections
AttributeKey05, AttributeKey17Function
AttributeKey06, AttributeKey18Seal Material
AttributeKey07, AttributeKey19Body Material
AttributeKey08, AttributeKey20Port Size
AttributeKey09, AttributeKey21Coil Options
AttributeKey10, AttributeKey22Coil Type
AttributeKey11, AttributeKey23, Weight_AttribPackaged Weight
CategoryL1Process Control & Automation
CategoryL2Valves
CategoryL3Electric
CategoryL4Spartan Scientific 4D85-010-8231C
ConditionNEW
Extra Product NameOrder 4D85-010-8231C by Spartan Scientific Ported Valve, 1/2In, 6 VDC, Nylon - US Mega Store
Weight0.64
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKU4D85-010-8231C
qtyInStock2 Weeks Factory Lead Time

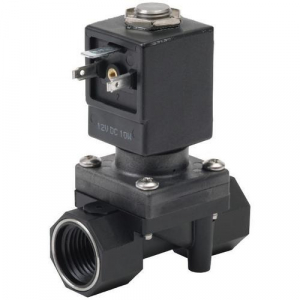

snippet<p><strong>Spartan Scientific, 4D85-010-8231C, Media Separated Solenoid Valve 2-Way Process Composite, 1/2In, 6 VDC, Nylon </strong> </p> <p>The Spartan Scientific Series 4D85 is a direct operating 2-Way 2-Position media separated valve for control of aggressive media that can damage wetted solenoid valve components. The valve incorporates the innovative Spring Diaphragm which retains the media in the valve body effectively separating the metal operator components from the media for extremely long life cycles and media compatibility. The 4D85 is a stand alone body ported valve, NPT port connections and offers a full flow 12mm orifice. The 4D85 can control media compatible with Glass-Filled Nylon, PEI, and FKM, EPDM, and NBR elastomers. All standard voltages, the 4D85 can control up to 20 PSI inlet pressure with no minimum operating pressure differential. The 4D85 valve body features robust design elements such as all stainless hardware and metal reinforced port rings which virtually eliminate valve body damage. The 4D85 is designed for a long trouble free life while still controlling compatible aggressive fluids. </p>
tierPrice1129.9

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com4D85-010-8231C12 Weeks Factory Lead Time11 @ $129.90
heavydutydepot.com4D85-010-8231C111 @ $129.90
