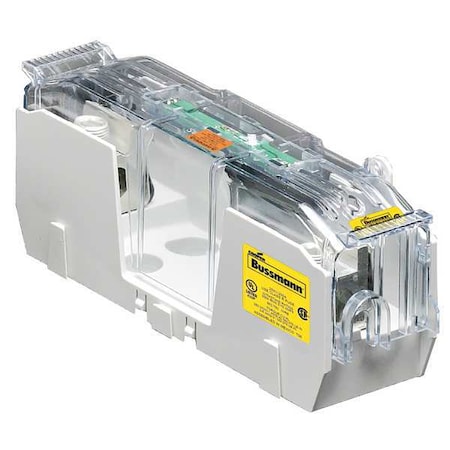

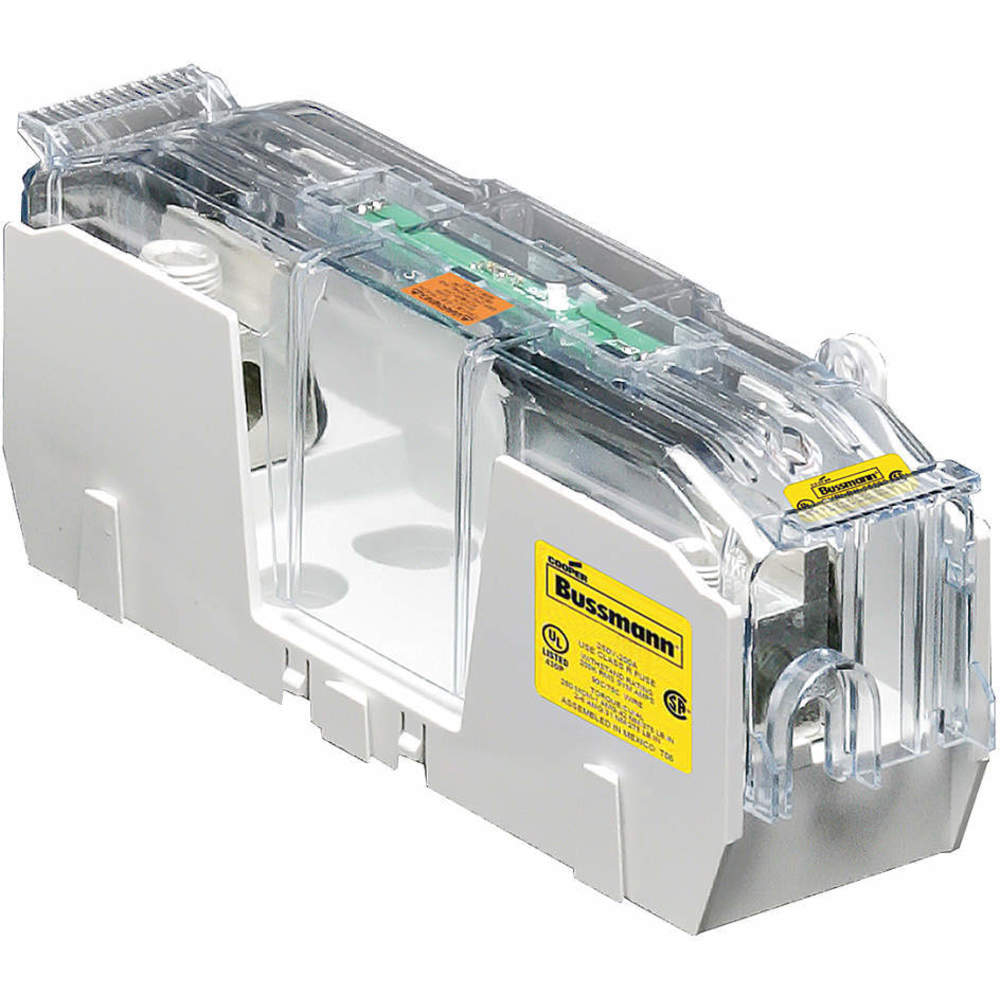

Eaton Bussmann Modular Fuse Holder, 200A, 250V, Box Lug - RM25200-1CR

RM25200-1CR Cooper Bussmann 200 amp class R fuse holder 250V - 1 pol Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility Factory assembled two- and three-pole configurations available Up to four mounting holes per pole increase installation flexibility Standard phase barriers between poles for additional safety Design meets UL creep and clearance requirements for Industrial Control Circuits (UL 508 and UL 845) 200 to 600A blocks meet the higher UL creep and clearance requirements for Industrial Power Distribution Standards (UL 98, UL 69, UL 489, UL 891 and UL 869A) Optional IP20 finger-safe covers available on entire knifeblade fuse block product line: High clarity see-through covers allow for inspecting wire terminations or to take thermography measurements without removing cover Probe holes included for easy, safer testing and troubleshooting Built-in lockout/tagout feature improves safety Standard fuse clip reinforcing springs enhance electrical contact Volts 250V Fues Amp Range 70A to 600A SCCR Withstand Rating - Class R 200kA - Class H(K) 10kA Poles 1-, 2- and 3-Pole - Dovetail construction permits assembly of poles required by application Agency Information UL - Blocks: Listed cULus E14853 - IZLT & IZLT7 - Covers: Listed UL E58836 - JDVS2 CSA - Blocks: Certified 47235 - 6225-01 - Covers: Certified 47235 - 6225-01 Flammability Ratings - Blocks UL 94V0, self-extinguishing - Covers UL 94HB, self-extinguishing Conductors - 100A-200A Blocks, 75C/90C Cu/Al - 400A-600A Blocks 75C Cu/Al Operating & Storage Temperature Range Blocks -40C to 120C Covers Non-indicating covers -40C to 120C Indicating covers -20C to 90C

RM25200-1CR - Fuseholder, Fuse Block, 250V, 200A, Class R, Box Lugs, 1 Pole
