SRPPH01SB

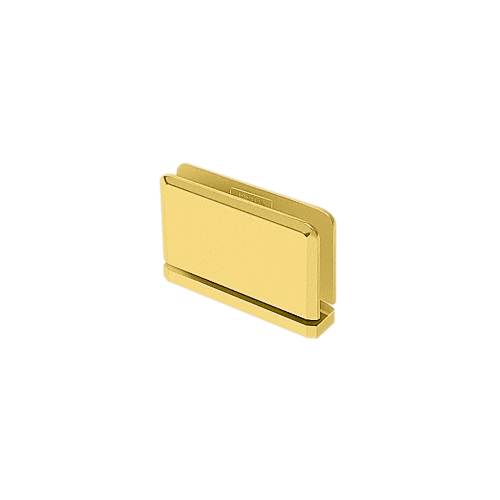

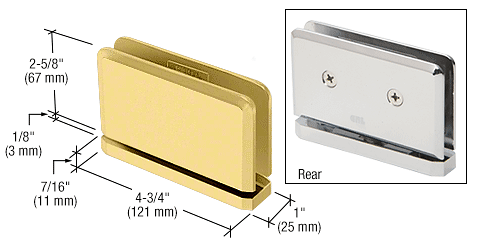

Top and Bottom Mount Design Allows More Glass Exposure Available in Several Beautiful Finishes 3 Year Warranty The CRL Senior Prima Series of professional hinges is able to accommodate 1/2 inch (12 millimeter) thick tempered safety glass. A variety of two styles, Top and Bottom Mount and Glass-to-Glass types, gives design flexibility. Advantages of the Senior and Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Glass Top Pivot Hinge is used for doors having fixed transoms. Placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. Color: Satin Brass For Use With: 1/2 in (12 mm) Glass Maximum Weight: 145 lbs (66 kg) Maximum Width: 36 in (914 mm) Minimum Order: 1 Each Specifications: Glass Thickness: 1/2 inch (12 millimeter) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs Construction: Solid Brass Hinge Swings: Full rotation Closing Type: Self-Centering when within 15° of closed position Cut-Out Required Includes: One Hinge, Gaskets, Screws and Template
