Kyocera

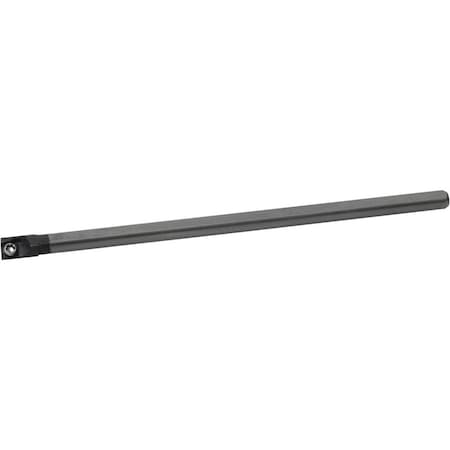

<ul><li>Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining</li><li>Large chip pocket provides superior chip evacuation</li><li>Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining</li><li>0 (Axial), -13 (Radial) Rake Angle Dynamic Bar Boring Bar</li><li>Great for Boring, Internal Facing Applications</li></ul><p>Product Details:</p><ul><li>Toolholder Style: C...SCLC-AN</li><li>Hand of Holder: Right-Hand</li><li>Rake: Positive</li><li>Rake Angle (Degree): 0 (Axial), -13 (Radial)</li><li>Series: Dynamic Bar</li><li>Lead Angle (Degree): 5</li><li>[DMIN] Minimum Bore Diameter (mm): 7.00</li><li>[DCON] Shank Diameter (mm): 6.00</li><li>[H] Shank Flat Width (mm): 5.40</li><li>[LF] Functional Length (mm): 110.00</li><li>[LH] Head Length (mm): 10.00</li><li>[WF] Cutting Edge Distance (mm): 3.50</li><li>[RE] Standard Corner Radius (mm): 0.2</li><li>Maximum Overhang Length (L/D): ~7.0</li><li>Coolant Through (Yes/No): No</li><li>Insert Holding Method: Screw</li><li>Insert Shape: 80 Degree Diamond</li><li>[IC] Insert Inscribed Circle (mm): 4.30</li><li>[S] Insert Thickness (mm): 1.80</li><li>Multi-Use Tool (Yes/No): Yes</li><li>Application: Boring, Internal Facing</li><li>Bar Type: Carbide</li><li>Unit (inch/mm): mm</li><li>Compatible Insert Hand : Left-Hand</li><li>Compatible Inserts (Partial): CCGT1411…, CCET1411…, CCGW1411…, CCMW1411…</li></ul>
