Kyocera

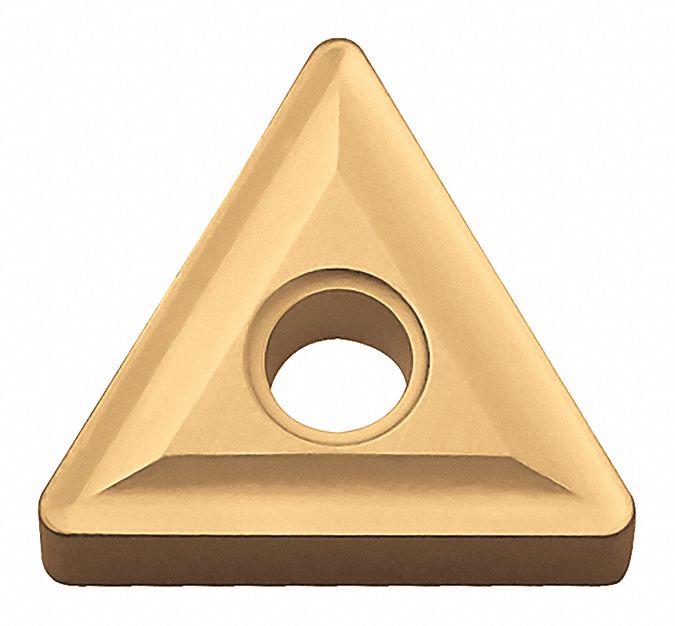

<ul><li>Insert for External Turning, Facing, Copying, Chamfering, Boring</li><li>6 Cutting Edges</li><li>High strength for higher productivity. Excellent wear resistance built for long tool life</li></ul><p>Product Details:</p><ul><li>Insert Style: TNMG</li><li>Insert Size: 331</li><li>Insert Grade: CCX</li><li>Material: Cermet</li><li>Material Grade: n/a</li><li>Coating Process: CVD</li><li>Coating / Composition: TiCN/Al2O3/Tin</li><li>[IC] Inscribed Circle (Decimal Inch): 0.3750</li><li>[IC] Inscribed Circle (mm): 9.53</li><li>[S] Thickness (Decimal Inch): 0.1875</li><li>[S] Thickness (mm): 4.76</li><li>[RE] Corner Radius (Decimal Inch): 0.0157</li><li>[RE] Corner Radius (mm): 0.40</li><li>[D1] Hole Diameter (Decimal Inch): 0.1500</li><li>[D1] Hole Diameter (mm): 3.81</li><li>Rake: Negative</li><li>[AN] Relief Angle (Degree): 0</li><li>Included Angle (Degree): 60</li><li>Primary Workpiece Material: Steel</li><li>Secondary Workpiece Material: Cast Iron</li><li>Shape: Triangle</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Clamp / Screw</li><li>Number of Cutting Edges: 6</li><li>Application: External Turning, Facing, Copying, Chamfering, Boring</li><li>Usage Classification: Continuous</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Roughing</li><li>Compatible Holders (Partial): DTGNR...-16, DTGNL...-16, MTGNR...-3…, MTGNL...-3…, PTGNR...-3…, PTGNL...-3…, PTGNR...-16, PTGNL...-16, PTFNR…-3…, PTFNL…-3…, PTFNR…-16, PTFNL…-16, WTJNR...-3..., WTJNL...-3..., WTJNR...-16…, WTJNL...-16…, WTKNR...-3…, WTKNL...-3…, WTKNR...-16…, WTKNL...-16…, WTENN...-16…, HA32PTFNR16-40, HA32PTFNL16-40, HA40PTFNR16-50, HA40PTFNL16-50, HA50PTFNR16-63, HA50PTFNL16-63, ...-DTFNR16-..., ...-DTFNL16-..., ...-PTUNR16-..., ...-PTUNL16-...</li></ul>
