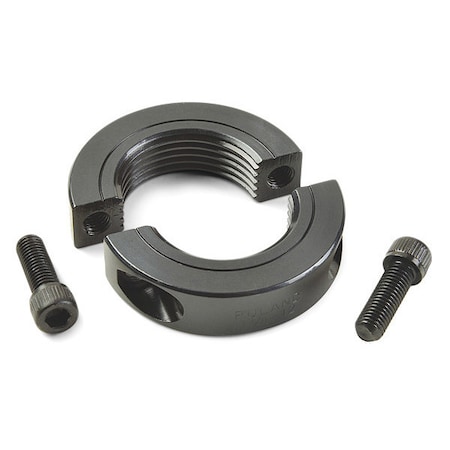

TSP-22-12-F-LH, 1 3/8" - 12 TPI Left Hand Threaded Shaft Collar, Steel | Ruland

Ruland . TSP-22-12-F-LH

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRuland
Attribute001 3/8 in - 12 TPI
Attribute012 1/4 in
Attribute020.563 in
Attribute032.424 in
Attribute04+0.003 in / -0.010 in
Attribute050.063 in
Attribute06+0.0000 in / -0.0005 in
Attribute071/4-28
Attribute08Alloy Steel
Attribute093/16 in
Attribute10Black Oxide
Attribute11170 lb-in
Attribute120.922 in
Attribute132 ea
Attribute141215 Carbon Steel Bar
Attribute15-40°F to 350°F (-40°C to 176°C)
Attribute16Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Attribute17Ruland Manufacturing
Attribute18, countryOfOriginUSA
Attribute19, Weight0.380600
Attribute20, UPC634529241080
Attribute218483.60.8000
Attribute2231162811
Attribute23Performance ratings are for guidance only. The user must determine suitability for a particular application.
AttributeKey00Threaded Bore (B1)
AttributeKey01Outer Diameter (OD)
AttributeKey02, width_AttribWidth (W)
AttributeKey03, height_Attrib, length_AttribClearance Diameter (C) MAX
AttributeKey04Width Tolerance
AttributeKey05Recommended Gap
AttributeKey06Recommended Shaft Tolerance
AttributeKey07Forged Clamp Screw
AttributeKey08Screw Material
AttributeKey09Hex Wrench Size
AttributeKey10Screw Finish
AttributeKey11Seating Torque
AttributeKey12Screw Location (R)
AttributeKey13Number of Screws
AttributeKey14Material Specification
AttributeKey15Temperature
AttributeKey16Finish Specification
AttributeKey17Manufacturer
AttributeKey18Country of Origin
AttributeKey19, Weight_AttribWeight (lbs)
AttributeKey20UPC
AttributeKey21Tariff Code
AttributeKey22UNSPC
AttributeKey23Note 1
AttributeKey24Prop 65
DimensionUnitinch
Extra Product NameTSP-22-12-F-LH, 1 3/8" - 12 TPI Left Hand Threaded Shaft Collar, Steel | Ruland
WeightUnitlbs
diameter, height, length2.424
keywordsTSP-22-12-F-LH, Shaft Collar, Threaded Shaft Collar
moq, multiple, tierMinQty11
MPN, SKUTSP-22-12-F-LH
qtyInStock0
snippetRuland part number TSP-22-12-F-LH is a steel left hand threaded shaft collar with 1 3/8" - 12 TPI bore. Download a 2D/3D CAD file or purchase the TSP-22-12-F-LH directly from the manufacturer.
tierMinQty220
tierMinQty360
tierMinQty4100
tierPrice136.38
tierPrice233.08
tierPrice327.56
tierPrice424.8
width0.563

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RulandTSP-22-12-F-LH111 @ $36.38, 20 @ $33.08, 60 @ $27.56, 100 @ $24.80
us.rs-online.com72337811111 @ $31.09, 3 @ $30.15
ZoroG7104069111 @ $24.93
Allied Electronics7233781111
Digi-Key1359989512511 @ $51.48
Applied Industrial11708214511
