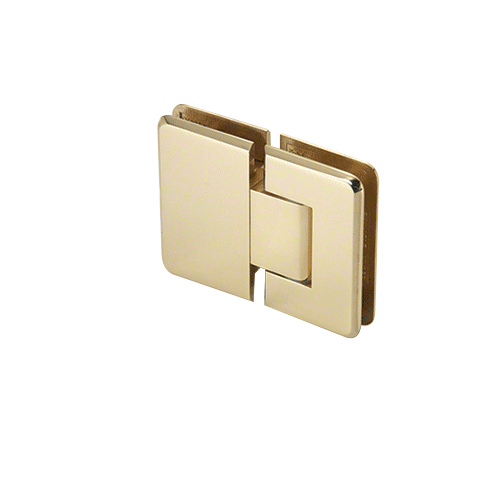

CRL ALUM-P1N380BR-VCP-1 Brass Pinnacle 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute003-1/2" (89 mm)
Attribute012-3/16" (56 mm)
Attribute02Polished Brass
AttributeKey00, height_AttribHeight
AttributeKey01, width_AttribWidth
AttributeKey02Finish
CategoryIdL3180 Degree Glass-to-Glass Mount Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
DimensionUnitinch
Extra Product NameCRL ALUM-P1N380BR-VCP-1 Brass Pinnacle 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
height3.5
MPNALUM-P1N380BR-VCP-1
qtySourceupdateFromUrlEntry
snippet<b>CRL Adjustable Pinnacle Series Hinges</b> take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb. <br/><b>Using two hinges</b> with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).<br/><b>Using three hinges</b> with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass<br/><b>Special Feature:</b> Adjustable to any angle up to 90 degree without having to take door down.<br/><b>Construction:</b> Solid Brass <br/><b>Hinge Swings:</b> 90 degree in and 90 degree out (at factory set position).<br/><b>Closing Type:</b> Self-Centering when within 15 degree of closed position.<br/><b>Cut-Out Required</b><br/><b>Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.<br/><b>NOTE:</b> Door glass width may require alteration from standard clearance deductions when adjusting angles. .<br/> Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: <b>CRL Shower Door Hinges</b> are designed for residential or hotel shower use.
tierPrice1112.89
width2.1875

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-P1N380BR-VCP-1111 @ $112.89
