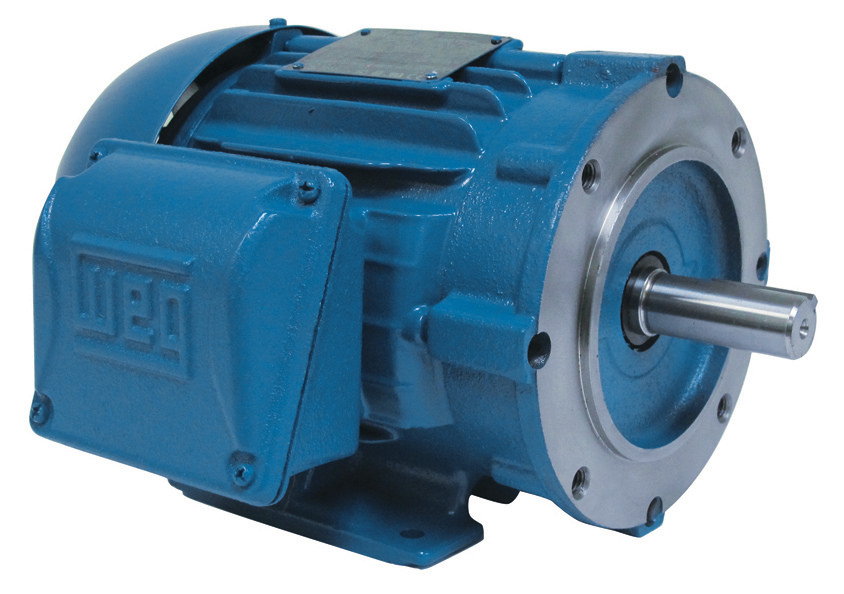

00518ET3H184TC-W22 MOTOR 5HP 4P 182/4TC WFF2 from WEG ELECTRIC CORP
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| kscdirect.com | WEG 00518ET3H184TC-W22 | 1 | 1 | 1 @ $622.06 | |
 vfds.com | 00518ET3H184TC-W22 | 1 | 1 | 1 @ $810.00 | |
 Raptor Supplies | AA4JDE | 1 | 1 | 1 @ $1159.73 | |
| Grainger | 12N892 | 1 | 1 | ||
| 00518ET3H184TC-W22 | 1 | Ships From Manufacturer | 1 | 1 @ $708.67 | |
| 00518ET3H184TC-W22-WEG | 1 | 1 | 1 @ $665.28 | ||
 MRO Supply | 1312207 | 1 | 1 | 1 @ $639.69 | |
| sustainablesupply.com | C1487777 | 1 | Add to Cart | 1 | 1 @ $940.42 |
| 00518ET3H184TC-W22 | 1 | 1 | 1 @ $607.50 | ||
| 00518ET3H184TC-W22 | 1 | 1 | 1 @ $739.56 | ||
 Walker Industrial | 00518ET3H184TC-W22 | 1 | 3 to 5 Days | 1 | 1 @ $607.50 |
| Airline Hydraulics | WEG 00518ET3H184TC-W22 | 1 | 1 | 1 @ $835.05 | |
 Zoro | G6884692 | 1 | 1 | 1 @ $607.50 | |
 Radwell | 00518ET3H184TC-W22 | 1 | 1 | ||
 National Supply Network | B873444 | 1 | -2 | 1 | 1 @ $1096.24 |
| Applied Industrial | 101520235 | 1 | 1 | ||
| motionindustries.com | 04701775 | 1 | -2 | 1 | 1 @ $1038.99 |
| 00518ET3H184TC-W22 | 1 | -2 | 1 | 1 @ $740.34 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
WEG 00518ET3H184TC-W22 W22 NEMA Premium Efficiency Ball Bearing Severe Duty and General Purpose Electric Motor, 5 HP, 3-Phase, 1755 rpm, 575 V, 60 Hz, Frame 182/4TC
Brand: WEG
Details
- Current Rating 5.16 A
- Ball bearings are supplied as standard
- Class "F" (?T = 80K) insulation for all frames
- Continuous flow insulation system with class "H" wire (364/5T and larger)
- NEMA ratings design "B"
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | ELECTRIC_MOTOR |
| Model | 1573186 |
| Part number | 00518ET3H184TC-W22 |
| Items per pack | 1 |
| Label | WEG |
| Manufacturer | WEG |
Catalog
| Feature | Current Rating 5.16 A |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 00518ET3H184TC-W22 |
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Manufacturer | WEG |
Weg 5 HP General Purpose Motor, 3-Phase, 1755 Nameplate RPM, Voltage 575, Frame 184TC - 00518ET3H184TC-W22
Brand: WEG
<p><b>Specifications: </b><ul><li>Item:-General Purpose Motor</li><li>Motor Application:-General Application</li><li>Motor Design:-3-Phase</li><li>Motor Enclosure Design:-Totally Enclosed Fan-Cooled</li><li>HP:-5</li><li>Nameplate RPM:-1755</li><li>Frame:-184TC</li><li>Voltage:-575</li><li>Hz:-60/50</li><li>Phase:-3</li><li>Full Load Amps:-5.16</li><li>Number of Speeds:-1</li><li>Mounting:-Rigid Base</li><li>Motor Thermal Protection:-None</li><li>Insulation Class:-F</li><li>Service Factor:-1.25</li><li>Bearings:-Ball</li><li>Frame Material:-Cast Iron</li><li>Max. Ambient Temp.:-40 Degrees C</li><li>Rotation:-CW/CCW</li><li>Shaft Dia.:-1-1/8"</li><li>Shaft Length:-2-3/4"</li><li>Length Less Shaft:-13-1/8"</li><li>Overall Length:-15-7/8"</li><li>Motor Shaft Design:-Keyed</li><li>RPM Range:-1701-1800</li><li>Standards:-UL, CSA, CE, NOM, NEMA Class 1, Div 2, Groups B, C & D</li><li>Duty:-Continuous</li><li>Nominal Efficiency:-89.5%</li><li>Warranty (Years):-3</li><li>RPM Group:-1701-1800</li><li>UNSPSC:-26101612</li></ul></p>
Details
- Item:-General Purpose Motor
- Motor Application:-General Application
- Motor Design:-3-Phase
- Motor Enclosure Design:-Totally Enclosed Fan-Cooled
- HP:-5
Listing
| Product group | Home Improvement |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | 00518ET3H184TC-W22 |
| Label | Weg |
| Manufacturer | Weg |
