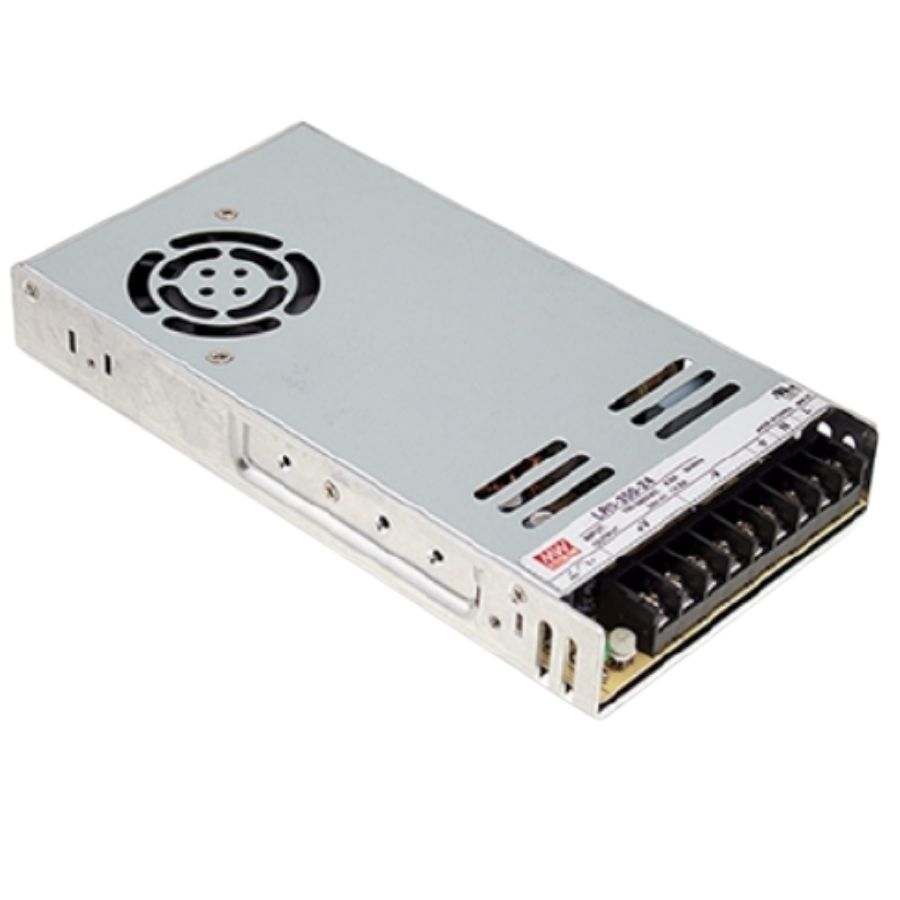

Mean Well Power Supply, Ac-Dc, 24V, 14.6A - LRS-350-24

"LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adoptingthe input of 115VAC or 230VAC (select byswitch)， the entire series provides an output voltage line of 3.3V, 4.2V,5V,12V,15V,24V, 36V and 48V.<br>In addition to the high efficiency up to89%， with the built-in long life fan LRS-350 can work under -25-+70℃ with full load. Delivering an extremely low no load power consumption (less than0.75W)， it allows the end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1. LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications. "

350.4W 24V 14.6A Single Output Switchable Power Supply 24 Volts @ 14.6 Amps

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

<b>Features:</b><br>Non-PFC, most economical models<br>Ultra compact and 1U low profile<br>300VAC input surge<br>No load power consumption: 0.2W~0.75W<br>5G vibration, 70¡æ operation<br>Operating altitude up to 5000 meters<br>Complete safety certificates: <br>IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL60950-1 and GB4943<br>

This item will ship LRS-350-24*1pcs,enjoy shopping and best wishes!

A reliable, fully tested power supply by Mean Well for high current amplifier boards, LED light strips, and other 12 VDC projects requiring less than 30A. UL recognized design.

Size: 1 Pack 350.4W 24V 14.6A Single Output Switchable Power Supply 24 Volts 14.6 Amps Features AC input range selectable by a switch Withstand 300 VAC surge input for 5 seconds No load power consumption 1U low profile High operating temperature, up to 70°C Protections: Short circuit / Overload / Over voltage / Over temperature Built-in cooling fan, ON-OFF control Compliance to UL 60950-1 Withstand 5G vibration test High efficiency, long life and high reliability LED indicator for power on 100% full load burn-in test 3 year warranty Applications Industrial automation machinery Industrial control system Mechanical and electrical equipment Electronic instruments, equipment or apparatus Related Products LRS-350-3.3 (3.3V 60A, 198W) Jameco P/N: 2219778 LRS-350-4.2 (4.2V 60A, 252W) Jameco P/N: 2219786 LRS-350-5 (5V 60A, 300W) Jameco P/N: 2219794 LRS-350-12 (12V 29A, 348W) Jameco P/N: 2219807 LRS-350-15 (15V 23.2A, 348W) Jameco P/N: 2219815 LRS-350-36 (36V 9.7A, 349.2W) Jameco P/N: 2219831 LRS-350-48 (48V 7.3A, 350.4W) Jameco P/N: 2219840 LRS-150 Series (150 Watt, Enclosed Switchable Single Output Power Supply) LRS-150F Series (150 Watt, Full Range Input Enclosed Switching Power Supply) LRS-200 Series (200 Watt, Enclosed Switchable Single Output Power Supply) Detailed Specifications: Primary Output Voltage (VDC): 24 Output Current (A): 14.6 Maximum Output Power (W): 350 Family: LRS-350 Input Voltage (VAC): 90 to 132, 180 to 264 Input Frequency: 47 to 63 Maximum Input Current (A): 6.8 Output Connector Type: Screw Terminal Block Number of Outputs: 1 Product Type: AC to DC Power Supply (more.).

MW Regulated Switching Power Supply (LRS-350-5) ASIN: B07DPP7SY2

2_Pack Available (Check SIZE: LRS-350-24:2_PACK)-CONDITION: 100% Brand New -DC VOLTAGE: 24V -CURRENT RANGE: 0~14.6A -RATED POWER: 350W -INPUT VOLTAGE RANGE: 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) -EFFICIENCY: 88% -PROTECTIONS: SHORT CIRCUIT / OVER LOAD / OVER VOLTAGE / OVER TEMPERATURE -WEIGHT:760g -DIMENSION: 215 * 115 * 30 mm -CASE MATERIAL: Metal case / Aluminum base -CERTIFICATE: UL/CB -WORKING TEMPERATURE: -25~70 CASE temperature>50 FAN ON, CASE temperature<40 FAN OFF

Authentic Taiwan LRS-350-24 350W 24V 14.6A meanwell power switch ultra-thin 3 years warranty

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

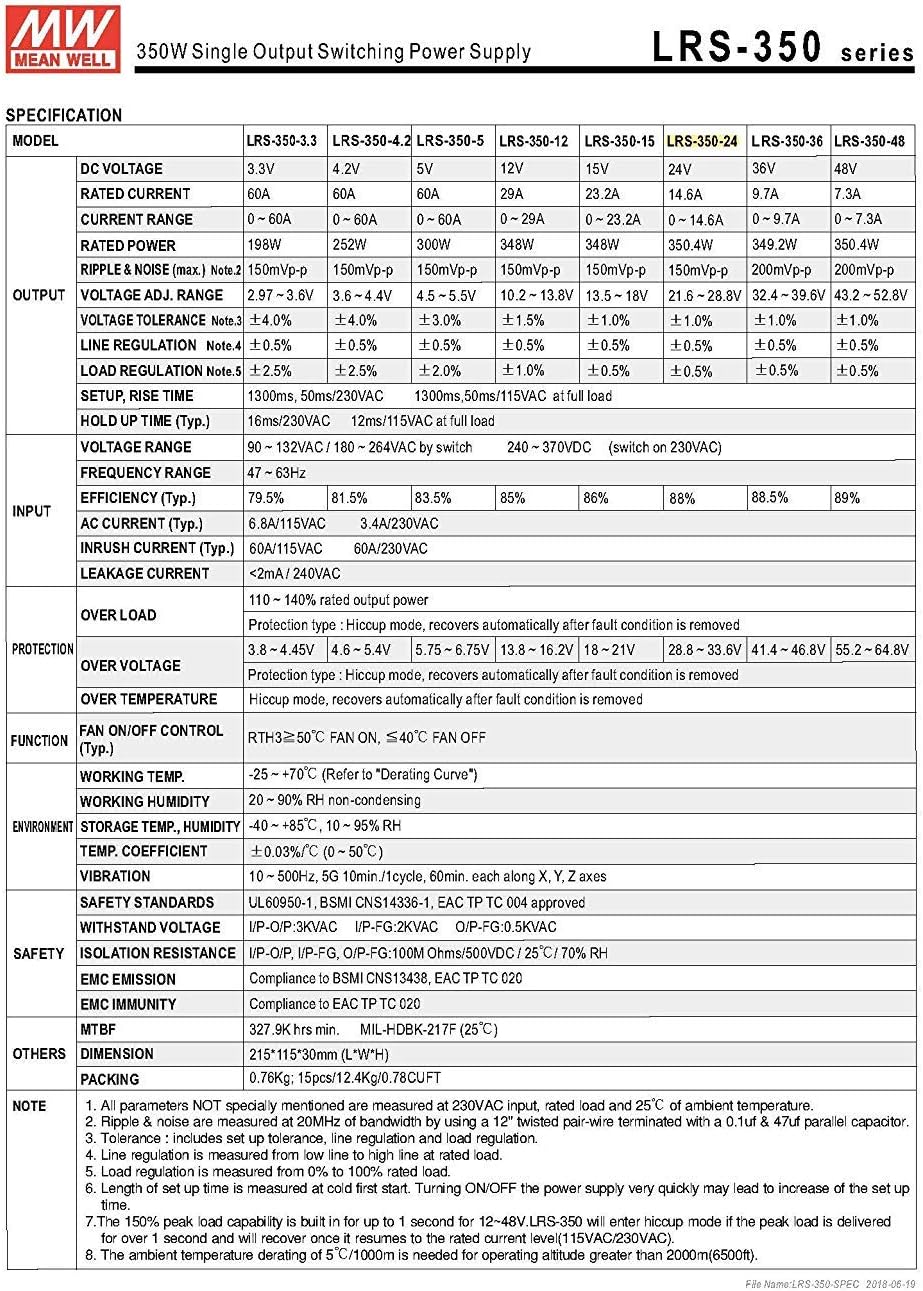

Model：LRS-350-24<br> Output DC Voltage:24V<br> Output Rated Current:14.6A<br> Output Current Range:0～14.6A<br> Output Rated Power:350.4W <br> Output Ripple And Noise:150mVp-p<br> Output Voltage Adjustment Range:21.6～28.8V<br> Output voltage accuracy:±1.0%<br> Output linearity adjustment rate:±0.5%<br> Load Regulation:±0.5%<br>

LRS-350-24
