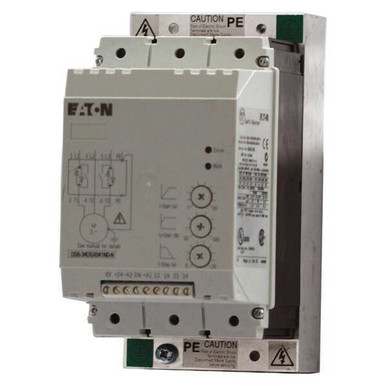

Eaton DS7 soft start controller, 22 second ramp, one start per hour, 300% current limit at 40?C, 22 A, 5 hp at 200 V, 7.5 hp at 230 V, 15 hp at 480 V, HFD3060 max breaker, 40 A Class RK5 max fuse

Fits in place of existing soft starters, wye-delta starters,or across-the-line NEMA and IEC starters. This controllerfeatures voltage ramp start method that providesvoltage ramp to the motor for constant torque increase.Soft stop allows controlled stopping of load when astop-time greater than the coast-to-stop time is desired.Reduces internal heating created by the power of dissipationand reduces internal power loss.<br /><br /> Item: Soft Start<br /> Input Voltage: 240 to 480VAC<br /> Output Current: 24A<br /> With Bypass / No Bypass: No Bypass<br /> HP @ 3 Phase - 240V: 5<br /> HP @ 3 Phase - 480V: 10<br /> Inputs/Outputs: 2 Relay Output<br /> Phase: 3<br /> Enclosure Rating: NEMA 1<br /> HP @ 3 Phase - 208V: 5<br /> Output Voltage: 240 to 480VAC<br /> Control Voltage: 120 to 240VAC<br /> Frequency: 50/60 Hz<br /> IP Rating: 20<br /> Ramp Time: 1 to 30 sec.<br /> Start Type: Reduced Voltage Starting, Torque Limiting on Start-Up<br /> Stop Time: 1 to 30 sec.<br /> Application: Constant and Variable Torque<br /> Protects: Motors and Critical Loads<br /> Includes: 2-Phase Control Soft Starter with FLA 24A<br /> Height: 5.90"<br /> Width: 1.77"<br /> Depth: 4.65"<br /> Starting Torque: 30% to 80% of Starting Torque Equal to Line Supply Voltage<br /> Display: LED (Power On and Error)<br /> Standards: UL, CE, CSA, CCC, IEC 60947
