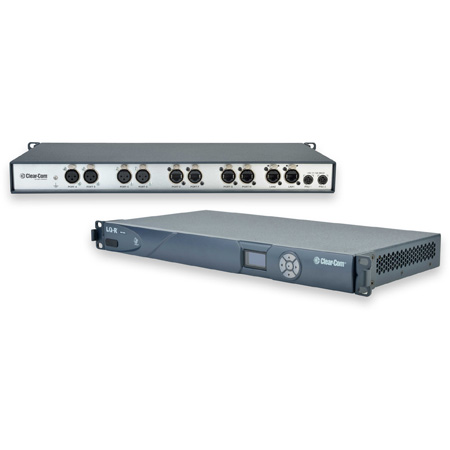

The Clear-Com <strong> LQ-R2W4-4W4 </strong> is a 1RU 8 Port Intercom over IP Interface Panel. LQ &reg; Series devices provide intercom connectivity for linking multiple systems together over existing IP networks. They extend intercom channels to remote locations while adding mobile and virtual clients through Agent-IC &reg; and Station-IC &trade; respectively. They also add SIP/VoIP telephony to existing intercom systems, and enable extra audio I/Os for both HelixNet &reg; and Eclipse &reg; HX systems. </p><p>LQ IP interfaces enable connection of 2-wire partyline, 4-wire or 4-wire with GPIO audio over LAN, WAN or Internet IP infrastructures. The LQ Series consists of compact LQ boxes and rack-mounted LQ-R panels, available in 2-, 4- or 8-port versions. The partyline ports are Clear-Com and RTS compatible. Two standalone partyline intercom circuits can easily be constructed by connecting two partyline ports. The 4-wire ports can interconnect with devices, such as the analog ports of any matrix intercom system, analog telephone circuits, two-way radio gateways and audio consoles. Each LQ device can support up to eight bi-directional lines that can be added to LQ channels. Alternatively, LQ devices support both IP and 4-wire intelligent connections back to an Eclipse-HX matrix providing panel or speed dialing to VoIP numbers or URLs.</p>

The LQ-R2W4-4W4 enables the connection of both partyline and 4-wire audio over LAN, WAN or Internet IP infrastructures in a 1RU panel. The partyline connections are compatible with Clear-Com and RTS Features: Available as a compact box or a 1RU panel 2-, 4- and 8-port IP interface devices Connect over LAN, WAN or Internet Adjustable bandwidth on a per port basis Uses low-latency OPUS codec Clear-Com and RTS 2-wire connectivity Eclipse HX connection via IVC-32-HX card over LAN, WAN, and Internet IP connections Can remotely connect to up to 8 IVC-32-HX ports per LQ device 2-wire powering, termination and auto-nulling 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels Up to 6 devices can be connected together Browser-based configuration software (PC, MAC, Tablet) 2-port devices powered via local 12V DC power supply or PoE 4- and 8-port devices powered via redundant 12V DC power supplies Rugged and lightweight Yellow OLED front panel menu display

Every home needs an electronics expert someone who can decide if it makes sense to buy the latest equipments If you are a gadget freak our Electronics catalog is your dream destination If youre still stuck at the basics our elaborate product specifications shall handhold you through the purchase Features. 2 4 and 8port IP interface devices. Connect over LAN WAN or Internet. Adjustable bandwidth on a per port basis. Uses lowlatency OPUS codec. ClearCom and RTS 2wire connectivity. Eclipse HX connection via IVC32HX card over LAN WAN and Internet IP connections. Can remotely connect to up to 8 IVC32HX ports per LQ device. 2wire powering termination and autonulling. 4wire ports support data and audio for ClearCom Eclipse and Drake 4000 panels. Up to 6 devices can be connected together. Browserbased configuration software PC MAC Tablet. 2port devices powered via local 12V DC power supply or PoE. 4 and 8port devices powered via redundant 12V DC power supplies. Rugged and lightweight. Yellow OLED front panel menu displaySpecifications. Resolution 12 bit. Sample Rate 24KHz. Frequency Response 100 12KHz. Input Gain 3dB to 3dB. Input Gain 12dB to 12dB. Bit Rates 16 32 48 64 128Kbps. Packet Size 5 10 20 40 60ms. NetworkLAN EtherCONRJ45 female. Partyline Audio IO 3 Pin XLR female. Type ClearCom RTS TW. Input 100240V 5060Hz 14A MAX. Operating Temperature 32F 104F 0C 40C. Storage Temperature 67F 158F 55C 70C. Weight 6 lbs
