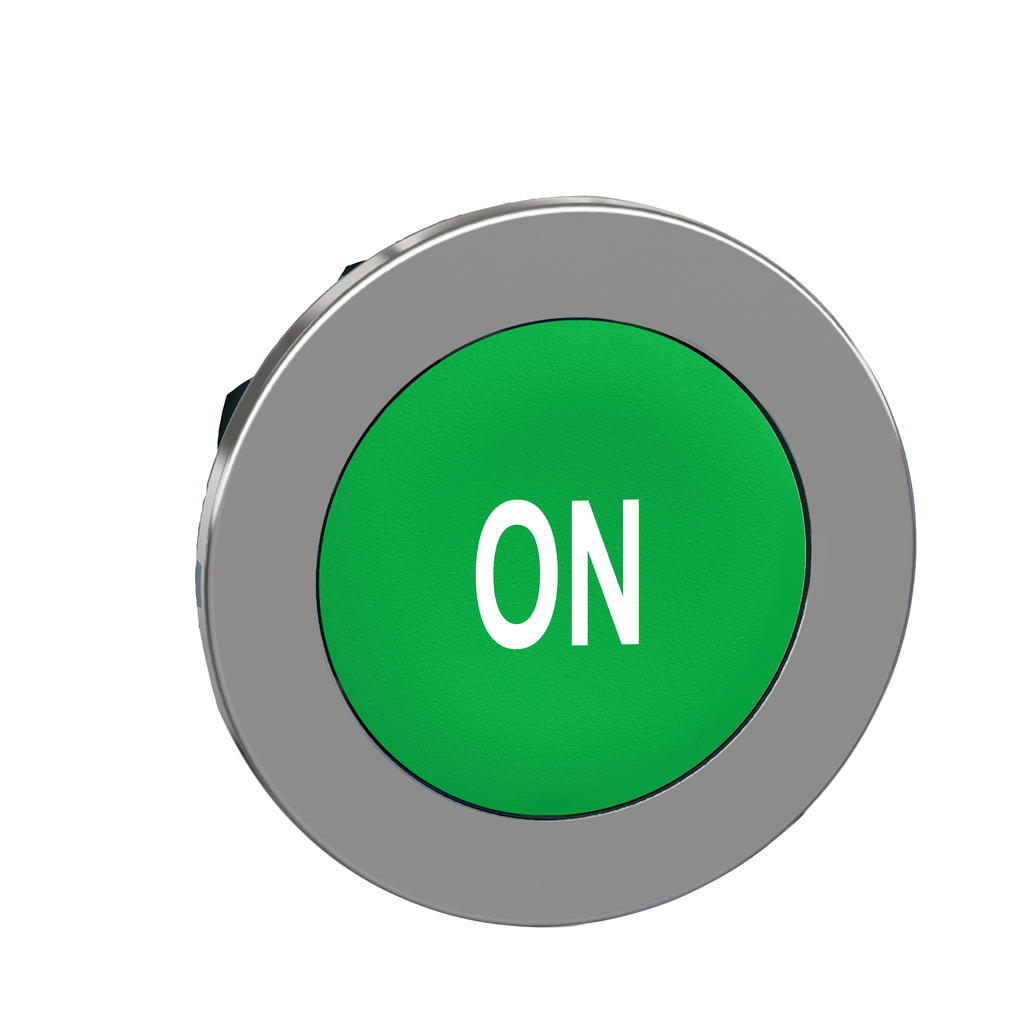

Head for non illuminated push button, Harmony XB4, flush mounted green flush caps pushbutton white marked "ON" | Mayer Electric

SQUARE D . SQDZB4FA341

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00, moq, multiple, tierMinQty11
Attribute01Harmony XB4
Attribute02chromium plated metal
Attribute03green flush, ON white)
Attribute0430.5 mm
Attribute05spring return
Attribute06head for non-illuminated push-button
Attribute07round
Attribute08ZB4F
Attribute09built-in-flush
Attribute1018 months
Attribute1110000000 cycles
Attribute12C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Attribute13, Attribute1536.6 mm
Attribute1431 mm
Attribute16basic element
Attribute17X
Attribute18ENVEOLI1808008EN
Attribute19, Attribute20, Attribute23, Attribute27Yes
Attribute21ENVPEP1808008EN
Attribute22Green Premium product
Attribute24Pro-active compliance (Product out of EU RoHS legal scope)
Attribute25Free of Substances of Very High Concern above the threshold
Attribute26Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute28UL Listed || CSA || CCC || EAC
Attribute29IK06 IEC 50102
Attribute30, Attribute31-40-70 ?C
Attribute32class I IEC 60536
Attribute33CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Attribute3430 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Attribute355 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Attribute36TH
Attribute37IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
AttributeKey00Sale Per Indivisible Quantity
AttributeKey01Range Of Product
AttributeKey02Bezel Material
AttributeKey03Operator Profile
AttributeKey04Mounting Diameter
AttributeKey05Type Of Operator
AttributeKey06Product Or Component Type
AttributeKey07Shape Of Signaling Unit Head
AttributeKey08Device Short Name
AttributeKey09Head Type
AttributeKey10Warranty
AttributeKey11Mechanical Durability
AttributeKey12Electrical Composition Code
AttributeKey13, width_AttribCad Overall Width
AttributeKey14, length_AttribCad Overall Depth
AttributeKey15, height_AttribCad Overall Height
AttributeKey16Device Presentation
AttributeKey17China Rohs Regulation
AttributeKey18Circularity Profile
AttributeKey19Rohs Exemption Information
AttributeKey20Mercury Free
AttributeKey21Environmental Disclosure
AttributeKey22Sustainable Offer Status
AttributeKey23Toxic Heavy Metal Free
AttributeKey24Eu Rohs Directive
AttributeKey25Reach Regulation
AttributeKey26California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey27Reach Free Of Svhc
AttributeKey28Product Certifications
AttributeKey29Ik Degree Of Protection
AttributeKey30Ambient Air Temperature For Operation
AttributeKey31Ambient Air Temperature For Storage
AttributeKey32Overvoltage Category
AttributeKey33Standards
AttributeKey34Shock Resistance
AttributeKey35Vibration Resistance
AttributeKey36Protective Treatment
AttributeKey37Ip Degree Of Protection
DimensionUnitmm
Extra Product NameHead for non illuminated push button, Harmony XB4, flush mounted green flush caps pushbutton white marked "ON" | Mayer Electric
UPC3606489581015
height, width36.6
jsonUrlData/Product/SQUARE-D-Head-for-non-illuminated-push-button-Harmony-XB4-flush-mounted-green-flush-caps-pushbutton-white-marked-ON-3606489581015
jsonUrlData237b28344-62fb-4dfe-b543-ade40063c39f
length31.0
MPN, SKUSQDZB4FA341
qtyInStock0
tierPrice116.55

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDZB4FA341111 @ $16.55
