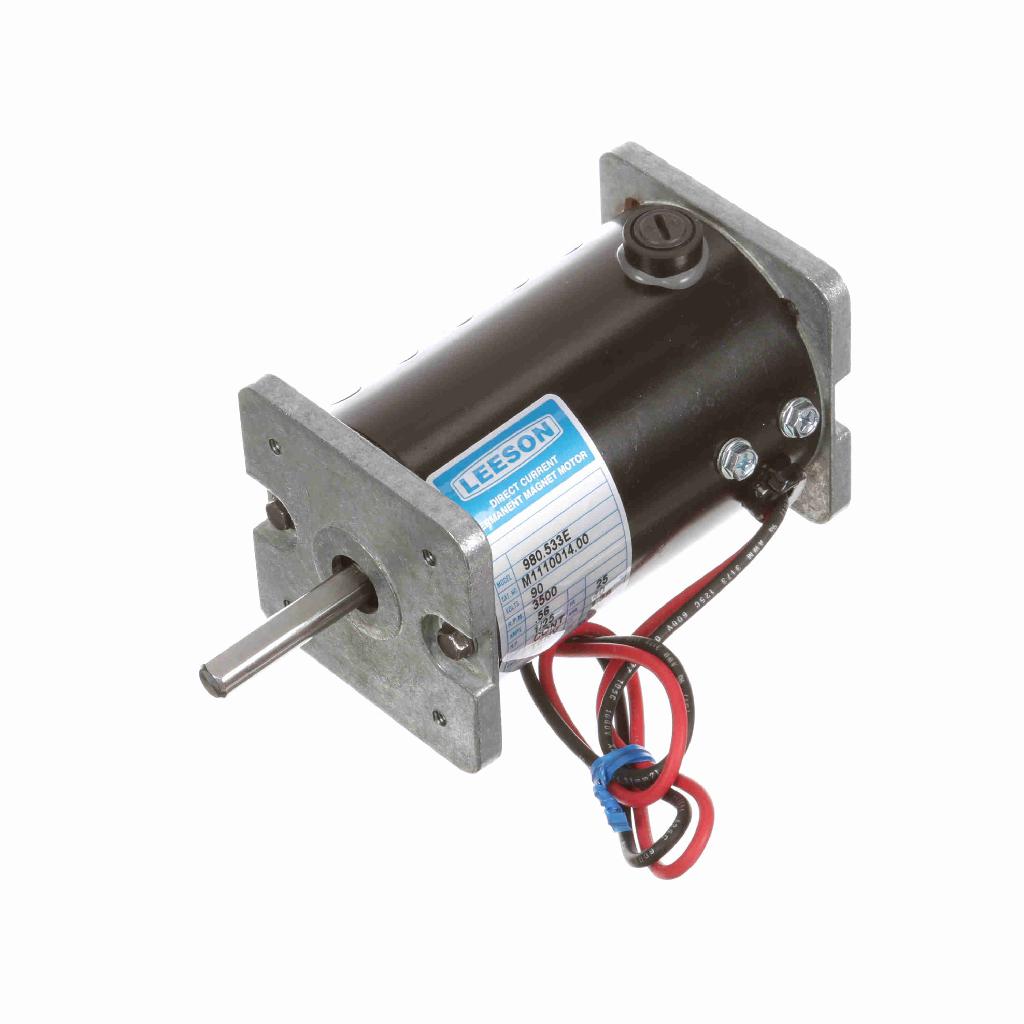

LEESON ELECTRIC . M1110014.00

1/25HP.3500RPM.25.TENV.90V.CONT.40C.1.3SF.SQ. FLANGE.DC SUB-FHP.980.533E

<p><ul><li>Compact, space saving design</li><li>Ball bearing construction</li><li>Long life brushes</li><li>External access to brushes allows for easy replacement further prolonging motor life</li><li>Conduit box standard on 31 and 34 frame models</li><li>Continuous duty with full wave un-filtered rectified SCR (thyristor) controls</li><li>Linear speed torque characteristics throughout the speed range</li><li>High starting torques</li><li>Reversible rotation</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Family:-Permanent Magnet </li><li> Motor Type:-Brushed </li><li> Horsepower:-1/25 hp </li><li> Full Load Efficiency:-59.50 % </li><li> DC Armature Voltage:-90 V </li><li> Base RPM:-3500 rpm </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> Duty / Condition Type:-Continuous Duty </li><li> NEMA / IEC Frame Size:-25 </li><li> Thermal Protection:-None </li><li> Field Full Load Current:-0.56 A </li><li> Shaft Diameter:-0.31 in </li><li> Shaft Rotation:-Reconn </li><li> Motor Length Less Shaft:-3.54 in </li><li> Overall Length (C-Dimension):-5.58 in </li><li> Insulation Class:-F </li><li> Mounting Type:-SQ Flange </li><li> Service Factor:-1.30 </li><li> Operating Temperature Range:-40 °C </li><li> Standards Met:-CE, CSA, UL Recognized </li><li> Drive End Bearing Size:-608-S </li><li> Opposite Drive End Bearing Size:-608-S </li><li> Weight:-4 lbs </li></ul></p>
