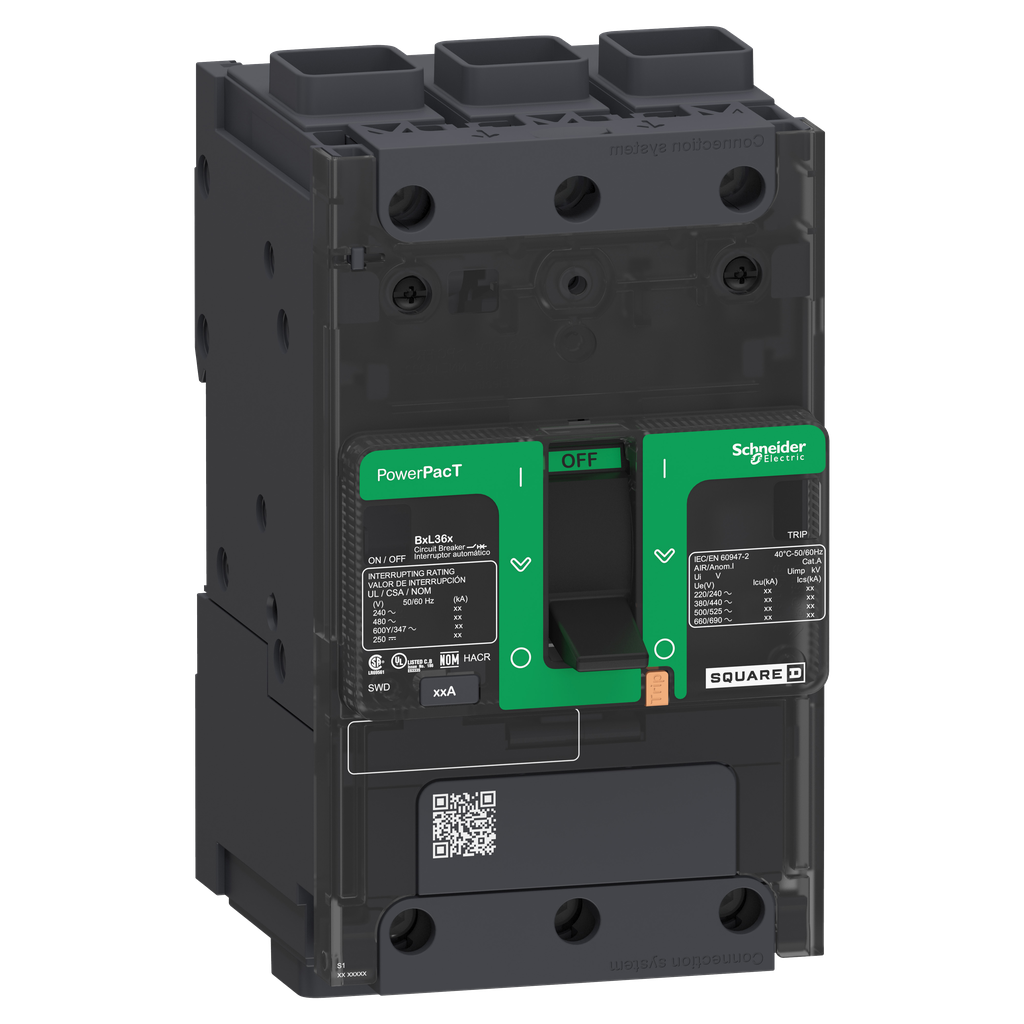

Circuit breaker, PowerPact B, 80A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80% | Mayer Electric

SQUARE D . SQDBJP36080

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00circuit breaker
Attribute01PowerPact B
Attribute02PowerPact
Attribute03distribution
Attribute04BJ 080
Attribute05clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
Attribute0650/60 Hz
Attribute07100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
Attribute08thermal-magnetic
Attribute09137 mm
Attribute1027 mm
Attribute11690 V AC 50/60 Hz UL 489
Attribute125-5 N.m 2.5-16 mm? (AWG 14...AWG 4) || 9-9 N.m 25-95 mm? (AWG 3...AWG 3/0)
Attribute13J
Attribute149
Attribute15presence of auxiliary contacts flag green)
Attribute161 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Attribute17Everlink lug load || terminal nut line
Attribute181.074 kg
Attribute198 kV IEC 60947-2
Attribute20toggle
Attribute2120 mm
Attribute22category A
Attribute2380-80 A
Attribute2480 %
Attribute25100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
Attribute26800 V IEC 60947-2
Attribute2720000 cycles IEC 947-1 Annex K ed 5.2
Attribute28yes IEC 60947-2
Attribute2910000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Attribute303P
Attribute31set of 1
Attribute32AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Attribute33Gray RAL 7016)
Attribute3481 mm
Attribute3580 mm
Attribute36, Attribute37, Attribute40Yes
Attribute38ENVPEP1610005EN
Attribute39Green Premium product
Attribute41Reference contains Substances of Very High Concern above the threshold
Attribute42DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute43Product out of China RoHS scope. Substance declaration for your information.
Attribute44Compliant
Attribute45Halogen free product
Attribute46IK07 IEC 62262
Attribute47-25-70 ?C
Attribute48NMX J-266 || NEMA AB1 || EN/IEC 60947-5-1 || EN/IEC 60947-2 || UL 489 || GB 14048.2 || CSA C22.2 No 5
Attribute49UL || IEC || CCC || EAC || CSA || NOM
Attribute50front cover IP40 IEC 60529
Attribute513 IEC 60947-1
Attribute52-50-85 ?C
Attribute53CE
AttributeKey00Product Or Component Type
AttributeKey01Product Name
AttributeKey02Range
AttributeKey03Device Application
AttributeKey04Device Short Name
AttributeKey05Mounting Mode
AttributeKey06Network Frequency
AttributeKey07[Ics] Rated Service Breaking Capacity
AttributeKey08Trip Unit Technology
AttributeKey09, height_AttribHeight
AttributeKey10Connection Pitch
AttributeKey11[Ue] Rated Operational Voltage
AttributeKey12Tightening Torque
AttributeKey13Breaking Capacity Code
AttributeKey149 Mm Pitches
AttributeKey15Local Signalling
AttributeKey16Number Of Slots
AttributeKey17Electrical Connection
AttributeKey18, Weight_AttribNet Weight
AttributeKey19[Uimp] Rated Impulse Withstand Voltage
AttributeKey20Control Type
AttributeKey21Wire Stripping Length
AttributeKey22Utilisation Category
AttributeKey23Line Rated Current
AttributeKey24Continuous Current Rating
AttributeKey25Breaking Capacity
AttributeKey26[Ui] Rated Insulation Voltage
AttributeKey27Mechanical Durability
AttributeKey28Suitability For Isolation
AttributeKey29Electrical Durability
AttributeKey30Poles Description
AttributeKey31Quantity Per Set
AttributeKey32Awg Gauge
AttributeKey33Color
AttributeKey34, width_AttribWidth
AttributeKey35, length_AttribDepth
AttributeKey36Rohs Exemption Information
AttributeKey37Mercury Free
AttributeKey38Environmental Disclosure
AttributeKey39Sustainable Offer Status
AttributeKey40Pvc Free
AttributeKey41Reach Regulation
AttributeKey42California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey43China Rohs Regulation
AttributeKey44Eu Rohs Directive
AttributeKey45Halogen Content Performance
AttributeKey46Ik Degree Of Protection
AttributeKey47Ambient Air Temperature For Operation
AttributeKey48Standards
AttributeKey49Product Certifications
AttributeKey50Ip Degree Of Protection
AttributeKey51Pollution Degree
AttributeKey52Ambient Air Temperature For Storage
AttributeKey53Quality Labels
DimensionUnitmm
Extra Product NameCircuit breaker, PowerPact B, 80A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80% | Mayer Electric
UPC, MPN, SKUSQDBJP36080
Weight1.074
WeightUnitkg
depth, length80.0
height137.0
jsonUrlData/Product/SQUARE-D-PowerPact-B-Circuit-Breaker-80A-3P-600Y-347V-AC-25kA-at-600Y-347-UL-EverLink-SQDBJP36080
jsonUrlData28879badb-a3dd-4e75-b0a1-ade40063e6f3
moq, multiple, tierMinQty11
qtyInStock0
tierPrice10.00
width81.0
